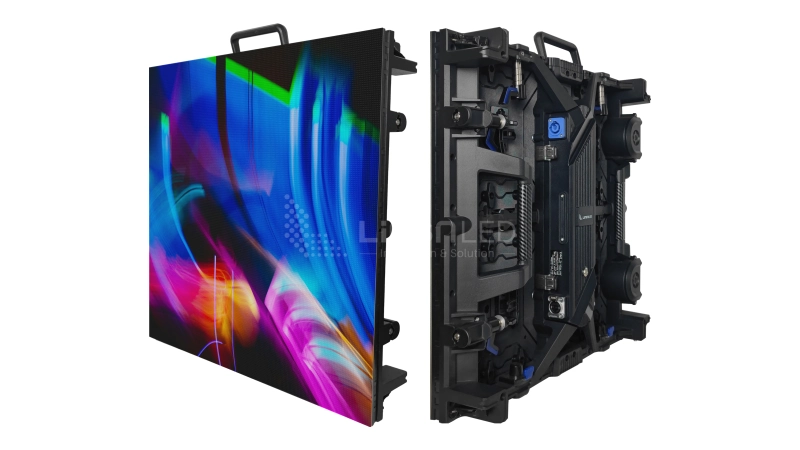

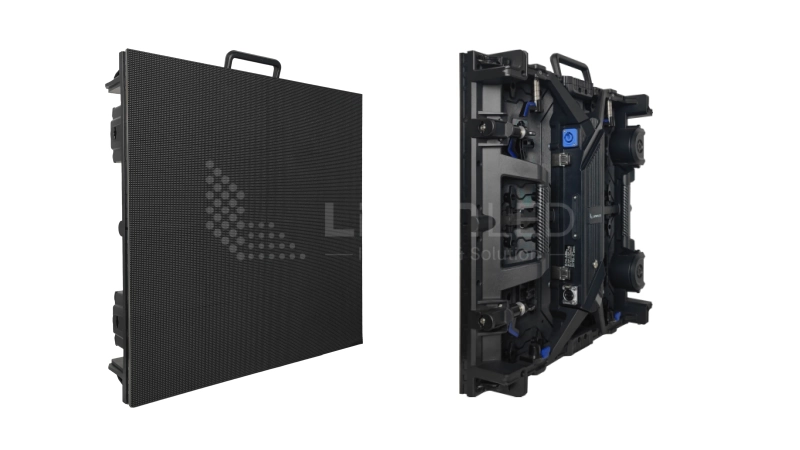

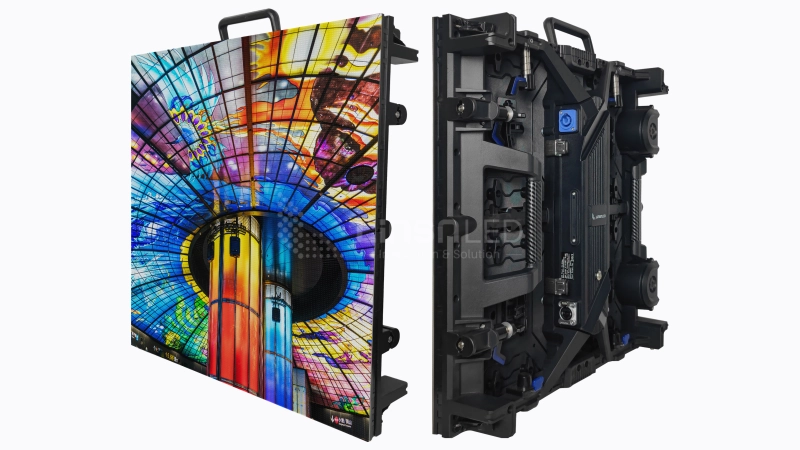

XR Stage Series
Rental Stage LED Display
- 500x500mm LED Cabinet
- 16-bit Color Depth for Virtual Production Studios
- Front or Rear Dual Maintenance
- Pixel Pitch Options: P2.315mm, P2.604mm
- 7680Hz Refresh Rate, 236Hz Frame Rate
- 3-Year Warranty with 5% Spare Parts Included
XR Series Stage LED Screen
The Linsn XR Series is purpose-built for the film, television, and virtual production industries, as well as extended reality (XR) applications. It delivers reliable performance through advanced, high-speed components like wide color gamut LEDs, high-grayscale IC drivers, and broadcast-standard processing.
Novastar VMP + MX40 Pro + A10s Pro
We adopt Novastar's XR solution, specifically designed for camera shooting environments, effectively eliminating black field and scan line issues. This system features cutting-edge image enhancement technology, creating scenes that closely mimic real-world environments. Powered by Novastar's VMP platform, it integrates design, monitoring, and management for a seamless control experience.

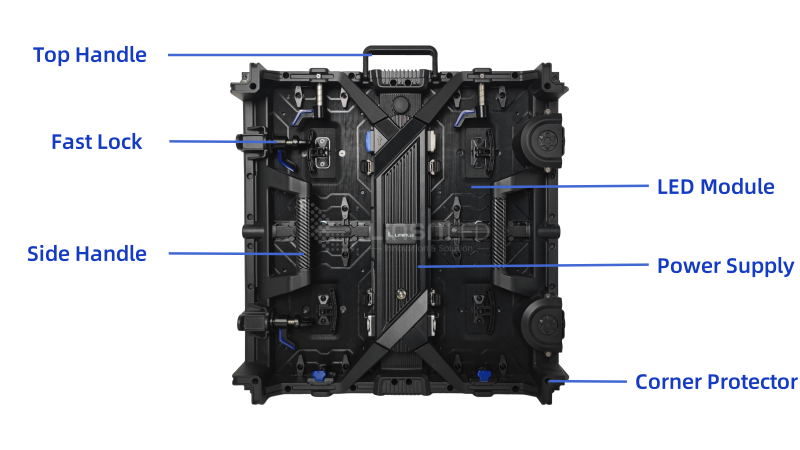

Innovative Structure
Linsn's top-tier design team incorporates core technologies into a unique design philosophy. The result is an innovative structure with sleek, modern lines that offer an exceptional user experience.

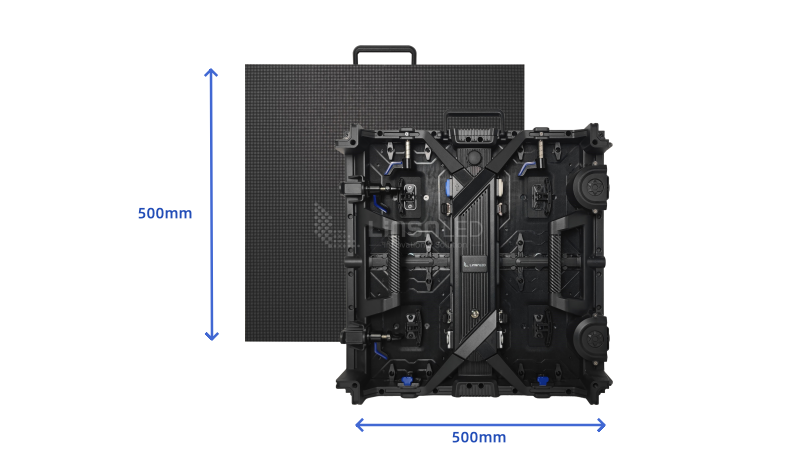

Lightweight and Thin Design
Weighing only 7.5kg per cabinet and 80mm thick, this LED screen is highly portable and stable. Its lightweight design makes transport, setup, and installation easy, significantly reducing labor costs.
Frame Multiplexing Technology
The XR Series supports frame multiplexing, allowing multiple video feeds to be reframed within the same time field. By utilizing the camera’s genlock phase offset, users can output multiple effects simultaneously, improving efficiency and cutting costs.

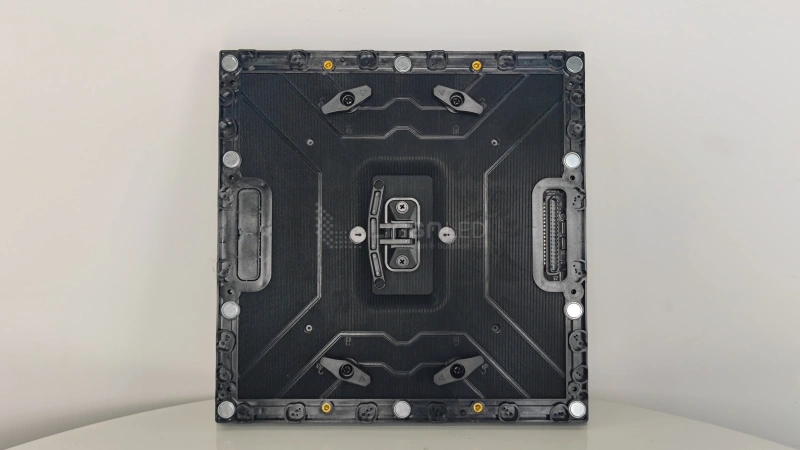

Dual Maintenance Access
The XR Stage Series Rental LED Display allows both front and rear access for maintenance. The magnetic LED panels can be removed in just 5 seconds using front-side tools, offering quick, convenient service while reducing labor costs.
Quick Installation
With an auto-locking system, the LED screen enables fast, secure installation with maximum pixel protection and safety.

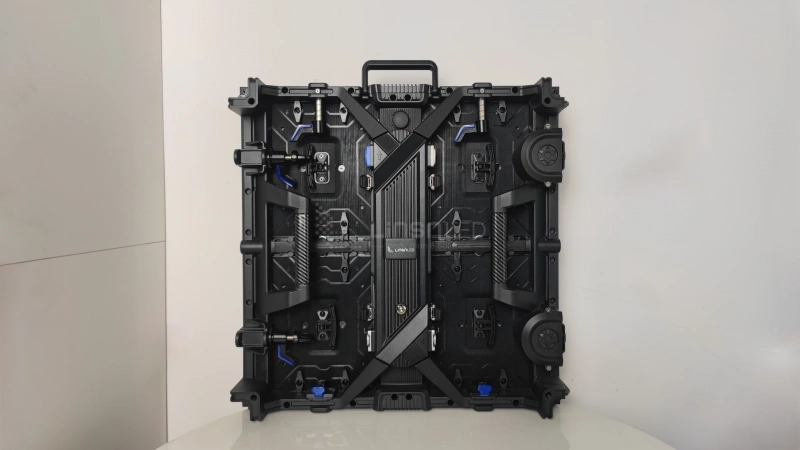

Intelligent Management

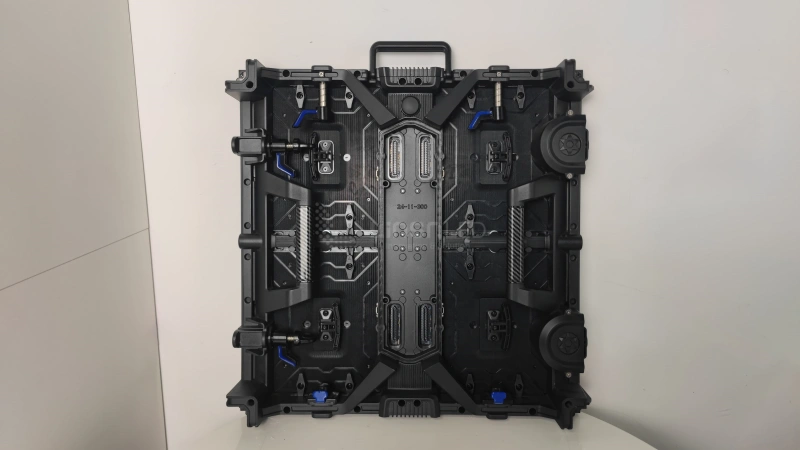

The back of each cabinet features an LED status display, providing real-time information on operating conditions, including temperature, voltage, screen lifespan, and DVI signal status.

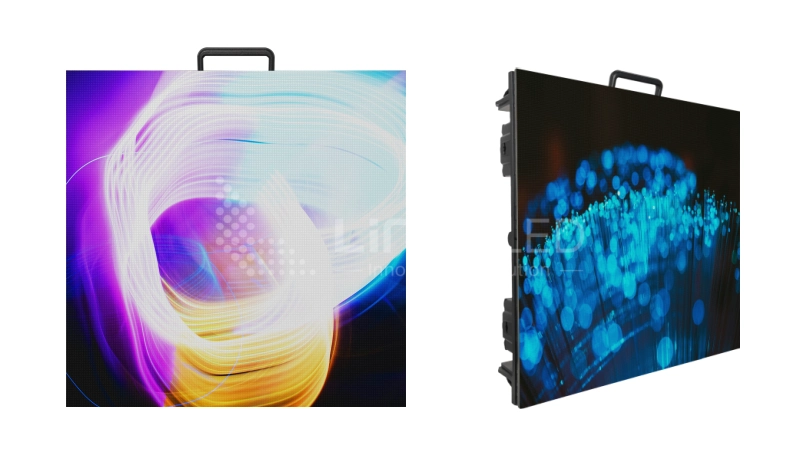

Seamless Visuals
The high-precision aluminum cabinet ensures seamless splicing for flawless image and video display, delivering a superior visual experience from any angle.
Versatile Installation Options
The cabinet supports multiple installation methods, including hanging, concave/convex, and stacking, offering flexibility for various setups.
Specification
| Pixel pitch | 2.315mm | 2.604mm |
| Pixels per cabinet | 216×216 (HxV) | 192×192 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |
| Brightness | ≥1000 nits: | |
| Module size | 250*250mm | |
| Module resolution | 108*108dots | 96*96dots |
| Refresh rate | 7680Hz | |
| Hor. vicewing angle | 140° +/-5° (@50% brightness) | |
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |
| Brightness uniformity | > 98% | |
| Dimming | 0-100% | |
| Grey Level | 16 bits | |
| Avg Power consumption | 350 W/㎡ | 320 W/m” |
| Max Power consumption | 680 W/㎡ | 640 W/m2 |
| Operation power voltage | 100-240V / 50-60Hz | |
| Operational temperature | -10℃ to +40℃ / 14℉ to 104℉ | |
| Operational humidity | 10-80% | |
| IP rating | IP54 for Indoor | |
| Dimensions | 500 x 500 x 80 mm (WxHxD)/19.6x 19.6x 3.14 inch (WxHxD) | |
| Weight / Tile | 7.5kg/ 16.53 Ibs | |
| Serviceability | Front and back service | |
| Certifications | CE, FCC, ULRoHs | |
| Warranty | 3 Years standard product warranty | |
