Shelf LED Display
- Ultra-slim design and lightweight
- Various connection methods
- Versatile installation options
- Multiple linkage capabilities
- Simple installation and mobility
- 3-year warranty with 5% spare parts
Overview
The Smart LED Shelf Display is a sleek advertising screen designed to deliver impactful and creative visual marketing. It allows content uploads via USB, Wi-Fi, 4G, or a network connection. You can connect multiple Smart Shelf LED Price Tags to create a larger display or partition screens for multiple video promotions. Its lightweight design enables easy mobility, while its visibility ensures it captures attention from a distance—making it an essential asset for businesses seeking high visual impact.
Features
Ultra-Slim and Lightweight: At just 22mm thick, the thinnest in the market, these displays are easy to install and transport.
Versatile Installation Options: Supports various modes, including stand and wall-mounted setups.
User-Friendly Operation: Plug-and-play functionality for simple management.
Flexible Linkage Modes: Includes single display, cascaded applications, and creative configurations.
Multiple Connection Methods: USB, Wi-Fi, HDMI, and cable connections, with quick management through mobile phones and PCs.
Remote Publishing: LAN integrated and internet-based publishing for easy content updates.
Quick Calibration: Calibration data is saved on modules, with the ability to restore factory settings in just 5 seconds.
Versatile Installation Options: Supports various modes, including stand and wall-mounted setups.
User-Friendly Operation: Plug-and-play functionality for simple management.
Flexible Linkage Modes: Includes single display, cascaded applications, and creative configurations.
Multiple Connection Methods: USB, Wi-Fi, HDMI, and cable connections, with quick management through mobile phones and PCs.
Remote Publishing: LAN integrated and internet-based publishing for easy content updates.
Quick Calibration: Calibration data is saved on modules, with the ability to restore factory settings in just 5 seconds.
Super Thin and Lightweight
The Linsn LED Shelf Display features an incredibly slim profile and lightweight design, easing installation and transportation while minimizing shelf burden. With a thickness of only 2cm, it takes up minimal space and is straightforward to install. The structure and quality materials result in a weight of just 835g per unit.
Size

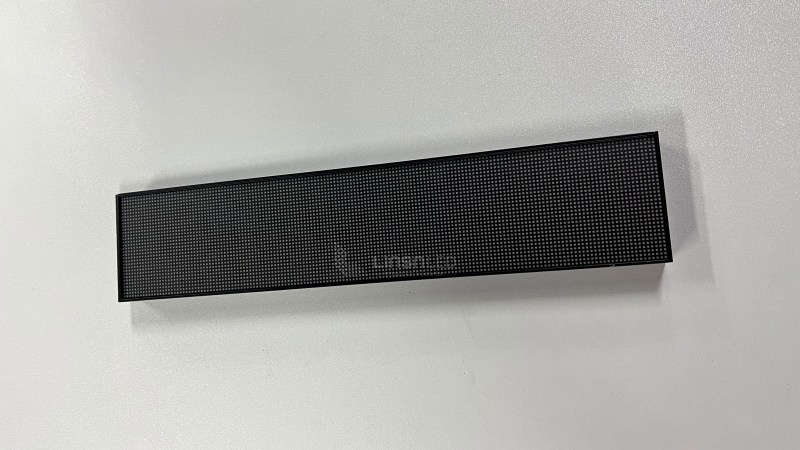

With Frame: 303mm x 64mm x 21mm
Display Area: 300mm x 60mm x 21mm (Refer to front and rear views for a 300mm length.)
Display Area: 300mm x 60mm x 21mm (Refer to front and rear views for a 300mm length.)
LED Module
The shelf LED display module employs GOB technology for an exceptional visual experience.
Available sizes include: 150x60mm, 300x120mm, 200x50mm, 200x150mm, 200x100mm, 128x128mm, 128x64mm.
Available sizes include: 150x60mm, 300x120mm, 200x50mm, 200x150mm, 200x100mm, 128x128mm, 128x64mm.
Product Makeup
Aluminum Alloy Frame: Constructed from a single, straight long frame connected to an aluminum plate on the side for perfect display flatness.
GOB Technology on Modules: Provides enhanced protection against touch, impact, and water spray.
GOB Technology on Modules: Provides enhanced protection against touch, impact, and water spray.
GOB Technology for High Protection
The TOP-GOB process involves surface coating and fully sealing the PCB board with epoxy resin, enhancing protection against physical damage. It offers features like anti-fog, dust-proofing, easy cleaning, abrasion resistance, damp-proofing, anti-collision, antistatic properties, oil pollution resistance, and oxidation protection.
Product Videos
Product Images
Specification
| Optical Parameter | Pixel Pitch (mm) | P1.2mm | P1.5mm | P1.875mm | P1.5625mm | P2mm |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | |
| Brightness (cd/sq.m.) | 800 | 800 | 800 | 800 | 800 | |
| Refresh Rate (Hz) | ＞3840 | ＞3840 | ＞3840 | ＞3840 | ＞3840 | |
| Optimized Viewing Distance (m) | 1~10 | 1~10 | 1~10 | 1~10 | 1~10 | |
|
Electrical Parameter |
Input Voltage | AC110V or AC220V±10%50/60Hz | ||||
| Input Interface | Ethernet / USB / Wi-Fi | |||||
|
Structure Parameter
|
Module Size in Pixel (W×H) | 125×50 | 100×40 | 80×32 | 128×32 | 64×32 |
| Module Size in mm (W×H) | 150x60mm/300x120mm | |||||
| IP Rating | IP 40 | |||||
| Maintenance | Rear | |||||
|
Operation Parameter |
Operating Temperature/ Humidity (℃/RH) | -10℃~40℃/10~90RH% | ||||
| Certification | CCC / CE / ETL / FCC | |||||
Send Us Message
If you have any LED display projects or technical problems regarding our LED display products. Please send us a message, we will reply to you in 24 hours.
ATTENTION: lf you bought LED Display & LED Module from other suppliers, Please get help from them directly.
