NovaStar VNNOX is next-generation cloud platform for LED displays. It creates a secure, efficient, and autonomous management ecosystem. This boosts the value of LED displays.
VNNOX is supported by over 30 invention patents. NovaStar continuously develops technology for cloud-based display services, tailored to customer needs. For example, the patent “LED Display Terminal Management System and Method” addresses the shortcomings of existing technologies, providing a new system and method for managing LED display terminals.
Catalogs:
2. Three Services Introduction
2.1 VNNOX AD
2.2 VNNOX Standard (VNNOX Media)
2.3 VNNOX Care
2.4 VNNOX AD vs. VNNOX Standard
3. VNNOX Cloud Solutions
3.1 Traffic Guidance Solution
3.2 Outdoor Display Solution
3.3 Advertising Display Solution
3.4 Intelligent Community Solution
5. VNNOX Tutorial
5.1 VNNOX Registration
5.2 VNNOX Login
5.3 VNNOX Standard Solution Creation
5.4 VNNOX AD Solution Creation
1. VNNOX Cloud Platform
With the rapid advancement of technology and the economy, the use of displays has become widespread and their numbers are skyrocketing. Managing each display manually is time-consuming and labor-intensive. The challenge of efficiently managing large numbers of displays has long troubled managers and puzzled LED industry professionals. Many have had to work overtime, rushing to update content on-site, often sacrificing their rest and leisure.
To address this industry pain point, NovaStar introduce the latest generation of professional LED display cloud publishing service platform—VNNOX. VNNOX enables networked LED display management, creating a secure, efficient, and autonomous ecosystem that enhances the value of displays and ushers in the era of cloud management for LED media.
VNNOX is like the smart “brain” of LED displays, allowing centralized control and remote management of all displays, so you can manage them without leaving your home.
Built on cutting-edge cloud technology, VNNOX offers LED synchronous, asynchronous, and remote publishing management. It empowers you with the ability to manage displays from anywhere, giving you the control to make strategic decisions instantly, without the need to be on-site. Whether you have one or a hundred displays, VNNOX enables you to manage them all with ease, restoring true management control to your hands.
2. Three Services Introduction
VNNOX offers three specialized services to to meet diverse needs in LED display management: VNNOX AD, VNNOX Standard (VNNOX Media), and VNNOX Care.
2.1 VNNOX AD
2.1.1 Brief Introduction
VNNOX AD is a specialized service tailored for remote management and control of LED display content, specifically designed for the media industry. It offers real-time remote control of screens, the ability to pre-schedule content, and features like emergency broadcasts, all designed to meet the unique needs of media clients.
This platform uses a resource grouping system to ensure clear responsibility and data segregation. With a robust media review process, it enhances the security and reliability of content distribution.
2.1.2 Features
Multi-Device Accessibility
VNNOX AD supports various devices such as Taurus multimedia players and VPlayer synchronous players, offering flexibility in how content is managed and displayed.
Smart Content Delivery
Programs can be uploaded and scheduled for remote playback over the internet, with content downloaded and played automatically according to the set schedule.
Customizable Scheduling
The platform allows for detailed scheduling options, including default content for unscheduled times, periodic and scheduled playback, and emergency notifications.
Remote Control Capabilities
Manage screen settings from anywhere via the internet, including tasks like rebooting players, adjusting screen status, controlling volume and brightness, and switching video sources.
Comprehensive Playback Logs
Automatically generated logs provide detailed insights into the playback history and screen performance.
Diverse Templates and Tools
A range of customizable templates and a visual content editor are available, enabling easy creation and management of display layouts.
Flexible Resource Management
Users can create and manage groups for media, playlists, programs, and players, enabling clear responsibility and organized data management.
Detailed Permission Settings
Granular control over user roles and permissions ensures that only authorized personnel can access and manage specific features and content.
2.1.3 Functions
- Program production, publishing, classification
- Player control and management
- Template management
- License management
- Media approval function
- System session timeout
- Remote Control
2.2 VNNOX Standard (VNNOX Media)
2.2.1 Brief Introduction
The VNNOX Standard is a versatile service designed for remote management of content and player control across LED displays, LCD screens, and LCD controller boards. With its streamlined interface and user-friendly features, it simplifies content creation and rapid deployment, making it ideal for various settings like government offices, corporate environments, exhibitions, hotels, and shopping malls.
VNNOX Standard offers a visual, drag-and-drop content editing process, enabling users to control screens remotely in real-time or according to preset schedules. This service eliminates the constraints of time and location, providing an all-in-one solution for creating, publishing, and managing display content from anywhere.
2.2.2 Features
Multi-Device Compatibility
Supports a wide range of terminal devices, including Taurus multimedia players, Taurus Ultra series LED control processors, and VNNOX players, offering flexibility in content management.
Flexible Online Media Resources
An online media library allows users to access and utilize media files anytime, anywhere, ensuring a seamless content creation process.
Visual Content Scheduling
The visual editing interface ensures a user-friendly experience, where the design and final output are identical, allowing for intuitive content scheduling and management.
Diverse Content Options
Supports various media types, including text, animated fonts, videos, weather updates, images, documents, web pages, RSS feeds, and streaming media, providing a wide range of content possibilities.
Smart Publishing
Programs can be published to players over the internet, and once downloaded, they play according to the scheduled timeline without any manual intervention.
Remote Player Control
Enables real-time or scheduled remote control of displays, including tasks like restarting players, adjusting screen status, volume, brightness, and switching video sources.
Comprehensive Playback Logs
Automatically generated logs offer detailed statistics and insights into display performance and playback history, ensuring transparency and accountability.
Custom Resource Group Management
Allows for the creation and management of custom groups for media, programs, and players, ensuring organized resource management and clear responsibility.
Detailed Permission Settings
Offers granular control over user roles and permissions, allowing for flexible configuration based on specific operational needs, ensuring secure and efficient management.
2.2.3 Functions
- Program production and release
- Play plan production and release
- Player control
- Log management
2.3 VNNOX Care
2.3.1 Brief Introduction
VNNOX Care is a specialized platform designed for LED display maintenance, offering robust tools for data visualization, smart information management, and remote monitoring. Tailored for the LED industry, it helps users achieve digital transformation by enhancing service quality, reducing costs, and adding value.
2.3.2 Features
Comprehensive Data Overview
Access all LED display information in one place, providing a clear snapshot of performance and status.
Accurate Fault Diagnosis: Receive instant alerts within a minute for any issues, allowing for prompt maintenance.
Critical Information Visibility
Important data is highlighted for efficient management.
Ease of Use
No additional costs or equipment are needed, making it user-friendly.
Quick Access
VNNOX Care allows users to upload and retrieve configuration files with a single click, minimizing setup delays.
Secure and Stable
The platform incorporates robust security measures to maintain safe and reliable screen operation.
2.3.3 Functions
- Condition Monitoring
- Cloud Backup
- Operation History
- Information Management
- All-round security protection
2.4 VNNOX AD vs. VNNOX Standard
Supported Media Types
| Features | VNNOX AD | VNNOX Standard |
| Image | JPG, PNG, ICO, JPEG, BMP, GIF | JPG, PNG, ICO, JPEG, BMP, GIF |
| Video | MP4, AVI, RMVB, MOV, FLV, MKV, WMV | MP4, AVI, RMVB, MOV, FLV, MKV, WMV |
| Document | Word, Excel, PPT, PDF | Word, Excel, PPT, PDF |
| Scrolling text | √ | √ |
| Streaming media | √ | √ |
| Web page | √ | √ |
| Dynamic data source (RSS) | √ | √ |
| Other media widgets | Analog clock Digital clock Text Weather Calendar Window | Analog clock Digital clock Text Weather Calendar Window |
| Online preview of media | √ | √ |
| Audio | MP3 | MP3 |
| Cloud backup of media files | √ | √ |
| Cut-to-display media | √ | × |
Solution Scheduling
| Features | VNNOX AD | VNNOX Standard |
| Custom media playback order and playback duration | √ | √ |
| Playback effect settings | √ | √ |
| Custom times of playback | √ | √ |
| Playlist playback | √ | √ |
| Solution insertion | √ | × |
| Non-scheduled content | √ | × |
| Location targeting | √ | × |
| Emergency insertion | √ | × |
| Background music | √ | × |
| Custom solution playback time | √ | √ |
| Multi-window (multi-layer) playback | √ | √ |
| Independent solution update on each layer | √ | × |
| Media validity settings | √ | × |
| Synchronous playback | √ | √ |
| Automatic non-adjacent sorting of playlist | √ | × |
| Collaborative ad scheduling | √ | × |
| Sub-playlists | √ | × |
| Import of list presets and automatic generation of playlists | √ | × |
Remote Control
| Features | VNNOX AD | VNNOX Standard |
| Screen online status monitoring | √ | √ |
| Terminal playback monitoring | √ | √ |
| Terminal power control (turn off screens) | √ | √ |
| Screen brightness control | √ | √ |
| Device volume control | √ | √ |
| Black screen settings in an emergency | √ | √ |
| Video source settings | √ | √ |
| Terminal restart | √ | √ |
| Terminal data usage monitoring | √ | √ |
| Terminal storage cleanup | √ | √ |
| Terminal location display | √ | √ |
| Terminal time synchronization and synchronous playback (Time synhcronization via Internet & LAN) | √ | √ |
| GPS time synchronization | × | √ |
| Remote management of terminal apps | × | √ |
| Terminal time zone and time settings | √ | √ |
| Periodical control plan settings | √ | √ |
| Accessible by mobile phone and tablet | √ | √ |
Remote Monitoring
| Features | VNNOX AD | VNNOX Standard |
| Real-time monitoring of screen conditions | √ | √ |
System Logs and Security
| Features | VNNOX AD | VNNOX Standard |
| Solution play logs | √ | √ |
| Remote control logs | √ | √ |
| Custom play log properties | √ | × |
| Media approval | √ | √ |
Service Management \ System Permission Settings
| Features | VNNOX AD | VNNOX Standard |
| Player group management | √ | √ |
| Sub-user accounts | √ | √ |
| Custom sub-user permissions | √ | √ |
| Workgroup creation | √ | √ |
| Custom system information (OEM) | √ | √ |
| Supported display languages | Chinese, English, Japanese, French, Spanish | Chinese, English, Japanese, French, Spanish |
3. VNNOX Cloud Solutions
3.1 Traffic Guidance Solution
VNNOX Cloud’s Traffic Guidance Solution is designed for the stable display and monitoring of traffic screens, making it ideal for variable message signs on highways, urban guidance screens, and parking guidance systems. This solution efficiently handles the complex requirements of traffic screen integration, offering safety, reliability, and scalability to meet the demands of smart traffic information systems.
3.2 Outdoor Display Solution
VNNOX offers a comprehensive cloud-based solution tailored for LED advertising media, covering everything from planning and construction to content playback and maintenance. This solution allows for remote cluster management of LED screens, equipment monitoring, and intelligent operations, streamlining the entire process of content creation, scheduling, approval, publishing, and playback. With advanced features like data analytics and custom brand promotion, VNNOX helps advertisers maximize value and elevate brand presence.
3.3 Advertising Display Solution
As the commercial and consumer environments rapidly evolve, the demand for digital, networked, and information-rich multimedia advertising machines has surged. These machines, capable of displaying images, text, videos, and plugins like weather and exchange rates, have become a significant trend in the media market. Widely used in subways, bus stations, airports, shopping malls, and more, VNNOX’s Screen Spirit platform extends its functionality to both LCD and LED advertising machines. It supports features such as multi-screen display, screen splicing, cluster publishing, and remote monitoring, significantly enhancing the value of display screens.
3.4 Intelligent Community Solution
Community LED screens serve as a direct communication channel with the public, offering a trusted and authoritative medium. These screens provide real-time updates on weather, emergency alerts, news, and community announcements, while also serving as a platform for government and civic communication. VNNOX’s Smart LED Cloud Service allows for the remote control and management of screen content within communities, offering easy updates and secure, controlled content playback. This solution supports the creation of harmonious and safe smart communities by providing a reliable platform for public information dissemination.
4. VNNOX Player Applications
For Individual Users:
VNNOX offers a seamless experience through its web and mobile app platforms, creating a unified product ecosystem that simplifies content management and playback.
For Enterprise Users:
By addressing the challenges of remote display management, VNNOX significantly enhances operational efficiency and reduces costs for businesses.
For Media Industry Users:
Designed to support the modernization of large display screens, VNNOX empowers the media industry by unlocking new avenues for commercial advertising and communication.
For Solution Providers:
With standard API/SDK offerings, VNNOX allows for easy development and integration, facilitating the creation of customized solutions.
5. VNNOX Tutorial
5.1 VNNOX Registration
Step 1: Visit www.en.vnnox.com and click Sign Up at the top right of the page.
Step 2: Select a server node and click OK.
Step 3: Fill in your account information and click Next.
Step 4: Click Submit.

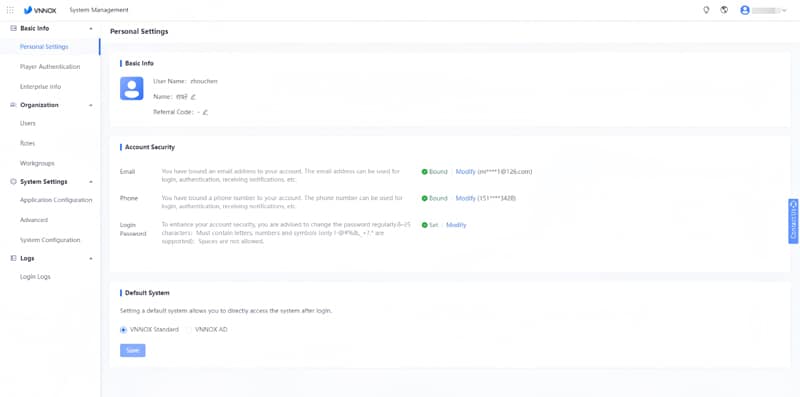

5.2 VNNOX Login
Step 1: Visit www.en.vnnox.com and click Log In.
Step 2: Select a server node and click OK.
Step 3: Enter your account name and password.
Step 4: Click Log In to access the homepage of the cloud platform.
Step 5: At the top left, click and select an application to access its homepage.

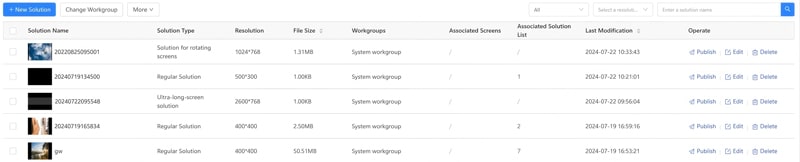

5.3 VNNOX Standard Solution Creation
Step 1: Click New Solution and select a solution type.
Note:
Solution types include regular solution, ultra-long-screen solution, splicing screen solution, and rotating screen solution.
The rotating screen solution is displayed only when the user account has permission.
Step 2: Specify a solution name and resolution, select associated solutions (optional), and click OK. (Splicing screen solutions also require row and column settings.)
Step 3: Specify a name and resolution for the solution and click OK.
5.4 VNNOX AD Solution Creation
Step 1: Choose
> Media Management > Solution.
Step 2: Click New. Enter a name and specify a category(ies) for the solution, and then click Next.
Step 3: Select a frame template and click OK to access the Solution Settings tab page.
Step 4: Do any of the following to create a schedule.
Click Create.
Click a cell in the timetable and click
.
Step 5: Select a playlist from the Playlist tab page of the Create dialog box.
Step 6: Select the Play plan tab to set a playback timeslot and recurrence interval.
Step 7: Select the Option tab to set the display color of the schedule.
Step 8: After the configuration, click OK. The schedule will be graphically displayed in the timetable.
5.5 More VNNOX Operation Tutorial
VNNOX Operation Guides
6. VNNOX Software and User Manual Download
To fully harness the power and versatility of VNNOX solutions, our LED Screen Cloud Platform is your go-to resource for accessing all the latest NovaStar software and user manuals.
We invite you to visit NovaStar Software Download to explore and download the full range of NovaStar software, user manuals, and other valuable resources.
7. Conclusion
NovaStar VNNOX represents a comprehensive and powerful platform designed to meet the diverse needs of LED display users across various industries. Whether you’re managing traffic systems, outdoor advertising screens, or community displays, VNNOX provides the tools and flexibility needed to operate efficiently and effectively. From remote management and monitoring to intelligent content distribution, VNNOX offers a seamless solution that drives value, reduces costs, and enhances user experience.
