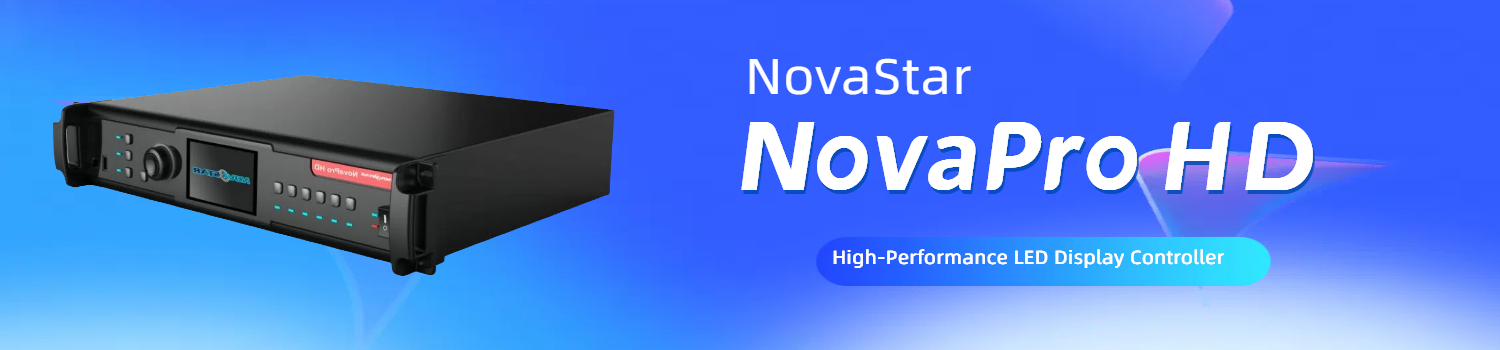

NovaPro HD, Designed for those who demand uncompromised quality and smooth, professional performance. Combining cutting-edge technology with user-friendly features, it empowers users to manage complex video setups with ease. Whether you’re aiming for high-quality visuals or seamless control over multiple inputs, the NovaProHD is built to exceed expectations, making it an ideal solution for anyone seeking to elevate their visual display experience.
Let’s dive into what makes this controller so unique!
Catalogs:
3. Price Insights for NovaPro HD
4. Setting Up the NovaProHD
4.1 Initial Setup Actions
4.2 Main Interface Overview
4.3 Configuring Input Settings
4.4 Configuring Screen Settings
4.5 Adjusting Brightness Control
4.6 Configuring Output Settings
4.7 Display Control Options
4.8 Advanced Settings
4.9 Communication Settings
4.10 Language Settings
5. Where Can NovaPro HD Be Practically Used?
1. Understanding NovaPro HD
The NovaPro HD is a high-performance LED display controller. As an all-in-one controller, it offers both robust display control and advanced front-end processing capabilities, eliminating the need for an external scaler. With multiple input options including CVBS, VGA, SDI, DVI, HDMI, and DP, the NovaPro HD supports resolutions up to 1080p at 60Hz. This versatility makes it ideal for large events, stage setups, and complex visual displays.
1.1 Appearance
①: Power switch
②: Power switch indicators
③: Input source buttons and indicators.
④: Operation screen
⑤: Knob
⑥: ESC
⑦: BLK, FRZ, PIP
⑧: Type A female interface is USB interface. Type B female interface is USB control interface.
1.2 Specifications
| Input Type | Quantity | Description |
| CVBS | 1 | PAL/NTSC compatible |
| VGA | 1 | VESA standard, supports up to 1080p resolution |
| DVI | 1 | VESA standard, supports up to 1080p resolution and HDCP |
| HDMI | 1 | Follows EIA/CEA-861 standard, HDMI 1.3 compatible, supports HDCP |
| DP | 1 | VESA standard |
| 3G-SDI | 1 | Supports 480i, 576i, 720p, and 1080i/p (3G SDI) |
| Output Type | Quantity | Description |
| DVI LOOP | 1 | DVI loop output, matches the DVI input connector |
| SDI LOOP | 1 | SDI loop output, matches the SDI input connector |
| LED Output | 4 | 4 Gigabit Ethernet outputs; Port 1 also supports audio output. When configured for cascading, the multi-function card connects to the Ethernet port 1. Supports a maximum horizontal resolution of 3840 pixels and a vertical resolution up to 1920 pixels. |
| OPT Output | 4 | Optical fiber connections for long-distance transmission |
| Monitor | 2 | DVI and HDMI connectors for output image monitoring, displaying the same content on both outputs |
| Types | Details |
| Electrical Specifications | Power Source: AC 100 – 250V, 50/60Hz, 0.65A Power Consumption: 30W |
| Operating Environment | Temperature: 0°C to 45°C Humidity: 10% – 90% RH, non-condensing |
| Physical Specifications | Dimensions: 480mm x 395.5mm x 94.6mm Net Weight: 5.0 kg Total Weight: 8.9 kg |
| Packing Details | Carton Size: 535mm x 195mm x 425mm Accessory Box: Includes 1 power cord, 1 Ethernet cable, 1 DVI cable, 1 HDMI cable, 1 DP cable, 1 VGA cable, and 1 USB cable Packing Box Size: 555mm x 445mm x 220mm |
| Certifications | CE, ROHS, FCC, UL/CUL, EAC |
| Noise Level | 48dB(A) |
2. Unique Features
Versatile Input Options: Supports CVBS, VGA, SDI, DVI, HDMI, and DP inputs, with resolutions up to 1080p at 60Hz. The maximum pixel clock is 165MHz, and output bandwidth reaches 4Gbit for smooth, high-definition performance.
Advanced Image Processing: Uses de-interlacing motion adaptive processing technology for clear, sharp images. HDMI inputs support up to 12-bit grayscale, providing rich, high-quality color depth.
Customizable Input Configuration: Each input can be adjusted for contrast, brightness, hue, saturation, and RGB gain. Scaling options allow inputs to fit the LED display resolution perfectly.
Touch Track System Configuration: Simplifies setup with a single wheel and button, eliminating the need for additional software. Users can also configure the system via a web browser on any device (Windows, Mac, Linux, tablet, or smartphone).
Real-Time Preview: Provides a live preview during setup and allows users to monitor system status in real time.
Professional Synchronization: Includes DMX512 and Genlock interfaces for precise synchronization and control, making it suitable for professional display setups.
Long-Distance Data Transmission: Equipped with optical fiber outputs, the NovaPro HD enables reliable long-distance data transmission, ideal for larger venues.
3. Price Insights for NovaPro HD
For the most accurate and up-to-date pricing, we recommend checking the LED Screen Cloud Platform, where you can view current prices and compare options. Additionally, you may Contact LedInCloud for personalized information, helping you to make an informed decision that suits your budget and project requirements.
4. Setting Up the NovaProHD
The NovaPro HD offers three operating modes for versatile control, allowing users to select the best method for different settings:
Mode 1: Machine Operation
All operations can be performed directly on the NovaPro HD using a knob and a button, without needing a connected computer.
Mode 2: Web Operation
Ideal when the NovaPro HD and a control computer are on the same LAN.
Simply open a web browser on the control computer, enter the IP address of the NovaPro HD, and access the control page for remote adjustments.
Mode 3: NovaLCT Client Operation
Connect the NovaPro HD to a control computer and manage all configurations via the NovaLCT-Mars client software.
After setting up configurations on the NovaLCT-Mars, send them to the NovaPro HD for application.
This guide will walk through all steps for machine operation.
4.1 Initial Setup Actions
Knob: Press to enter the menu, turn to adjust values or navigate submenus. Press again to confirm selections.
ESC: Exit from the current menu or operation.
Input Buttons: Short press to set as main screen input, long press to set as PIP source.
Lock/Unlock: Hold both the knob and ESC button for over three seconds to lock/unlock the controller.
4.2 Main Interface Overview
After starting the NovaPro HD, the LCD main interface displays the following information:
Top Row: Shows the product model and either the local IP or a custom device name for identification.
INPUT Section: Displays the main screen signal source and its input format. Shows PIP signal source and its input format if PIP mode is enabled.
OUTPUT Section: Provides the LED display’s output signal format. Indicates the active LED output port (e.g., Port2).
STATE Section: A status bar with icons that indicate real-time status:
| Indicator Icon | Description |
 | Indicates the controller is in primary control mode. |
 | Indicates the controller is in backup mode. |
 | Current brightness level is set to 80%. |
 | Displays current temperature. When temperature exceeds the user-defined threshold, the value turns red and blinks. |
 | Displays current voltage. When voltage exceeds the user-defined threshold, the value turns red and blinks. |
 | Indicates the display is set to point-to-point mode. |
 | Indicates the controller is in scaling down mode. |
 | Indicates the controller is in scaling up mode. |
 | Shows that Genlock synchronous signal input is active. |
 | Indicates that DMX channel signal is enabled. |
 | Currently in USB control mode. |
 | Currently in Ethernet port control mode. |
 | Image mosaic mode is enabled. |
 | When shown, the button and knob functions are locked on the main interface. |
 | Indicates the controller is not locked and all functions are accessible. |
4.3 Configuring Input Settings
NovaPro HD allows for resolution settings on digital input sources (DVI, HDMI, and DP). For other input sources, resolutions must be configured on the input devices themselves.
Preset Resolution:
Select from a list of standard resolutions pre-configured in the NovaPro HD. If none meet your needs, use the custom resolution option.
Custom Resolution:
Manually set the width, height, and refresh rate for the input.
After configuring these values, turn the knob to select “Apply” and press it to confirm the changes. If not confirmed, the custom settings will not take effect.
4.4 Configuring Screen Settings
Preconditions:
Each Ethernet port should ideally load the same number of cabinets.
Use regular screens and uniformly sized cabinets.
Steps:
- Power on the LED display. If cabinets display normally, proceed; if not, load the cabinet file and save it to the receiving card.
- Access the “Screen Settings” submenu to set up display parameters.
- Adjust “Cabinet Row QTY” and “Cabinet Column QTY” according to the actual screen layout.
- Set “Port1 Cabinet QTY” while keeping in mind limitations on the quantity of cabinets each port can support.
- Configure data flow based on your setup requirements, adhering to any additional notes provided in the settings.
4.5 Adjusting Brightness Control
From the main menu interface, press the knob and navigate to the brightness control option.
Rotate the knob to set the desired brightness level for the LED display.
4.6 Configuring Output Settings
Output settings fall into three categories based on how the output image matches the display screen:
Point-to-Point Display (Scaling Disabled):
The output image matches the input dimensions directly, with no scaling. Set horizontal and vertical offsets as needed.
Auto Fit to Screen (Scaling Enabled):
This option adjusts the output image to match the full size of the LED display.
Custom Scaling:
Input Capture: Define the starting position (X and Y) and dimensions (width and height) of the captured input image.
Output Window: Set the dimensions of the output window, ensuring it is within the LED display area. Captured content will display only within the defined window.
4.7 Display Control Options
NovaPro HD offers several control functions for managing the LED display:
NovaPro HD offers several control functions for managing the LED display:
Normal: Standard display mode.
Freeze: Pauses the current display output (equivalent to the FRZ button).
Black Out: Turns off display output (equivalent to the BLK button).
Test Pattern: Provides various test patterns for display calibration.
Picture Quality Adjustments: Customize contrast, saturation, hue, sharpness, color temperature, and individual color brightness levels (red, green, blue). Save these settings to the hardware after adjustments.
Channel Effects: Options include Cut, Fade, and Pop-up. To disable effects, select “Off.”
4.8 Advanced Settings
The Advanced Settings menu contains multiple configuration options: PIP, Advanced Configuration, Montage, Load Cabinet File, Alarm Threshold Settings, Advanced Property, Save Parameters to Hardware, Redundancy.
4.9 Communication Settings
This section allows you to configure the communication mode and network settings for the NovaPro HD. Two communication modes are available: USB Preferred and LAN Preferred.
When LAN Preferred is selected and both USB and LAN ports are connected to the control computer, the system will prioritize LAN for control.
If only the USB port is connected, the system will default to USB control, and the LAN preference option will be disregarded.
For network settings, you can choose between Manual and Automatic modes. In Automatic mode, the network configuration is obtained via DHCP.
4.10 Language Settings
Currently, the NovaPro HD supports both Chinese and English languages.
5. Where Can NovaPro HD Be Practically Used?
Events and Concerts: The NovaPro HD’s multi-input support (HDMI, SDI, DVI) allows seamless switching between video feeds, making it perfect for live events and concerts where dynamic content is essential.
Broadcast Studios: With Genlock and DMX512 capabilities, the NovaPro HD ensures smooth, synchronized visuals, making it a reliable choice for news studios and live broadcasts.
Corporate Conferences: The high-definition support up to 1080p @ 60Hz provides sharp visuals for presentations, and its user-friendly interface allows quick setup and adjustments.
Theater and Stage Productions: Low latency and adaptive de-interlacing technology ensure clear, high-quality visuals for complex or fast-moving scenes on stage.
Digital Signage and Advertising: The controller’s precise control over visual settings makes it ideal for digital signage, allowing for vivid and engaging displays in malls, airports, and stadiums.
Control Rooms: In command centers and control rooms, the NovaPro HD’s multi-feed support and real-time preview make it suitable for monitoring and surveillance.
6. NovaPro HD Manual and Resources Download
To access all essential resources for the NovaPro HD, visit our NovaStar Software download page. This dedicated platform provides everything you need to optimize your NovaStar products experience, including firmware updates, user manuals, software tools, and technical documentation.
Our Resources Download page and NovaStar RCFG Config Download page are designed as a comprehensive hub for all NovaStar products, ensuring you have easy access to the latest resources. Simply navigate to the page, search for the NovaPro HD, and find everything you need in one place.
7. FAQs about NovaStar Nova Pro HD
How do I upgrade the firmware of the NovaPro HD?
You can upgrade the firmware of the NovaPro HD upgrade by U disk and LCT client. For specific steps, you can refer to the user manual.
What input types does the NovaPro HD support?
The NovaPro HD supports a variety of input types, including CVBS, VGA, SDI, DVI, HDMI, and DP. These inputs allow it to connect with a range of video sources and support resolutions up to 1080p @ 60Hz.
Can I control the NovaPro HD remotely?
Yes, the NovaPro HD can be controlled remotely. You can use a PC, tablet, or smartphone to access and adjust settings through a web browser, making it easy to manage without needing multiple software tools.
Does the NovaPro HD support synchronization for multi-device setups?
Yes, the NovaPro HD includes Genlock and DMX512 interfaces, which enable it to synchronize with other devices for seamless, synchronized visuals.
Is it possible to use the NovaPro HD with long-distance data transmission?
Yes, the NovaPro HD supports optical fiber outputs, allowing reliable long-distance data transmission.
What languages does the NovaPro HD support?
Currently, the NovaPro HD supports both Chinese and English language options, making it accessible for users in multiple regions.
