Enter the NovaStar CVT320, a sophisticated fiber converter designed to bridge the gap between optical and electrical signals. This innovative device is specifically engineered for scenarios where your NovaStar controllers and LED displays are situated far apart, making it an essential solution for various applications.
1. Introduction
The CVT320 serves dual purposes, functioning as both a transmitter and a receiver unit. Its user-friendly design features an LC interface, allowing for seamless connections to fiber optic sources. This means that to transmit signals effectively from a controller to an LED display, only two units are required—one as a transmitter (TX) and the other as a receiver (RX).
Best of all, the NovaStar CVT320 operates without the need for additional drivers, simplifying installation and enhancing overall usability. Whether you’re setting up a commercial display or integrating technology into a smart city infrastructure, the CVT320 is your go-to tool for reliable signal management.

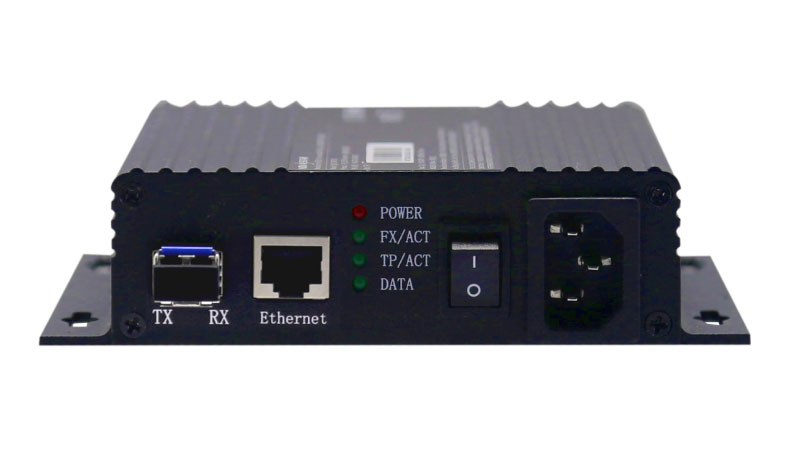

2. Appearance
| No. | Name | Description |
| ① | Optical module | Factory-installed single-mode twin-core LC fiber connector. Key features include:
|
| ② | Ethernet | Gigabit Ethernet port |
| ③ | Indicators | POWER: Shows the power status of the device. FX/ACT: Indicates optical fiber communication. When two CVT320 units are cascaded, both FX/ACT indicators being on confirms stable communication. If one or both are off, there is a communication issue. TP/ACT: Indicates Ethernet communication. This light stays on to signal that communication between the sending card and CVT320, or from CVT320 to the receiving card, is functioning correctly. If off, communication is interrupted. DATA: The DATA indicator near the receiving card flashes when both FX/ACT and TP/ACT indicators are on. If either is off, the DATA indicator remains off. |
| ④ | Switch | ON/OFF |
| ⑤ | AC power input | AC 100-240 V 50/60Hz |
3. Features of CVT320 NovaStar
Signal Conversion: Converts between optical and electrical signals.
Connectivity:
- 1 × Ethernet port
- 1 × Single-mode twin-core LC fiber connector
Immediate Use: Ready to operate right after connection—no drivers required.
Power Supply: Supports AC 100–240 V at 50/60 Hz.
Transmission Distance: Capable of transmitting signals up to 15 kilometers using single-mode dual-core optical fiber.
This compact and efficient design makes the CVT320 an ideal choice for various LED display applications.
4. Benefits of NovaStar CVT320
Enhanced Signal Integrity: By utilizing fiber optics, the CVT320 maintains signal quality over long distances, achieving clear and vibrant display performance.
Simplicity in Setup: With its driver-free operation, the CVT320 allows for quick and hassle-free installation, getting you up and running in no time.
Long-Distance Capability: Supporting transmission distances of up to 15 kilometers, this converter is perfect for applications where distance is a factor, such as large venues or outdoor displays.
Versatile Functionality: Acting as both a transmitter and receiver, the CVT320 adapts to various system configurations, making it an essential tool for diverse environments.
Cost-Effective Solution: Its efficient design reduces the need for multiple devices, streamlining your setup and saving on overall costs.
5. Specifications
| Input Voltage | AC 100-240 V 50/60Hz |
| Rated Current | 0.7 A |
| Rated Power Consumption | 3.5 W |
| Operating Temperature | -20°C-70°C |
| Storage Temperature | -30°C-80°C |
| Operating Humidity | 10% RH-90% RH |

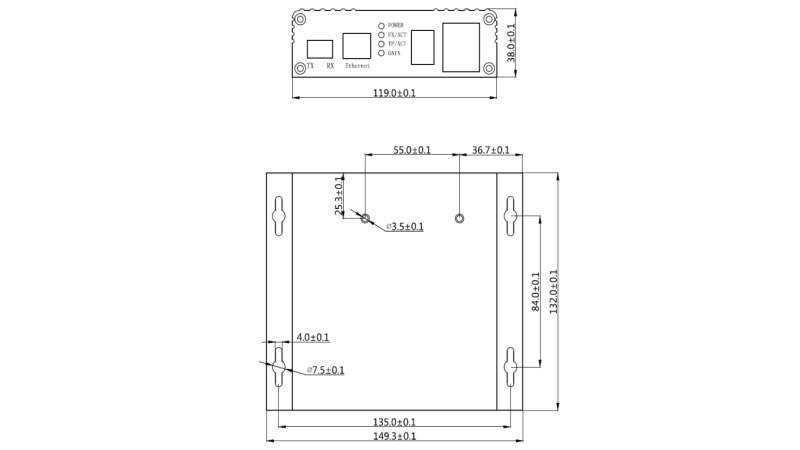

| Dimensions | 149.3 mm × 132.0 mm × 38.0 mm |
| Weight | 0.53 kg |
| Certifications | l CE l RoHS l FCC l IC l EAC |
| Packing | Suitcase: 335 mm × 190 mm × 62 mm, Kraft cardboard box printed with NOVASTAR. Foam: (Top) 330 mm × 180 mm × 5 mm, (Bottom) 330 mm × 180 mm × 53 mm. Carton: 400 mm × 365 mm × 355 mm, Kraft cardboard box printed with NOVASTAR. |
6. NovaStar CVT 320 Price
The NovaStar CVT320 fiber converter is available at an estimated price of around $120, making it an affordable solution. Its cost-effective design and high performance make it a popular choice for various LED display setups.
For the most up-to-date and accurate pricing details, we recommend visiting our LED Screen Cloud Platform, where you can easily check the latest offers and additional product information.
7. Applications
The NovaStar CVT320 is an essential fiber converter for LED display setups that require long-distance signal transmission. Its ability to convert optical signals to electrical signals makes it ideal for a range of large-scale applications:
Outdoor Digital Billboards: Delivers stable, high-speed data transmission over long distances, even in challenging environments.
Concerts and Events: Maintains seamless communication between control systems and LED screens.
Sports Stadiums: Supports long-distance connections between LED displays and controllers, providing consistent performance across large venues.
Smart City Installations: Perfect for large LED displays used in smart city projects, such as public signage and information boards, where controllers are placed at a distance from the screens.
8. Nova CVT320 Resouces Download
To support the installation and optimal use of the NovaStar CVT320, we offer a full range of resources available for download. Whether you’re looking for user manuals, firmware updates, or additional technical guides, all the necessary files can be found in our NovaStar Resources Download page. This centralized hub provides access to everything you need for all NovaStar products.
9. FAQS
What is the NovaStar CVT320?
The NovaStar CVT320 is a fiber converter that converts optical signals to electrical signals, enabling long-distance data transmission for LED display systems.
Do I need any additional drivers for the NovaStar CVT320?
No drivers are required. The CVT320 is ready to use immediately after connection.
What are the power requirements for the CVT320?
The CVT320 operates with an AC 100–240 V, 50/60 Hz power supply.
Where can I find resources for the NovaStar CVT320?
Resources such as user manuals and technical guides are available on our website.
What is the price of the NovaStar CVT320?
The specific price of the NovaStar CVT320 is about $120.
10. Conclusions
The NovaStar CVT320‘s robust design, easy plug-and-play functionality, and impressive 15 km transmission distance make it a versatile solution for various applications such as outdoor billboards, concerts, stadiums, and smart city installations. With a competitive price of around $120, the CVT320 offers great value for its capabilities. For the latest pricing and resources, be sure to register LedInCloud to explore all available options.
