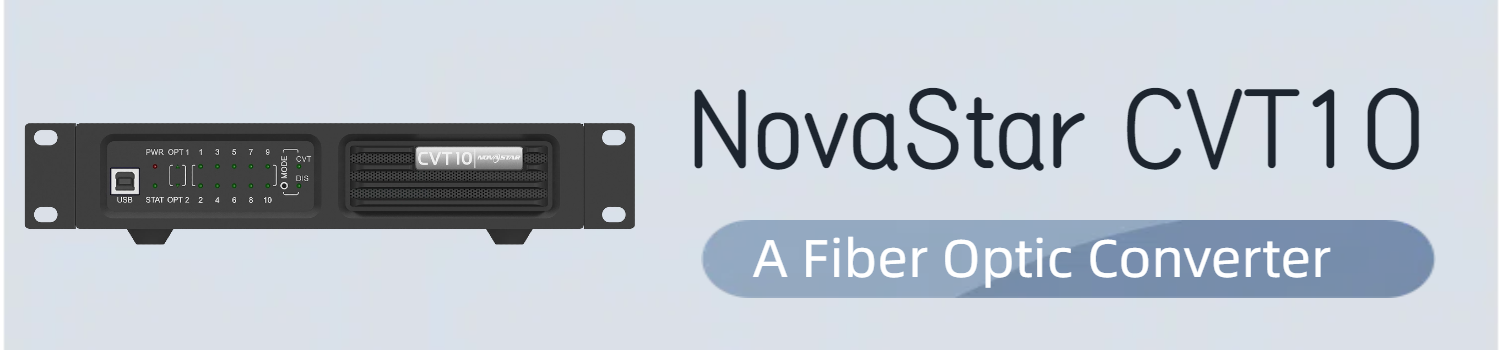

Designed to address the challenges of long-distance signal transmission, NovaStar CVT10 offers a cost-effective and stable solution for converting optical signals to electrical signals with full-duplex data transfer.
For LED display, seamless and reliable data transmission is important, especially when working with large-scale installations where distances can significantly impact performance. This is where the CVT10 NovaStar Fiber Converter comes into play.
In this article, we’ll explore how the NovaStar CVT10 elevates your LED display system by delivering reliable and efficient transmission.
1. What is the NovaStar CVT10?
The NovaStar CVT10 is a fiber optic converter that converts optical signals into electrical signals for video transmission between LED sending cards and LED displays. It supports long-distance data transmission, helping maintain signal strength over large distances, which is often a challenge with regular cables.
The CVT10 uses full-duplex data transfer, which allows data to be sent and received at the same time. This makes it ideal for applications that need real-time video processing, like stadiums, broadcast events, and large LED displays.
One of its key features is its versatile installation options. It can be mounted horizontally, suspended, or integrated into a rack system. This flexibility makes it a practical choice for various setups. Plus, it offers a cost-effective way to handle long-distance video transmission for LED display systems.
2. Key Features and Benefits
The CVT10 is available in two versions: the NovaStar CVT10-S for single-mode fiber and the NovaStar CVT10-M for multi-mode fiber, offering flexibility based on different transmission distance requirements.
It features dual optical ports equipped with hot-swappable optical modules that are pre-installed, providing a bandwidth capacity of up to 10 Gbit/s per port. This makes it adaptable for high-speed data transmission needs.
The device is equipped with 10 Gigabit Ethernet ports, each capable of delivering up to 1 Gbit/s of bandwidth.
When using fiber in and Ethernet out, the first 8 Ethernet ports (1-8) are functional, with the remaining two reserved for future updates.
When using Ethernet in and fiber out, all 10 Ethernet ports are available, supporting a wide range of connection needs.
The CVT10 offers dual power connection options, including a 3-pin socket and a PowerCON socket, giving users flexibility in powering the device depending on their setup.
It also features a type-B USB control port, which enables direct control and configuration of the device through a computer, simplifying management and setup.
With its modular design, the CVT10 can easily integrate into a variety of setups, providing robust and reliable performance for complex LED display systems.
3. What Is the Price of NovaStar CVT10?
The NovaStar CVT10-S is competitively priced at around $700, making it a cost-effective choice for fiber converter.
To ensure you receive the latest pricing, we recommend visiting our LED Screen Cloud Platform. Our platform provides updated prices, detailed specifications, and availability information, allowing you to make an informed decision.
4. Appearance and Specifications
| Name | Description |
| USB | Type-B USB control port for connecting to the control computer (NovaLCT V5.4.0 or later) for firmware upgrades. Not used for cascading. |
| PWR | Power indicator, stays on when the power supply is normal. |
| STAT | Running indicator. Flashes when the device is operating normally. |
| OPT1/OPT2 | Optical port indicators. Stays on when the fiber connection is normal. |
| 1-10 | Ethernet port indicators. Stays on when the Ethernet connection is normal. |
| Mode | Mode selection button to switch the device’s working mode. The default is CVT mode, which is the only supported mode at the moment. |
| CVT/DIS | Working mode indicators. Stays on when the selected mode is active: CVT (fiber converter mode), where OPT1 is the master and OPT2 is the backup. DIS mode is reserved. |
| Name | Description | |
| 100-240V~, 50/60Hz, 0.7A | Power input connector: I: Enable PowerCON socket. O: Power off. II: Enable 3-pin power socket. | |
| OPT1/OPT2 | 10G optical ports | |
CVT10-S module: – Hot-swappable – Transmission rate: 9.95 to 11.3 Gbit/s – Wavelength: 1310 nm – Range: 10 km | CVT10-S optical fiber: – Model: OS1/OS2 – Single-mode twin-core – Diameter: 9/125 μm – LC connector – Insertion loss: ≤ 0.3 dB – Return loss: ≥ 45 dB | |
CVT10-M module: – Hot-swappable – Transmission rate: 9.95 to 11.3 Gbit/s – Wavelength: 850 nm – Range: 300 m | CVT10-M optical fiber: – Model: OM3/OM4 – Multi-mode twin-core – Diameter: 50/125 μm – LC connector – Insertion loss: ≤ 0.2 dB – Return loss: ≥ 45 dB | |
| 1-10 | Gigabit Ethernet ports: – Always on: Indicates Ethernet connection is normal. – Flashing: Indicates data transmission. | |
| Specification | Description |
| Electrical Specs | Input Voltage: 100-240V~, 50/60Hz, 0.6A Rated Power: 18W |
| Operating Environment | Temperature: -20°C to +55°C Humidity: 10%RH to 80%RH, non-condensing |
| Storage Environment | Temperature: -20°C to +70°C Humidity: 10%RH to 95%RH, non-condensing |
| Physical Specs | Dimensions: 254.3mm × 50.6mm × 290.0mm Net Weight: 2.1kg Gross Weight: 3.1kg (including product, accessories, and packaging materials) |
| Packaging Information | Outer Box: 387.0mm × 173.0mm × 359.0mm, cardboard box Packaging Box: 362.0mm × 141.0mm × 331.0mm, cardboard box |
| Accessories | – 1× power cable, 1× USB cable – 1× bracket A (with screws), 1× bracket B (without screws) – 1× connector – 12× M3*8 screws – 1× installation diagram – 1× certificate of conformity |
5. Applications and Use Cases
In concert venues or sports arenas, the CVT10 ensures real-time video delivery to LED walls across wide areas. With dual optical ports and multiple Ethernet ports, it offers flexible configurations and stable transmission in complex setups. Its multi-mode and single-mode fiber options adapt to different environments, such as stadiums and large exhibitions.
The CVT10 is also well-suited for digital signage in malls and transport hubs. Its compact design and rack-mounting feature enable easy integration into existing systems, maintaining high-quality video without signal loss. Its robust design makes it perfect for outdoor use, where distance and interference can complicate traditional transmission methods.
5.1 Connection Method
5.2 Assembling Effect Diagram
6. How to Get NovaStar CVT10 Resources?
The best way to get all the essential resources for the CVT10 NovaStar or other NovaStar products is through our NovaStar Software download page or NovaStar RCFG Config Download. This dedicated section of our website provides everything you need, from detailed specifications to the latest firmware updates, all in one convenient location.
7. Summary
The NovaStar CVT10 fiber converter is a versatile, high-performance device that enables smooth data transmission between video sources and LED displays. Designed for long-distance applications, it converts optical signals to electrical signals.
With both single-mode and multi-mode models, dual optical ports, and ten Ethernet ports, the CVT10 provides flexibility and reliability in complex setups. Its practical hardware design supports multiple mounting options, allowing easy integration into various environments.
The CVT10’s adaptability and stable performance make it a valuable solution for demanding applications requiring robust, interference-free video transmission.
