NG500/1000 Series
Rental LED Display
- 500x500mm and 500x1000mm cabinet sizes
- P1.953/ P2.5/ P2.604/ P2.976/ P3.91/ P4.81mm
- Detachable back cover box
- Right-angle installation support (NG500)
- Front or rear maintenance (NG500)
- Indoor & outdoor available
- 3-year warranty and 5% spare parts included
Lightweight and Thin
With a cabinet weight of just 7.5kg and a thickness of 80mm, these displays are portable and stable, making them easy to transport, install, and maintain—ultimately reducing labor costs.
Perfect Structure
Linsn's top-tier design team has developed an innovative structure with a unique philosophy, integrating cutting-edge technology and sleek, avant-garde lines for an extraordinary viewing experience.
Right Angle Installation (Optional)
The NG500 series supports 90° right-angle installations, making it suitable for special architectural applications.
Front & Rear Maintenance
This series allows for dual maintenance—both front and rear access. Magnetic LED panels can be removed from the front in just five seconds, ensuring quick and easy maintenance, reducing both time and labor costs.
Detachable Back Cover

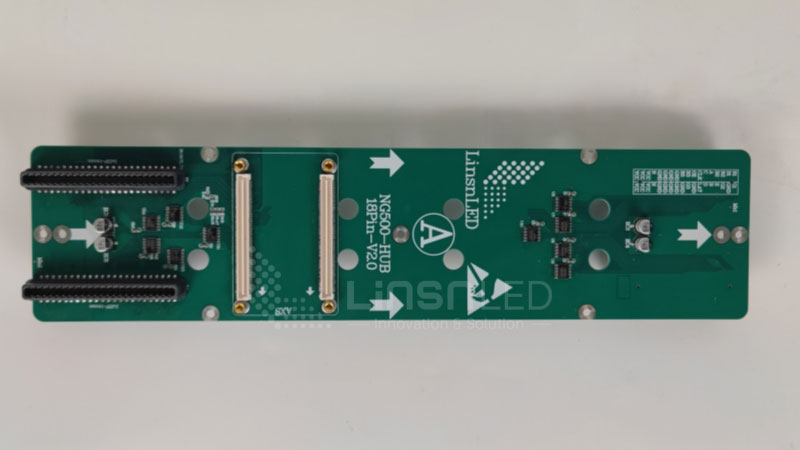

The control box, including the power supply and control cards, features a quick-release design, allowing tool-free removal for fast maintenance and replacement.
Seamless Display and Visual Excellence
The high-precision aluminum cabinet frame ensures seamless splicing for flawless image and video display, delivering an immersive and elevated visual experience.
Curved Installation (Optional)
With the addition of a curved lock, the NG500/1000 series can be configured for both convex and concave displays, achieving angles between -10° and 15°, allowing for flexible and creative screen setups.
Multiple Installation Methods
The cabinets support versatile installation methods, including hanging, concave and convex, and stack installations, making them adaptable to various settings.
IP65 Waterproof
The front of the display is IP65-rated, ensuring reliable performance in all outdoor environments, regardless of weather conditions.
Product Videos
Product Images
Specification
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness (for indoor) | 800 nits | 800 nits | 700 nits | 700 nits |
| Brightness (for outdoor) | 4500 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption (for indoor) | 450 W/m² | |||
| Max Power consumption (for outdoor) | 640 W/m² | |||
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP50 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 500 x 80mm/500 x 1000 x 80mm (WxHxD) | |||
| Weight / Tile | 7.5kg/14kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
