MY Series
High Quality Rental LED Display
- The 2023 IF Design Award
- 500x500mm and 1000x1000mm cabinet sizes
- P1.953/ P2.604/ P2.976/ P3.91/ P4.81mm
- Features a detachable back cover for easy access
- Supports right-angle installation (optional)
- Dual maintenance options: front or rear
- Includes a 3-year warranty
MY Series Rental LED Screen
The Linsn LED MY Series rental screen features a new design that blends aesthetic elements with high-strength die-cast aluminum, delivering superior performance and crystal-clear visual displays.
Innovative Structure with Front & Rear Maintenance

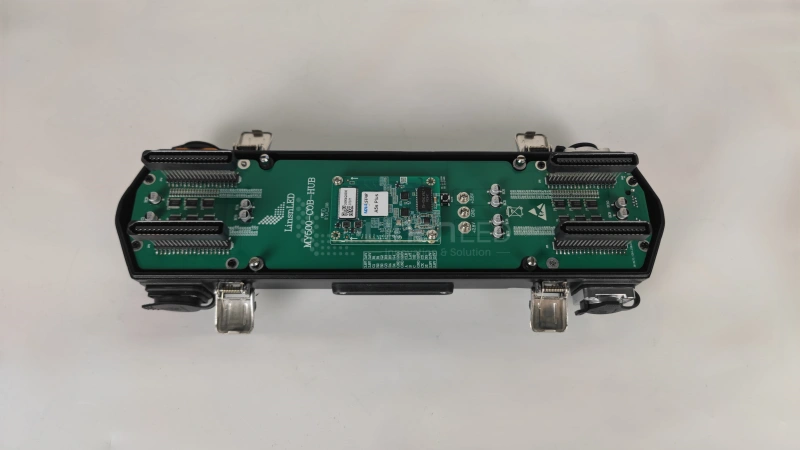

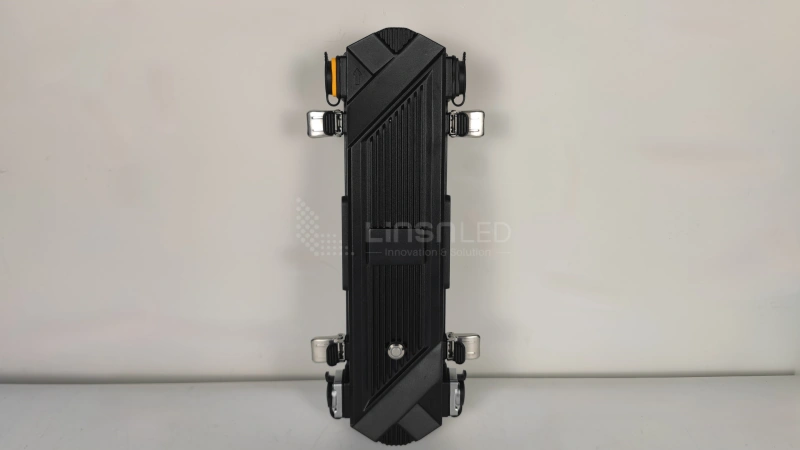

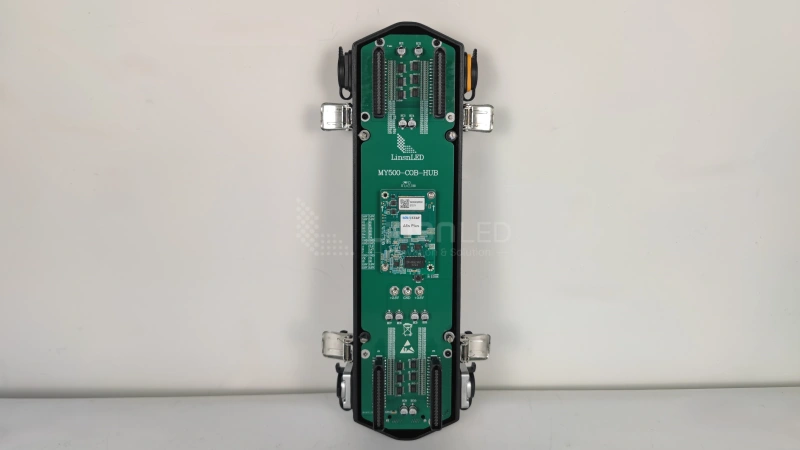

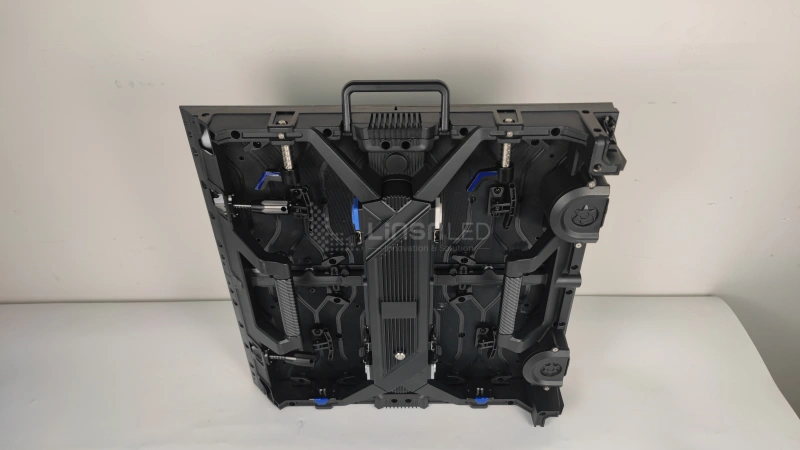

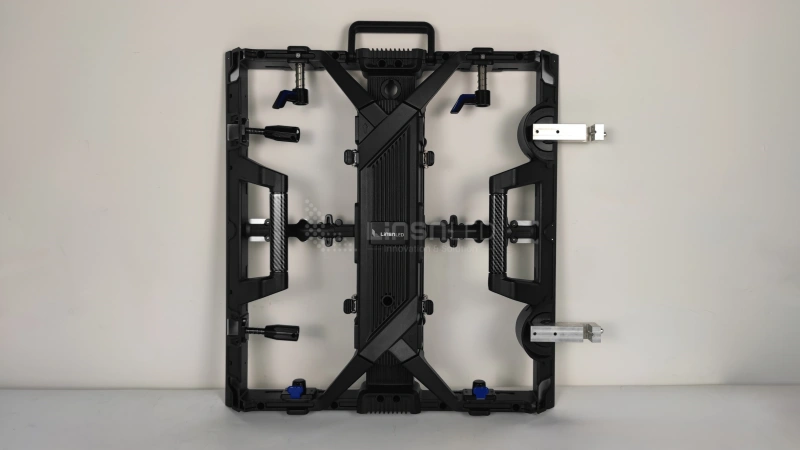

Designed by Linsn's top domestic team, the MY Series showcases cutting-edge structural innovation with sleek, modern lines. The optimized control box can be removed quickly without tools, and the detachable back box, which houses the power supply and control cards, makes maintenance simple. Panels are magnetically attached and can be easily removed from the front within seconds using a tool.
Lightweight and Slim Design
Weighing just 6kg for the 500x500mm cabinet and 11kg for the 500x1000mm version, with a thickness of only 80mm, this lightweight LED display is easy to transport, install, and handle. The compact design helps reduce labor costs by simplifying installation and movement.
Seamless Display for Superior Visuals
Crafted with high-precision aluminum cabinet frames, the screen delivers seamless image splicing and impeccable video quality, offering viewers a fully immersive visual experience from any angle.

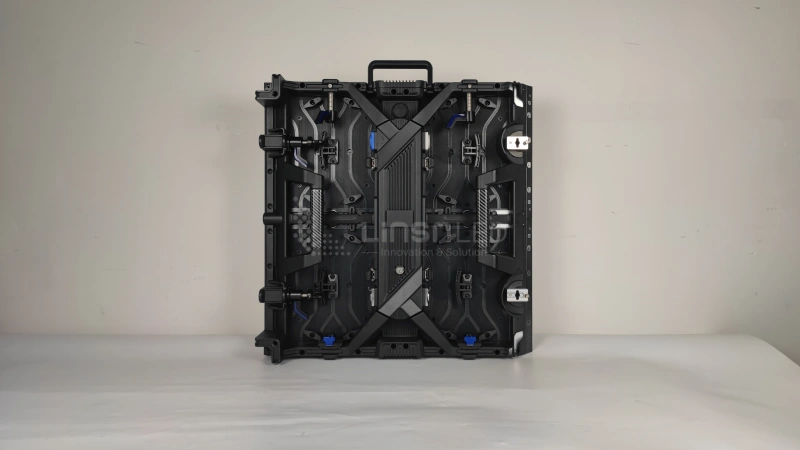

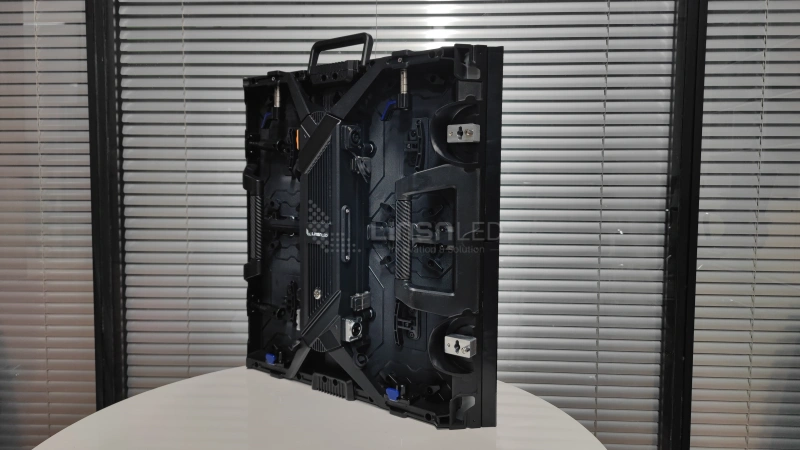

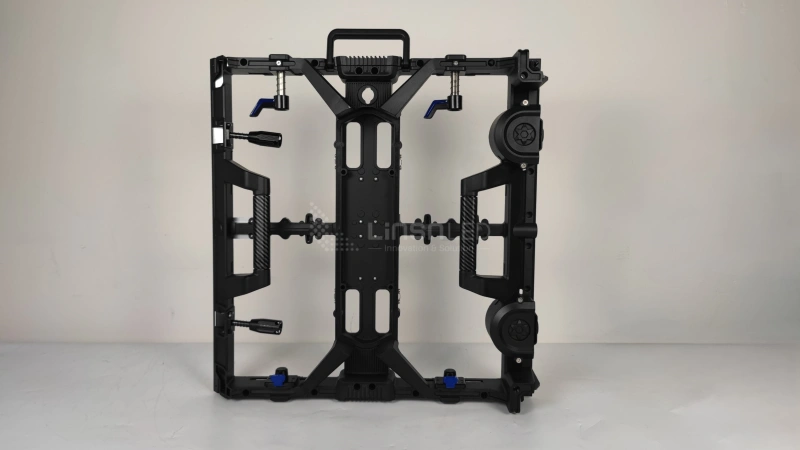

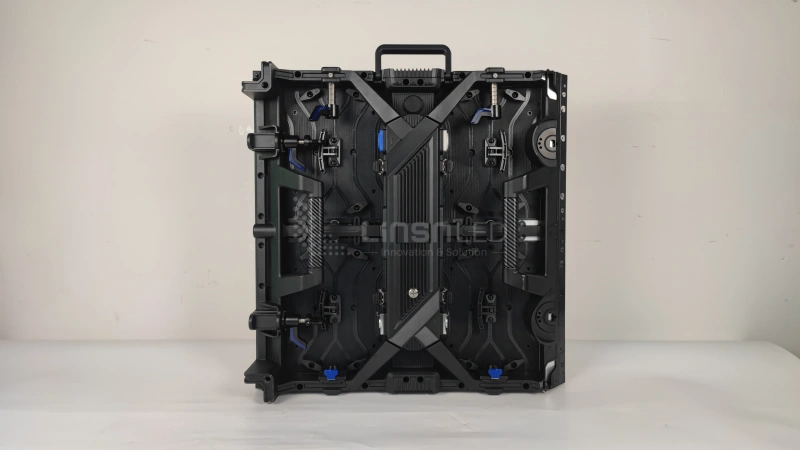

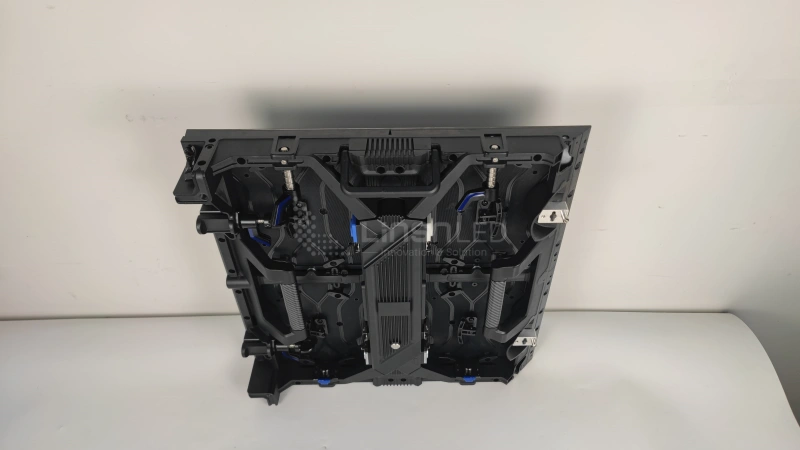

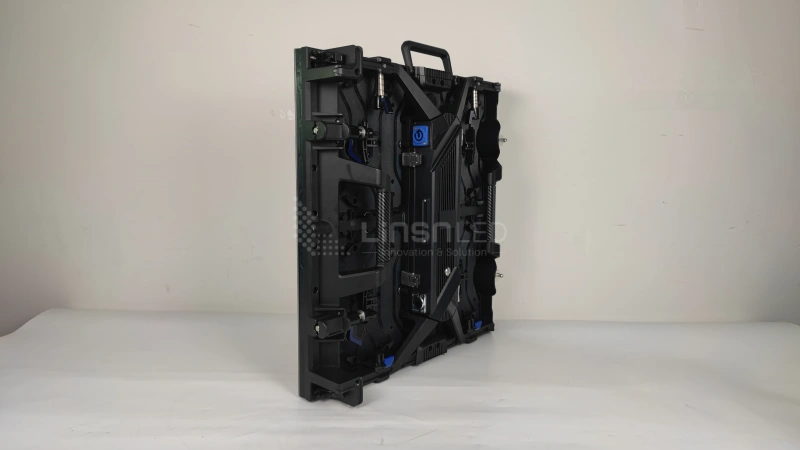

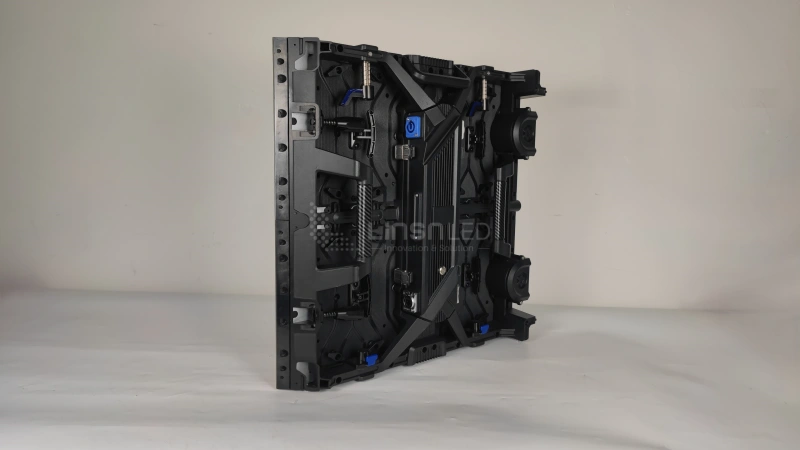

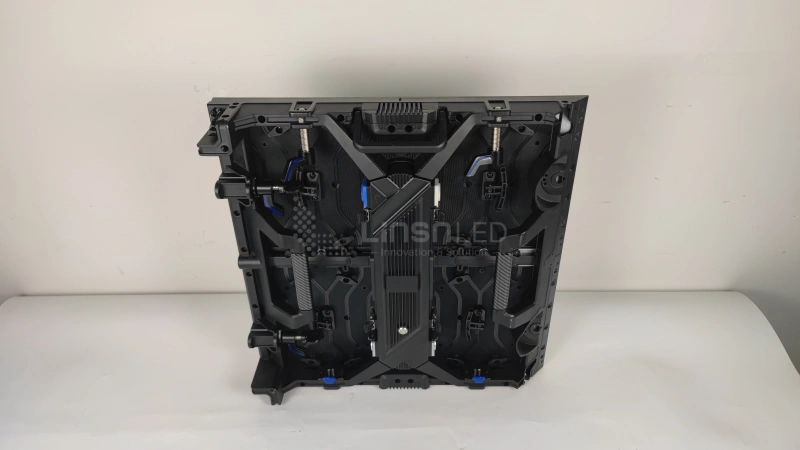

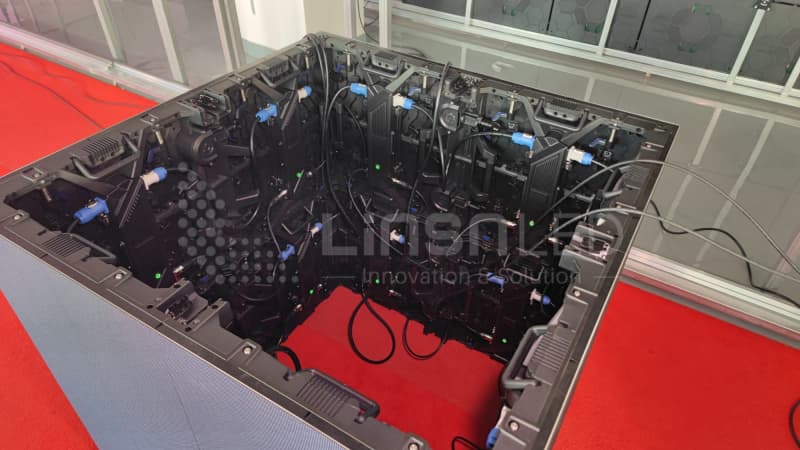

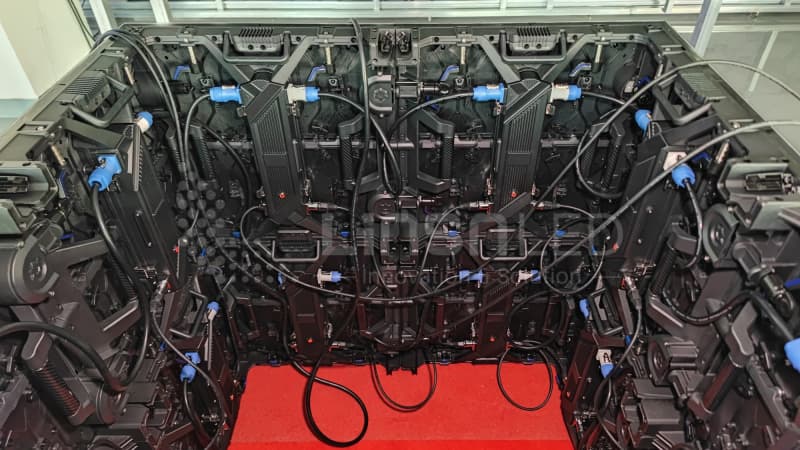

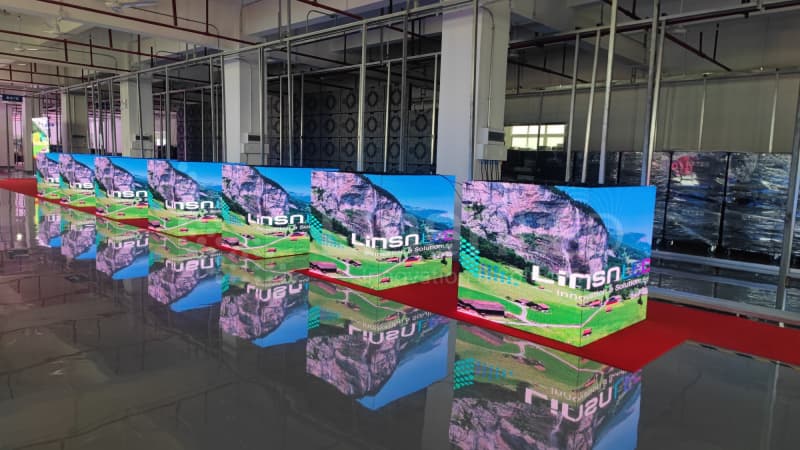

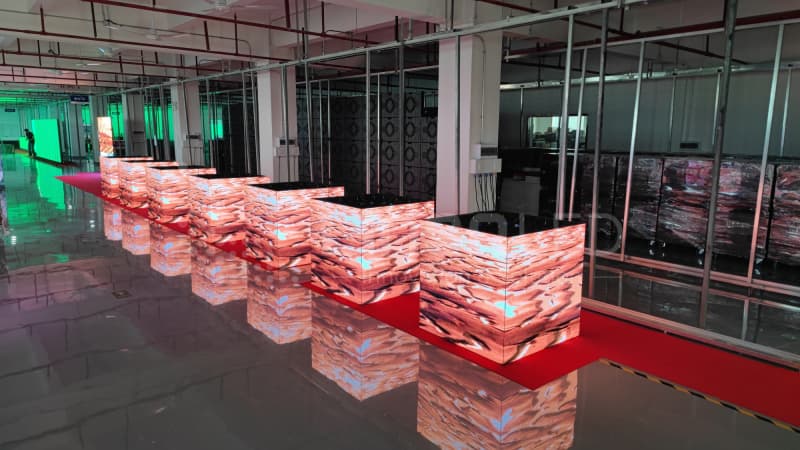

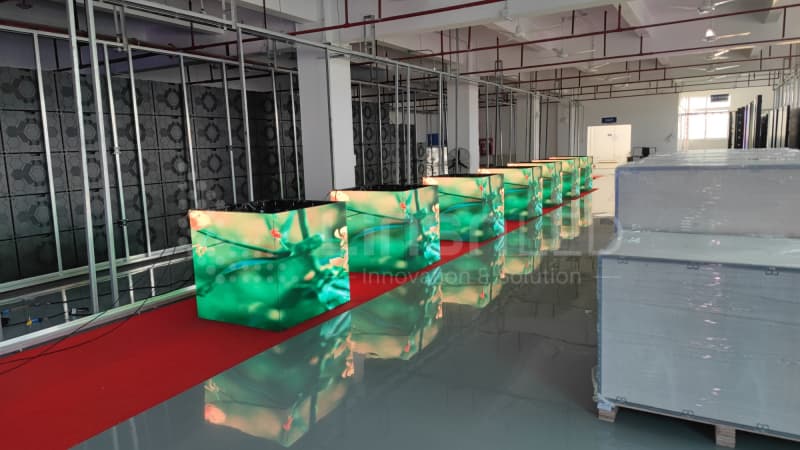

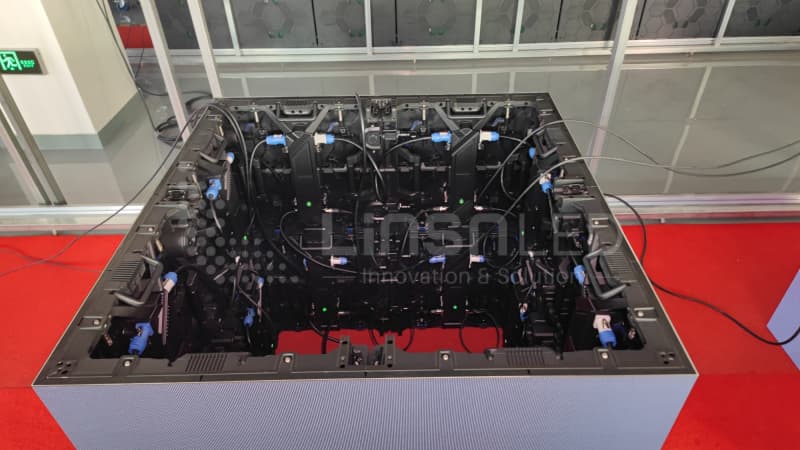

Supports 90° Right-Angle Installation (optional)
The MY Series supports 90° right-angle installations, making it suitable for unique architectural applications and special setups.
LED Corner Protection
Each corner of the screen is equipped with protective features to prevent damage during transport and installation, ensuring long-lasting durability in any working environment.

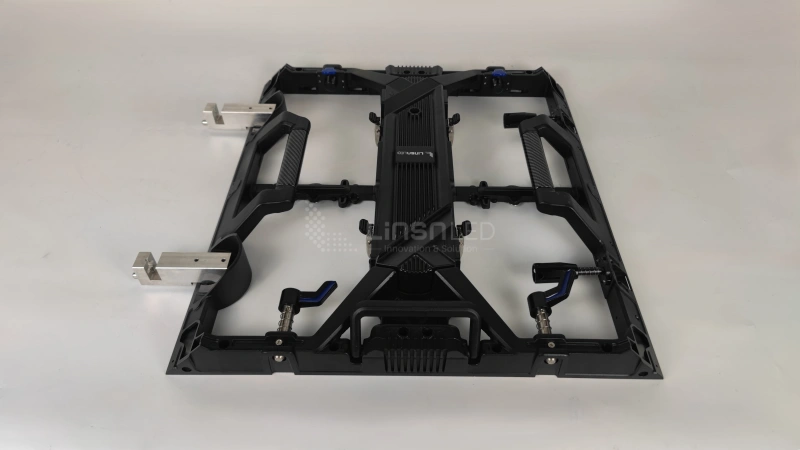

Curved Installation Option
With the addition of a curve lock (optional), the display can be adjusted to form curved screens, allowing for angles between -6° and 6°. A total of 60 cabinets can create a circular LED display, providing versatility for various applications.
Product Videos

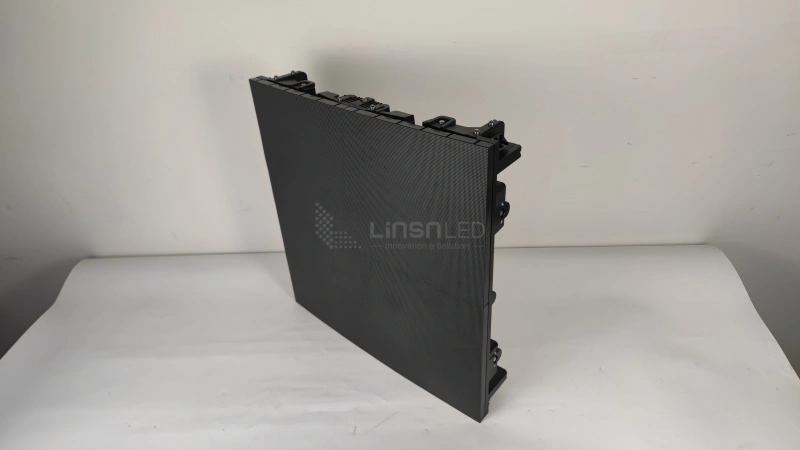

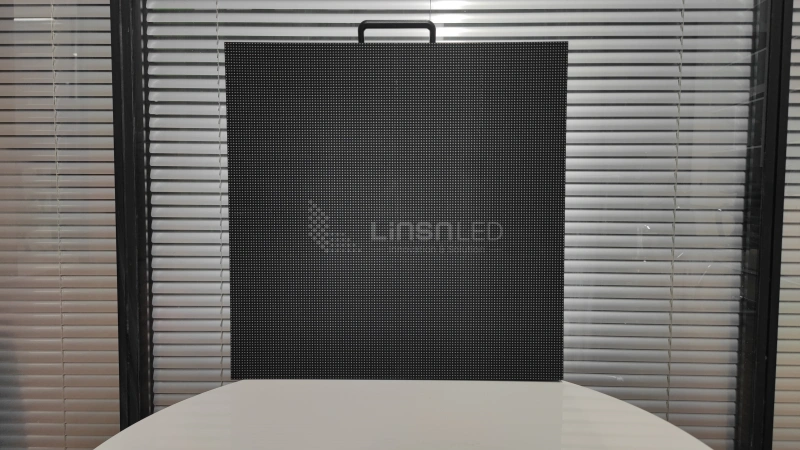

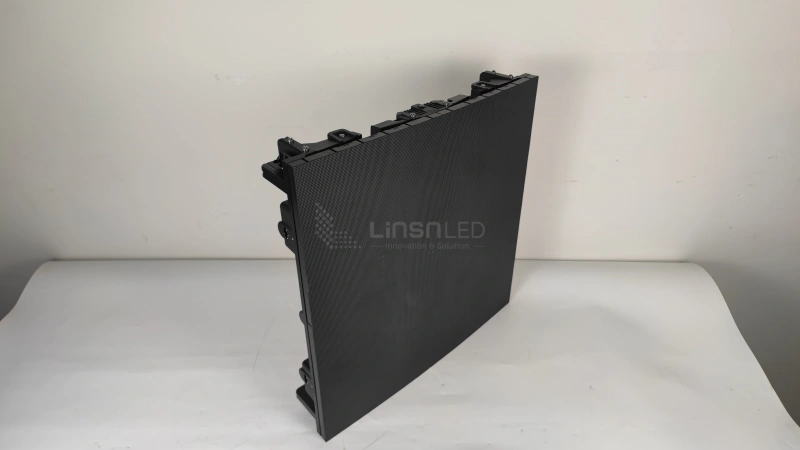

Product Images

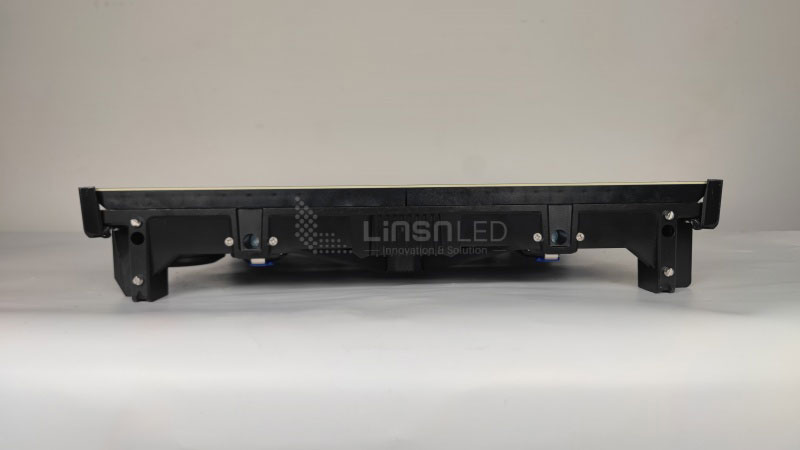

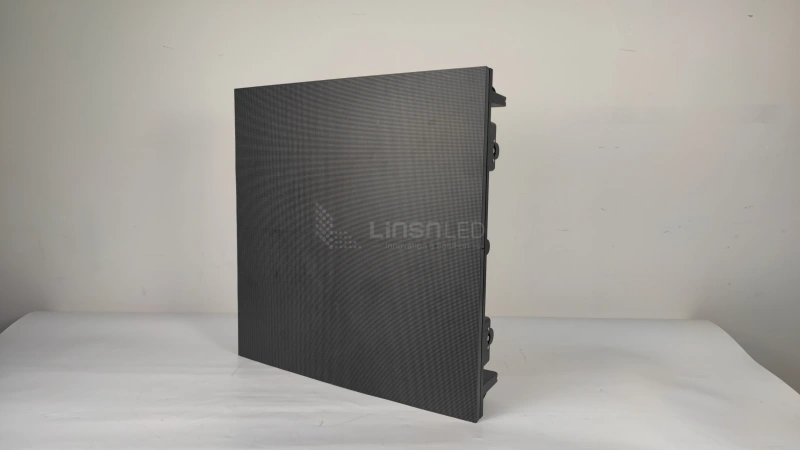

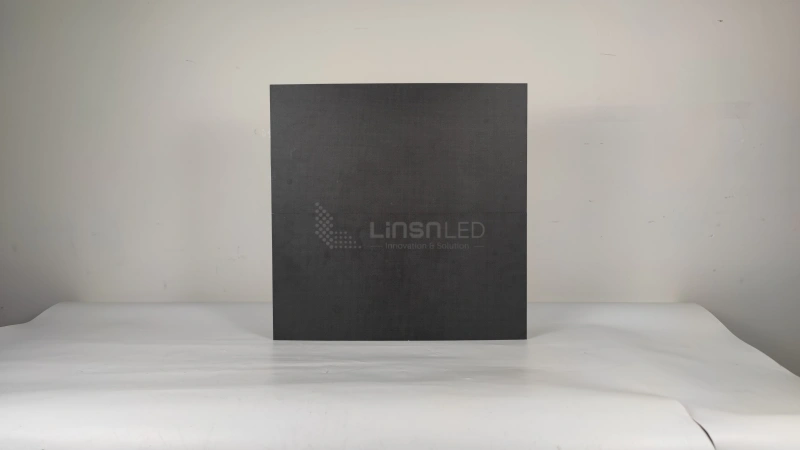

MYS500 - The Latest Flexible LED Display

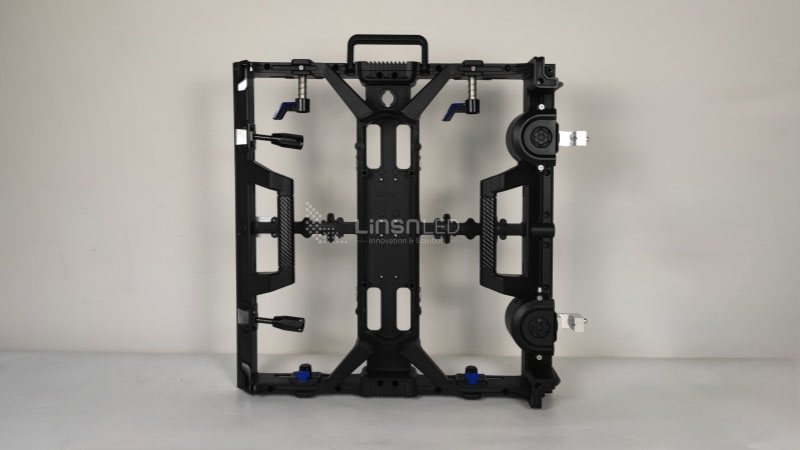

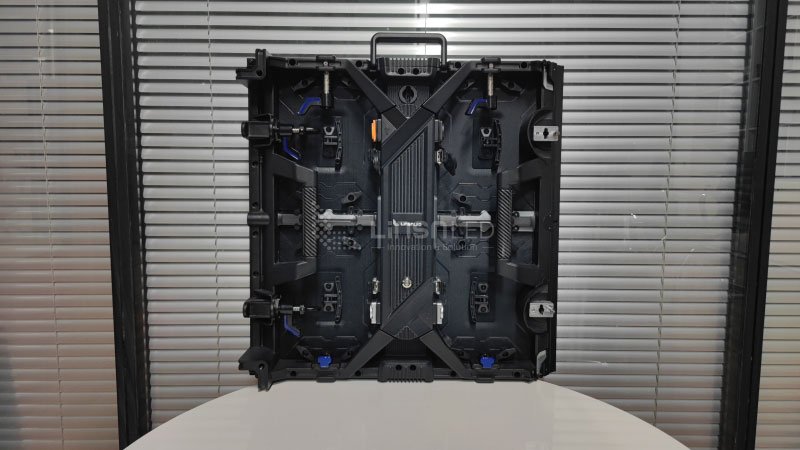

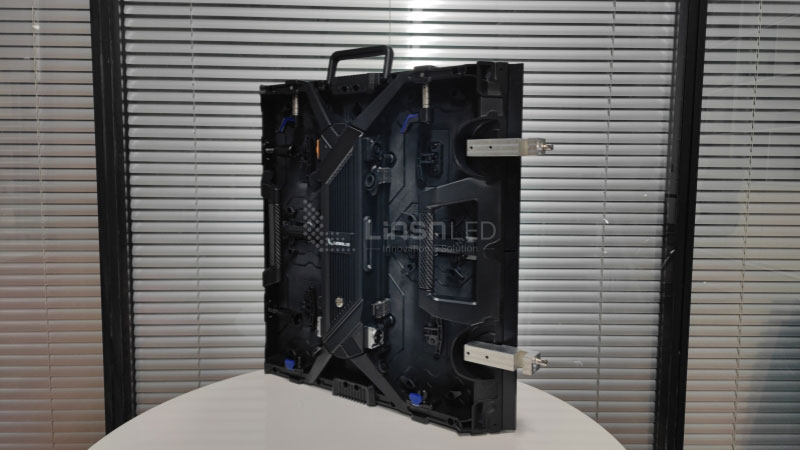

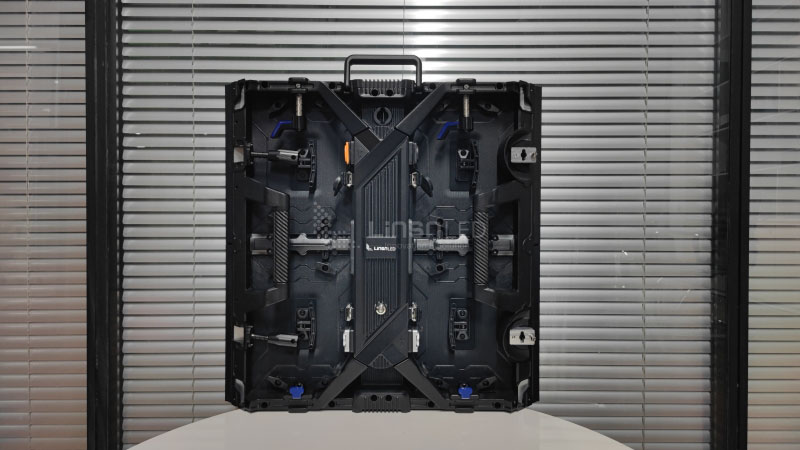

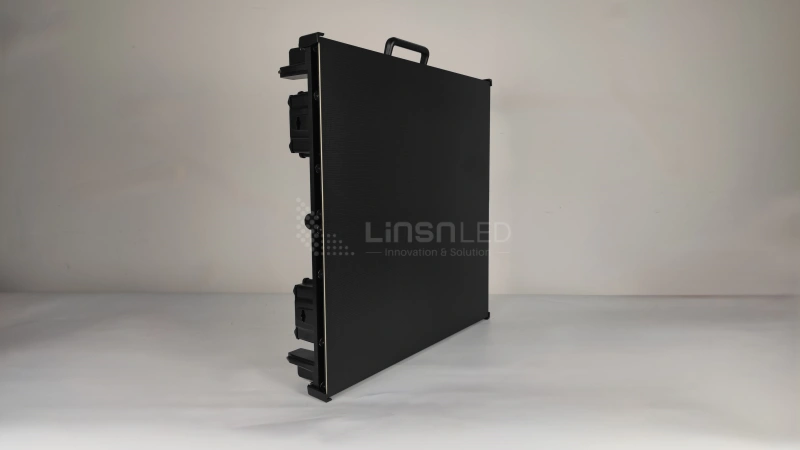

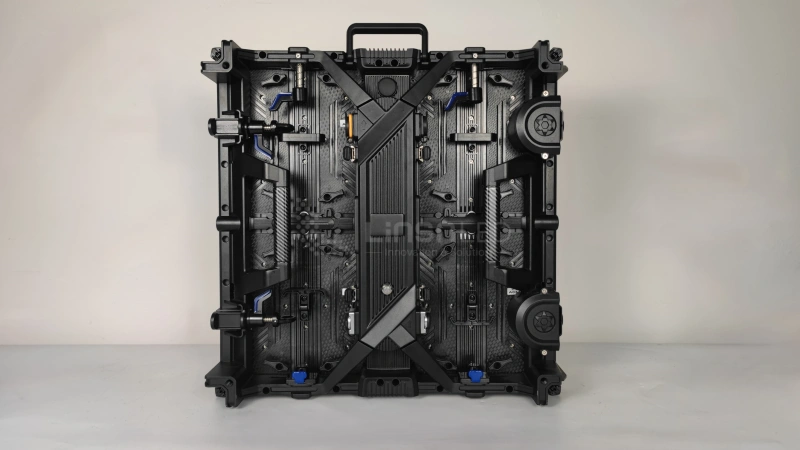

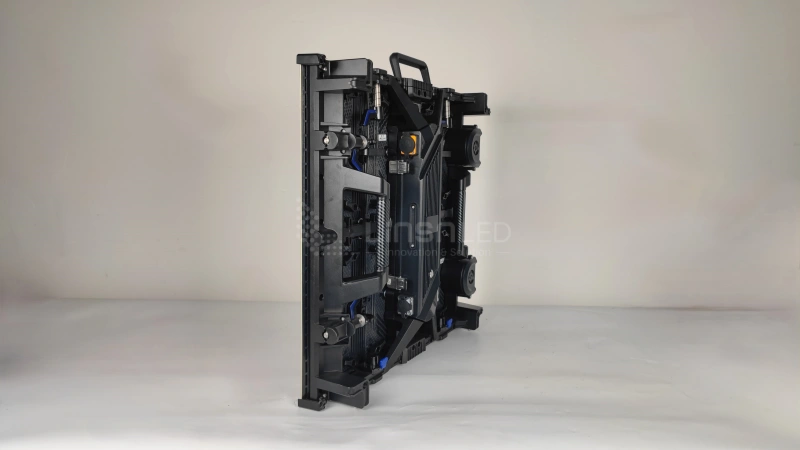

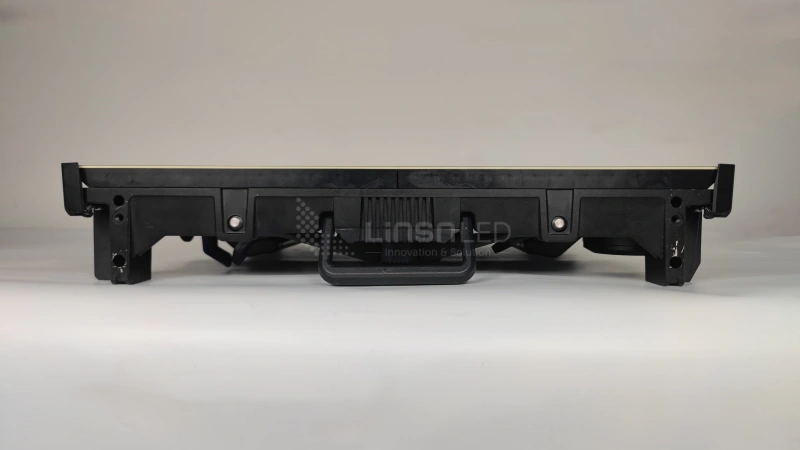

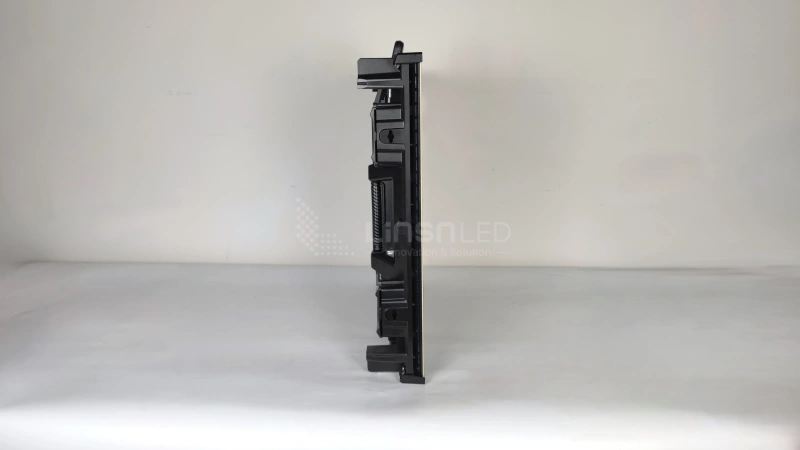

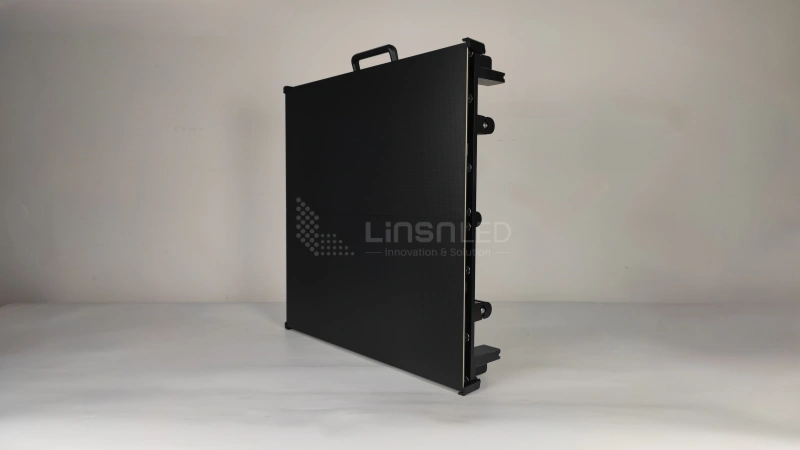

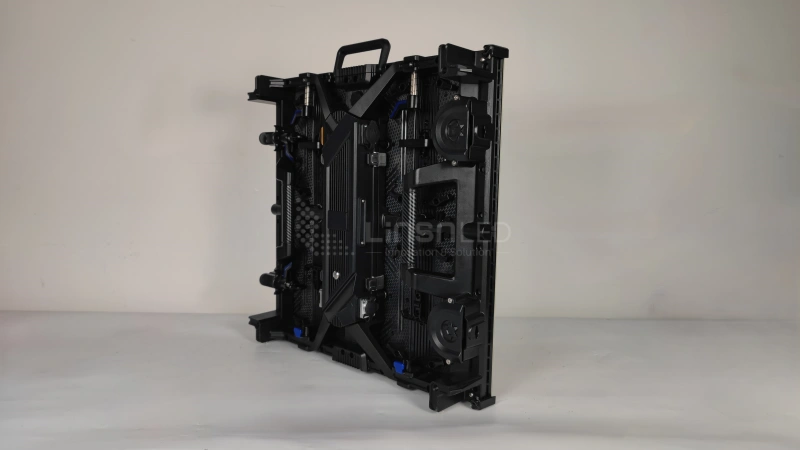

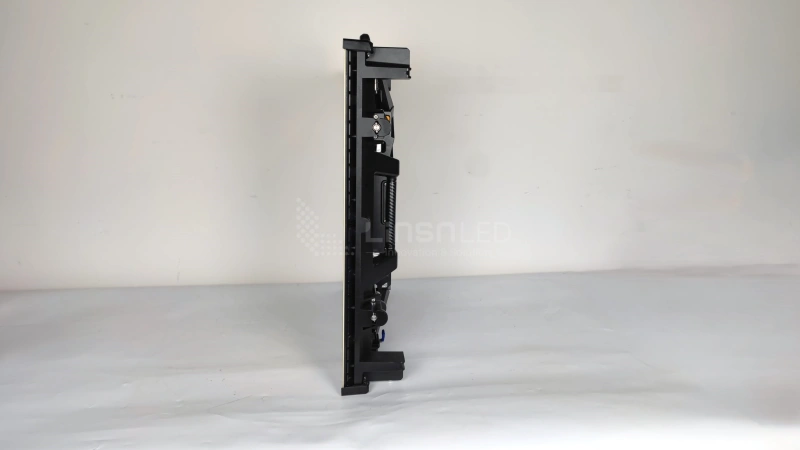

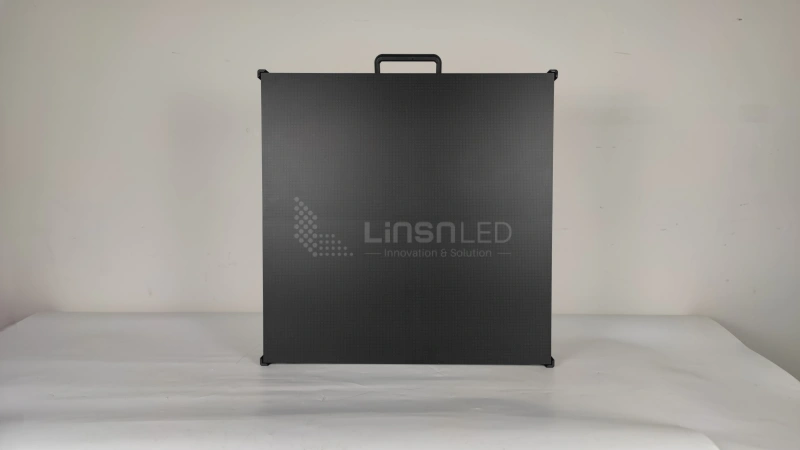

MY500 COB LED Display
Specification
| Pixel pitch | P1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Pixels per cabinet(500*500mm) | 320×320 (HxV) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) |
| Pixels per cabinet(500*1000mm) | 320×640 (HxV) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) |
| LED lifetime | 100,000h | ||||
| Brightness | 600-800nits | ||||
| Module size | 250*250mm | ||||
| Module resolution | 160*160dots | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Refresh rate | 3840-7,680Hz | ||||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | ||||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | ||||
| Brightness uniformity | >98% | ||||
| Dimming | 0-100% | ||||
| Grey Level | 14 bits | ||||
| Avg Power consumption | 270 W/m² | ||||
| Max Power consumption | 450 W/m² | ||||
| Operation power voltage | 100-240V/50-60Hz | ||||
| Operational temperature | -10°C to +40°C/14°F to 104°F | ||||
| Operational humidity | 10-80% | ||||
| IP rating | IP50 for indoor | ||||
| Dimensions | 500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD) | ||||
| Weight | 6kg (500 x 500mm cabinet)/11kg (500 x 1000 mm cabinet) | ||||
| Serviceability | Frontal & rear service for indoor, rear service for outdoor. | ||||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | ||||
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet (500*500mm) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| Pixels per cabinet (500*1000mm) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness | Outdoor: 4500-5000 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 3840-7,680Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 384 W/m² | |||
| Max Power consumption | 640 W/m² | |||
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP65 for outdoor | |||
| Dimensions | 500 x 500 x 80 mm/500 x 1000 x 80 mm (WxHxD) | |||
| Weight | 6kg (500 x 500mm cabinet) / 11kg (500 x 1000mm cabinet) | |||
| Serviceability | Frontal & rear service for indoor, rear service for outdoor. | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
