ME500/1000 Series
Rental LED Display Soft Connection
- 500x500mm and 1000x1000mm cabinets
- P1.953/ P2.604/ P2.976/ P3.91/ P4.81mm
- Right-angle installation supported
- Front/rear service for indoor, rear for outdoor
- 3-year warranty with 5% spare parts included
ME Series Rental LED Screen
The Linsn LED ME Series is the latest rental LED screen with a sleek new design, integrating aesthetic elements and high-strength die-casting aluminum for enhanced durability and superior visual performance.
Innovative Structure
With cutting-edge design from Linsn LED's top domestic team, the ME Series incorporates unique technologies and innovative elements for a futuristic appearance and exceptional user experience.
Lightweight and Thin Design
Weighing just 7.25kg for the 500x500mm cabinet and 12.5kg for the 500x1000mm cabinet, with a thickness of only 80mm, this lightweight and thin structure ensures easy handling, transport, and installation. The reduced labor costs offer significant savings.
Efficient Maintenance
Designed for both front and rear access for indoor setups and rear access for outdoor use, panels can be easily removed within 5 seconds using front-side tools. Magnetic panels enhance convenience during maintenance, reducing labor time and costs.
Right-Angle Installation Support
The ME Series supports 90° right-angle installations, making it ideal for complex architectural designs and unique applications.

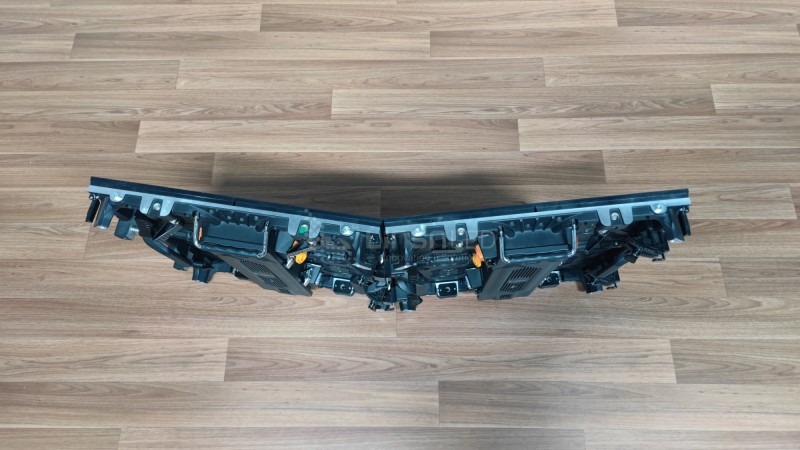

Curved Installation Flexibility
The ME Series allows for curved installations with 2.5° intervals, accommodating angles from -10° to 15°. A full circular display requires 36 cabinets, offering design flexibility and creativity.
Seamless Visual Experience
High-precision aluminum cabinet frames ensure seamless splicing for stunning image quality from any angle. The result is a smooth, immersive viewing experience with sharp and clear visuals.
Corner Protection
Each cabinet is equipped with corner protectors, safeguarding the LED panels during transport and installation, ensuring longevity and durability throughout their lifespan.
Product Videos

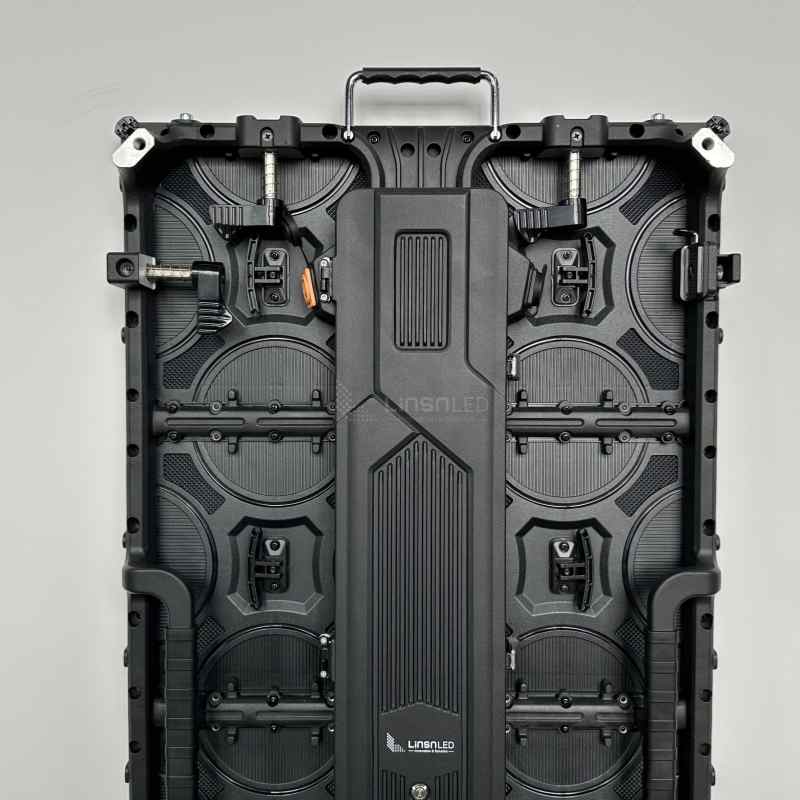

Product Images
Specification
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Pixels per cabinet(500*500mm) | 256×256 (HxV) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) |
| Pixels per cabinet(500*1000mm) | 256×512 (HxV) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness | Indoor: 600-800 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 128*128dots | 96*96dots | 84*84dots | 64*64dots |
| Refresh rate | 3840-7,680Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 200 W/m² | 200 W/m² | 225 W/m² | 225 W/m² |
| Max Power consumption | 400 W/m² | 400 W/m² | 450 W/m² | 450 W/m² |
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP50 for indoor, IP65 for outdoor | |||
| Dimensions | 500 x 500 x 80mm/500 x 1000 x 80mm (WxHxD) | |||
| Weight | 7.25kg (500 x 500mm cabinet)/12.5kg (500 x 1000mm cabinet) | |||
| Serviceability | Frontal & rear service for indoor, rear service for outdoor. | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH |
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixels per cabinet(500*500mm) | 192×192 (HxV) | 168×168 (HxV) | 128×128 (HxV) | 104×104 (HxV) |
| Pixels per cabinet(500*1000mm) | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| LED lifetime | 100,000h | |||
| Brightness | Outdoor: 4500-5000 nits | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 3840-7,680Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 320 W/m² | 320 W/m² | 320 W/m² | 320 W/m² |
| Max Power consumption | 640 W/m² | 640 W/m² | 640 W/m² | 640 W/m² |
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP50 for indoor, IP65 for outdoor | |||
| Dimensions | 500 x 500 x 80 mm/500 x 1000 x 80 mm(WxHxD) | |||
| Weight | 7.25kg (500 x 500mm cabinet) / 12.5kg (500 x 1000mm cabinet) | |||
| Serviceability | Frontal & rear service for indoor, rear service for outdoor. | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH |
