MA640 PRO
Fine Pixel Pitch LED Display

ma640 pro
  • 640×320mm LED Cabinet
  • Durable Hard Connection for Easy Maintenance
  • Supports Front and Rear Maintenance
  • Fine Pixel Pitches: P1.25, P1.538, and P1.86
  • Ultra-slim (39mm) and Lightweight (3.4kg) Design
  • 3-Year Warranty and 5% Spare Parts
Contact us
ma640 pro

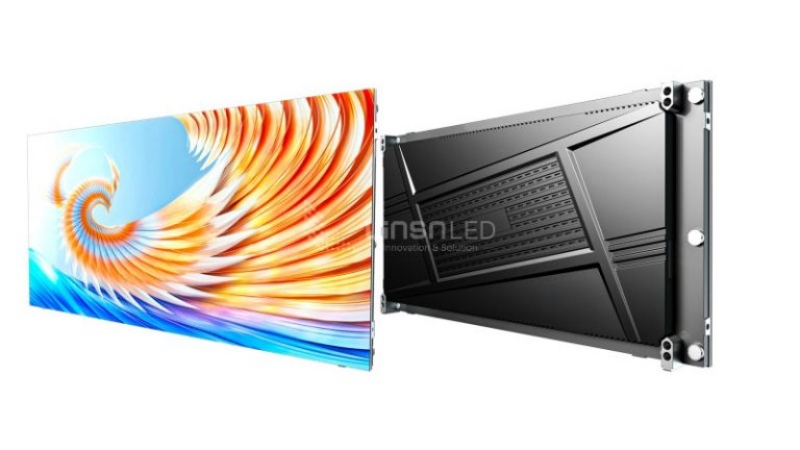

MA640 PRO thin and light die-casting aluminum design

Lightweight and Ultra-Thin Die-Cast Aluminum Cabinet

The MA640 PRO cabinet measures 640×320×39mm and weighs just 3.4kg, making it exceptionally lightweight and thin. Its die-cast aluminum design simplifies both installation and transportation, significantly reducing labor costs.
Get Quotation
ma640 pro screen

Fine Pixel Pitch for High Definition

Available in P1.25, P1.538, and P1.86 pixel pitches, this cabinet delivers high-definition images and exceptional visual clarity. It supports light panel flash calibration data storage and operates at a 3840Hz refresh rate, ensuring consistent brightness and color performance.
Get Quotation
ma640 pro modular designs

Modular Design for Easy Maintenance

The modular structure of the MA640 PRO simplifies both assembly and maintenance. It features a 2x2 magnetic module, a three-in-one integrated HUB, a magnetic back cover, and a die-cast aluminum frame. The power supply, adapter board (HUB), and receiving card are combined into one unit, making maintenance straightforward and efficient.
Get Quotation
ma640 pro dual services

Dual-Sided Service Access

This cabinet allows for dual service access, reducing time and effort during installation. It features a vacuum suction-based front maintenance tool, preventing accidental damage caused by weak magnetic forces that could lead to LED lamp collisions.
Get Quotation
MA640 PRO hard connection

Reliable Hard Connection Design

The hard connection between the LED cabinet and modules enhances safety and reliability, reducing the risk of failure. This design supports fast, hassle-free installation without needing to distinguish between left and right components, and module replacement is both simple and quick.
Get Quotation
MA640 PRO high heat dissipation

Enhanced Heat Dissipation and Secure Back Cover

The cabinet includes ventilation holes for rapid heat dissipation. Its magnetic suction-fixed back cover adds stability, with the option to choose a design without a back cover for even better airflow.
Get Quotation
multiple installation methods of ma640 pro

Versatile Installation Options

The MA640 PRO supports a variety of installation methods, including wall-mounted front installation without a steel structure, right-angle installation, and whole cabinet magnetic installation.
Get Quotation
high refresh rate of ma640 pro

High 3840Hz Refresh Rate

With a refresh rate of 3840Hz, the display refreshes rapidly to ensure smooth, fluid visuals, providing a responsive and seamless viewing experience.
Get Quotation

Product Videos

Get Quote Now!

Specification

Technical Parameters Pixel Pitch(mm) 1.25mm 1.538mm 1.86mm
LED SMD1010 SMD1212 SMD1515
Module Resolution(dots) 256*128 208*104 172*86
Module Size(mm) 320*160
Cabinet Resolution(dots) 512*256 416*208 344*172
Cabinet Size(mm) 640mm*320mm*39 (WxHxD)
Pixel Density(dots/㎡) 640000 422500 288906
Serviceability Full front/ rear service
Protection Level(Front/Rear) IP30/IP30
Weight 3.4kg
Electrical Parameters Avg Power consumption (W/㎡) 100
Max Power consumption (W/㎡) 300
Operation power voltage AC100~240V，50/60Hz
Optical Parameters Grey Level (bit) 12~14
Brightness(cd/㎡) 400-450
Contrast 6000：1
Color Gamut ≥90% NTSC
Refresh Rate (Hz) 3840
Hor. viewing angle 160°
Vert. viewing angle 140°
Brightness Uniformity ≥95%
