MA600 Series
16:9 600×337.5mm HD LED Screen
- Cabinet Size: 600×337.5mm
- High Refresh Rate: 3840Hz
- Premium Indoor LED Display
- CE, RoHS, FCC Approved
- Frontal Service Design
- 3-Year Warranty with 3% Spare Parts Included
300x168.75mm Modules
Equipped with high-quality, unique LED modules that offer features like temperature and voltage detection, as well as dot-to-dot correction.
16:9 Golden Ratio Design
With dimensions of 600×337.5mm, the MA600 cabinet adheres to a 16:9 aspect ratio. Its ultra-lightweight and ultra-thin design enhances its appeal.
Ultra HD Visual Experience
The MA600 HD LED cabinet features a 16:9 golden ratio, 3840Hz refresh rate, and fine pixel pitch, making it an ideal choice for high-end indoor LED displays.
Optimal Cabinet Design
The MA600 series showcases a perfect cabinet design with an attractive appearance and user-friendly layout. Quick installation and easy maintenance ensure a visually satisfying experience.
Ultra Lightweight
Weighing only 4.65kg, the ultra-lightweight design enables flawless visuals from any angle. Constructed with a high-precision aluminum cabinet frame, it ensures seamless image and video splicing for the ultimate visual experience.
Wide Viewing Angle
Enjoy a horizontal viewing angle of up to 170°, allowing you to reach a broader audience.
Frontal Service Design

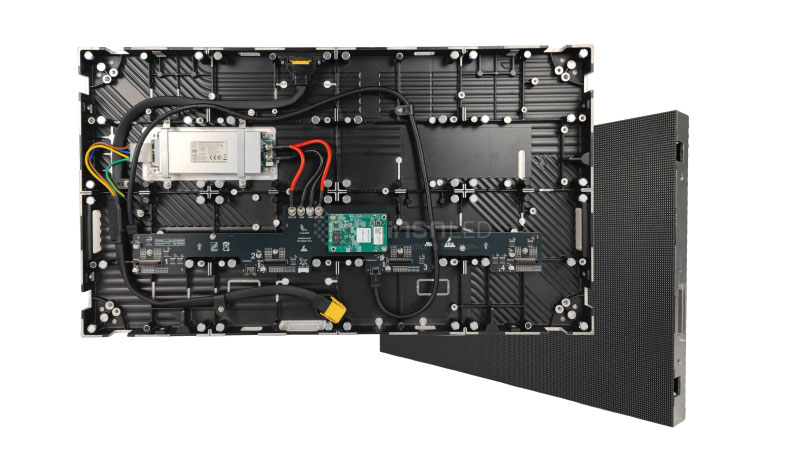

The frontal service design provides easy access to LED receiving cards, HUB cards, power supplies, and LED modules. Magnetic assembly features enable front access to the modules.
High Flatness
Our LED display ensures seamless splicing with quick locking and simplified internal wiring for maintenance. With no gaps, it delivers stunning 16K, 8K, 4K, and FHD visual displays.
Product Videos
Product Images
Specification
| Pixel Pitch (mm) | P1.25 | P1.56 | P1.87 | P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 |
| Module Resolution (Pixel) | 240×135 | 192×108 | 160×90 | 120*68 |
| Module Size (mm) | 300×168.75 | 300×168.75 | 300×168.75 | 300×168.75 |
| Driving Mode (Duty) | 1/60 | 1/64 | 1/45 | 1/30 |
| Cabinet Size (mm) | 600×337.5 | |||
| Cabinet Weight (KG) | 4.65 | |||
| Brightness (CD/㎡) | 400~600 | |||
| Viewing Angle (°) | 170 | |||
| Gray Grade (Bits) | 16 | 16 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | |||
| Max. Power Consumption (W/㎡) | 450W | |||
| Avg. Power Consumption (W/㎡) | 270W | |||
| Frame Frequency (Hz) | ≥60 | |||
| Refresh Frequency (Hz) | ≥3,840 | |||
| Working Temperature (ºC) | -10～+60 | |||
| Lifetime (Hours) | 100000 | |||
