MA480 Series
High-Quality Fine Pitch LED Display
- 480x480mm Cabinet Size
- Front Maintenance Design
- SMD 3-in-1 LED Encapsulation Technology
- Die-Cast Aluminum Module
- 3-Year Warranty with 5% Spare Parts Included
- CE and RoHS Certified
1:1 Ratio Design
The MA480 features a 1:1 aspect ratio with a compact 480x480mm dimension. Its ultra-light and ultra-thin cabinet design enhances portability.
Ultra HD Visual Effect
Experience stunning visuals with single-point color correction technology, delivering true color accuracy and a smaller pixel pitch for a captivating view.
Ultra Lightweight
Weighing just 5.5kg, the high-precision aluminum cabinet ensures seamless image and video splicing, providing an exceptional visual experience from any angle.

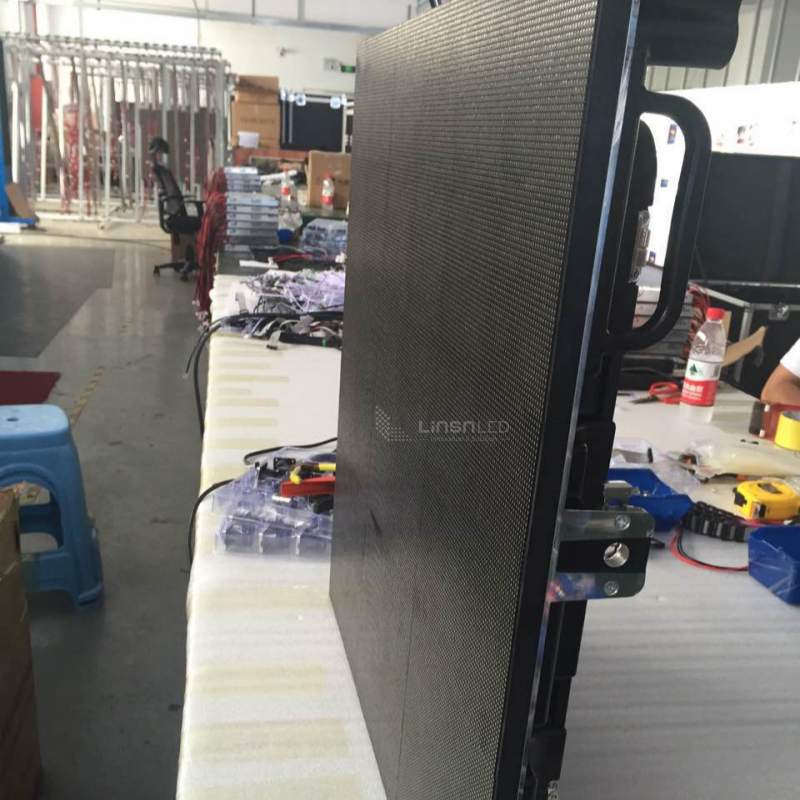

Perfect Cabinet Design
Aesthetically pleasing with an ergonomic layout, this cabinet allows for quick installation and maintenance, enhancing your viewing experience.
Frontal Service Design
The frontal service design accommodates LED receiving cards, HUB cards, power supplies, and modules, featuring dual backup for power and signal reliability.
High-Quality Module
The innovative LED module measures 240x120/240mm, allowing for easy installation and replacement, while its ultra-thin design enhances versatility.
Seamless Splicing
Enjoy effortless seamless splicing with fast locking mechanisms and simple internal wiring, ensuring a gapless visual display for a polished look.
Right-Angle LED Display Capability
With 45° angled edges, the 480x480mm series can be configured for right-angle displays, creating a squared LED screen.
Modular Design
The magnetic suction structure enables rapid maintenance and installation, improving efficiency by up to five times compared to traditional products, saving valuable maintenance time.
Product Videos
Product Images
Specification
| Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
| Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | 800 – 1000 nits | |||
| Module size | 240*240mm | |||
| Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |
| Refresh rate | 1920-3,840Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V/50-60Hz | |||
| Operational temperature | -10°C to +40°C/14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP50 for Indoor | |||
| Dimensions | 480 x 480 x 80 mm (WxHxD) | |||
| Weight | 5.5 kg | |||
| Serviceability | Front and back service | |||
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | |||
Send Us Message
If you have any LED display projects or technical problems regarding our LED display products. Please send us a message, we will reply to you in 24 hours.
ATTENTION: lf you bought LED Display & LED Module from other suppliers, Please get help from them directly.
