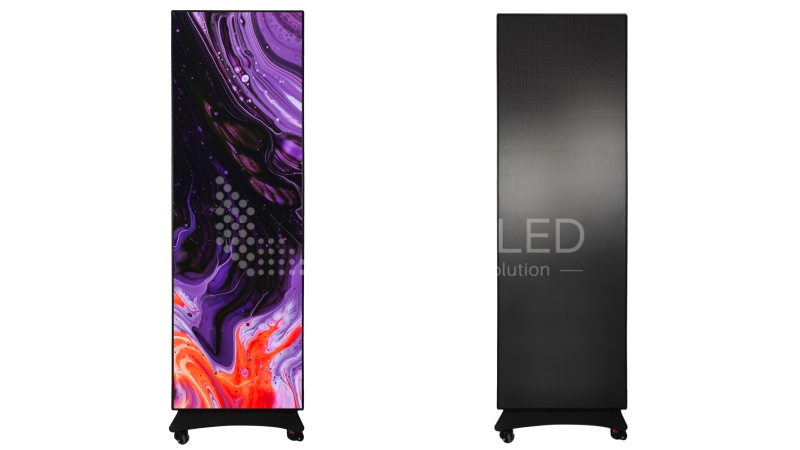

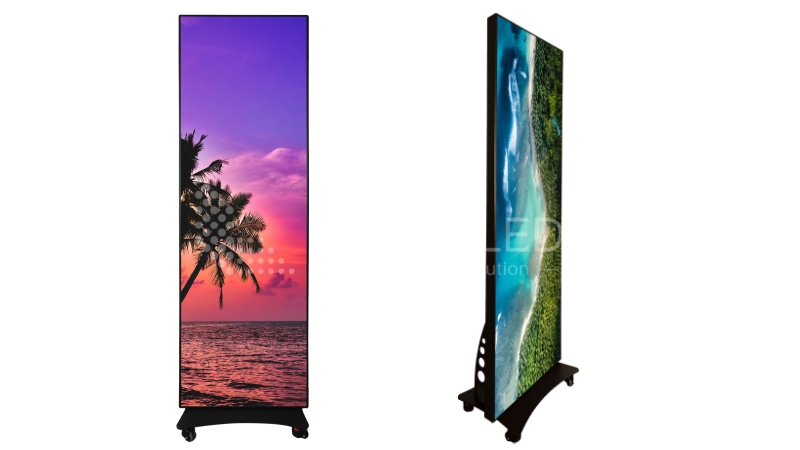

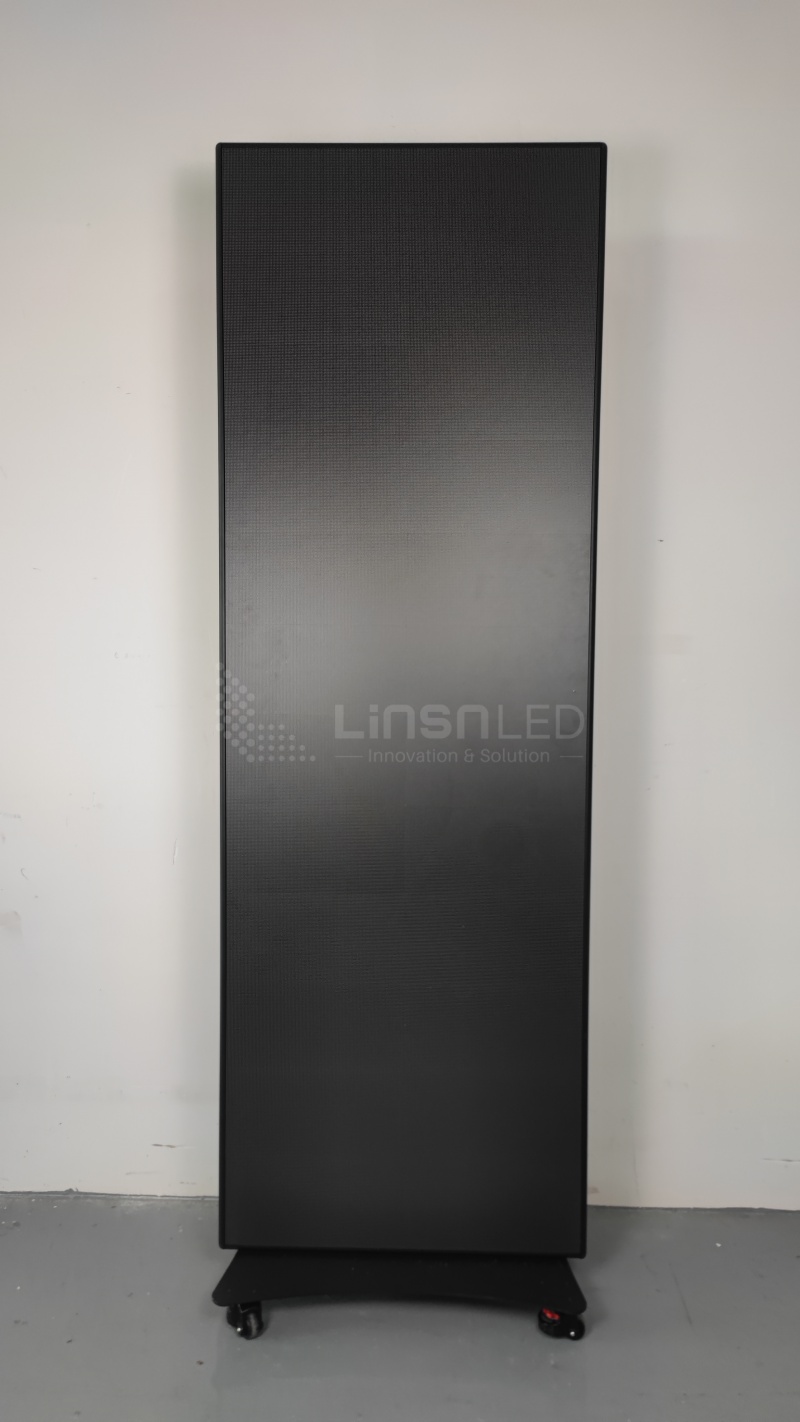

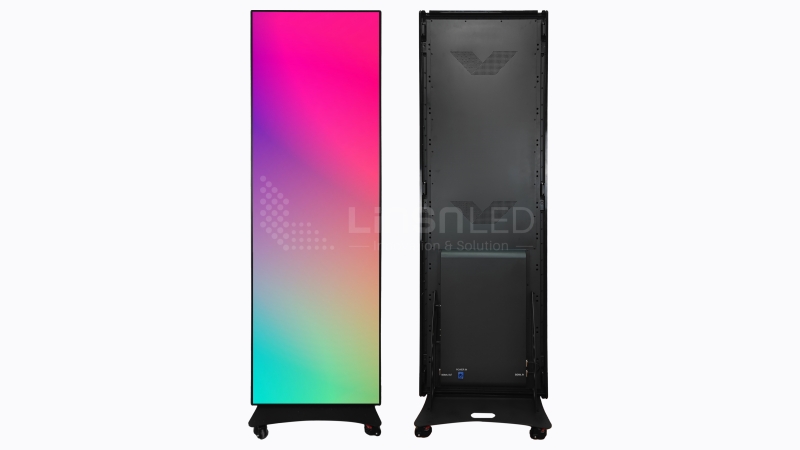

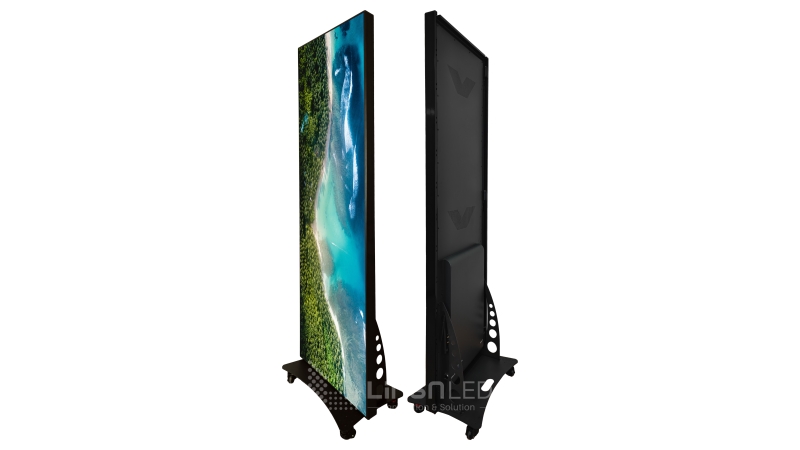

LC60C Series
LED Poster Display
- Available in P1.86 and P2.5mm (GOB LED)
- Easy Plug and Play Setup
- Sleek, Slim Design
- Eye-Catching Display Quality
- Control Via Mobile App
- Wi-Fi Connectivity for Remote Management

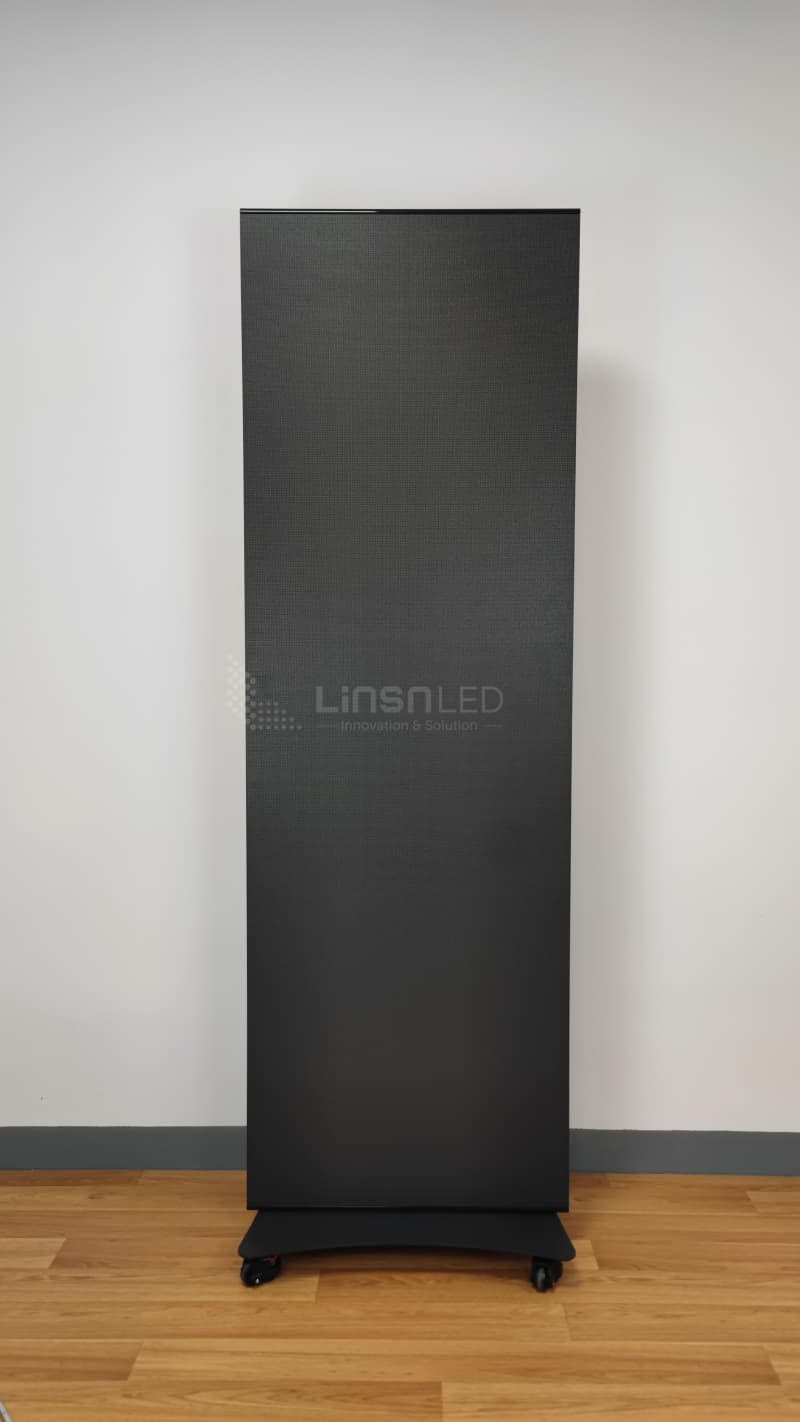

Dimensions & Portability

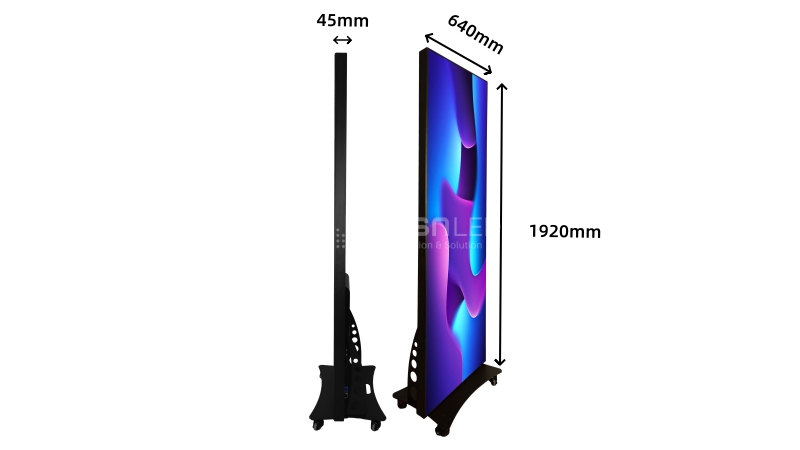

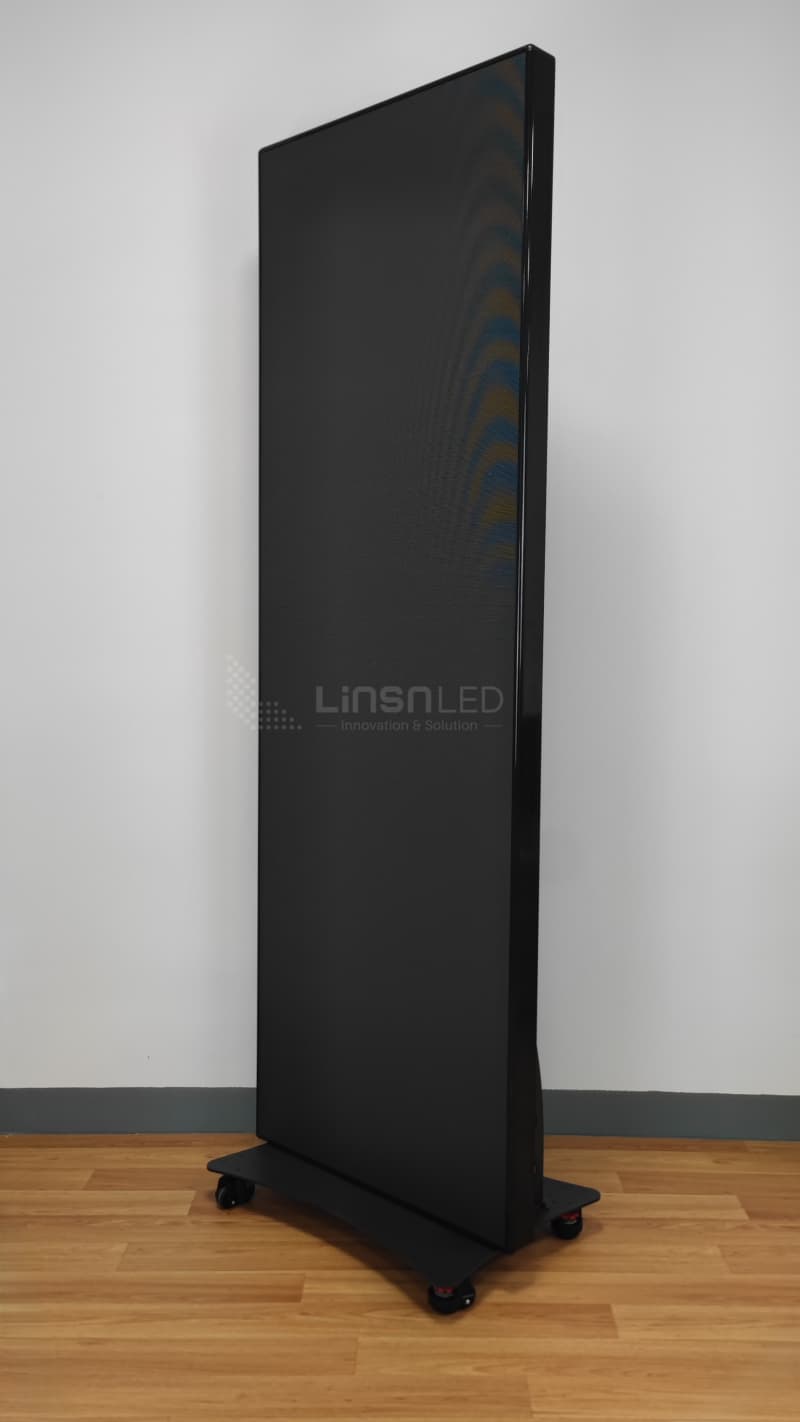

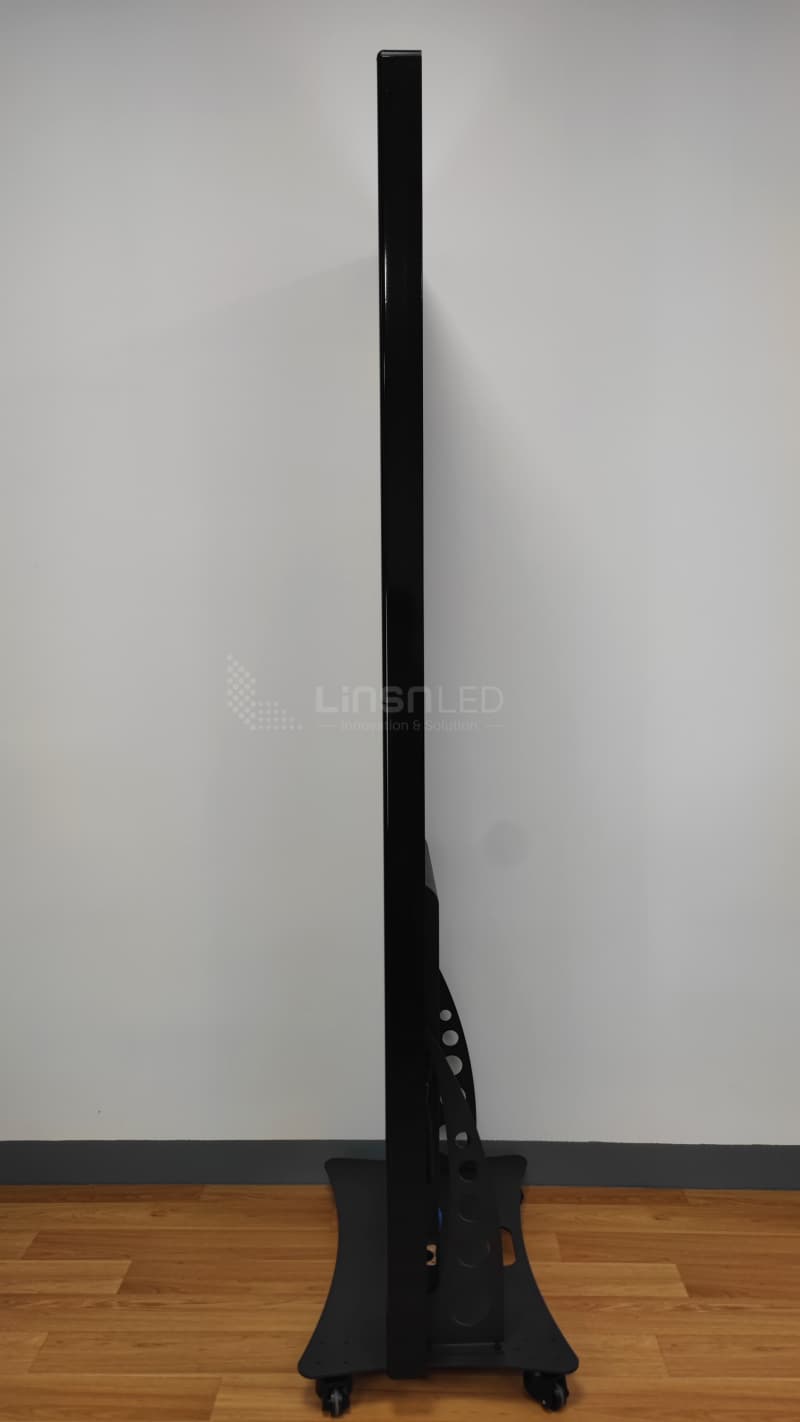

Measuring 640mm x 1920mm with a 10mm outer frame, this display is designed for an optimum viewing height and accommodates 320x160mm LED modules. Each panel weighs under 35kg, facilitating easy transport and minimizing labor costs. With a slim profile of just 45mm, the stylish design allows for flexible installation in various environments.

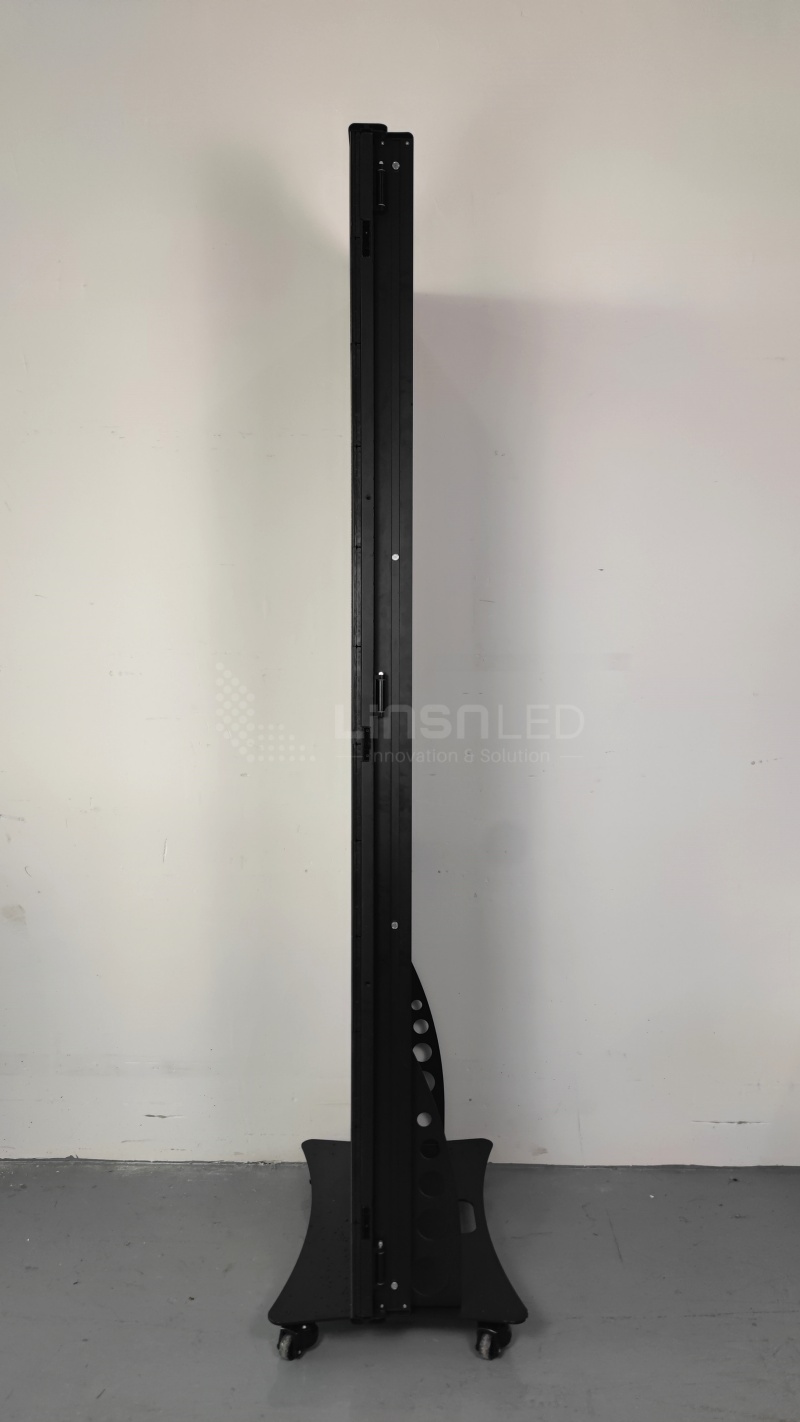

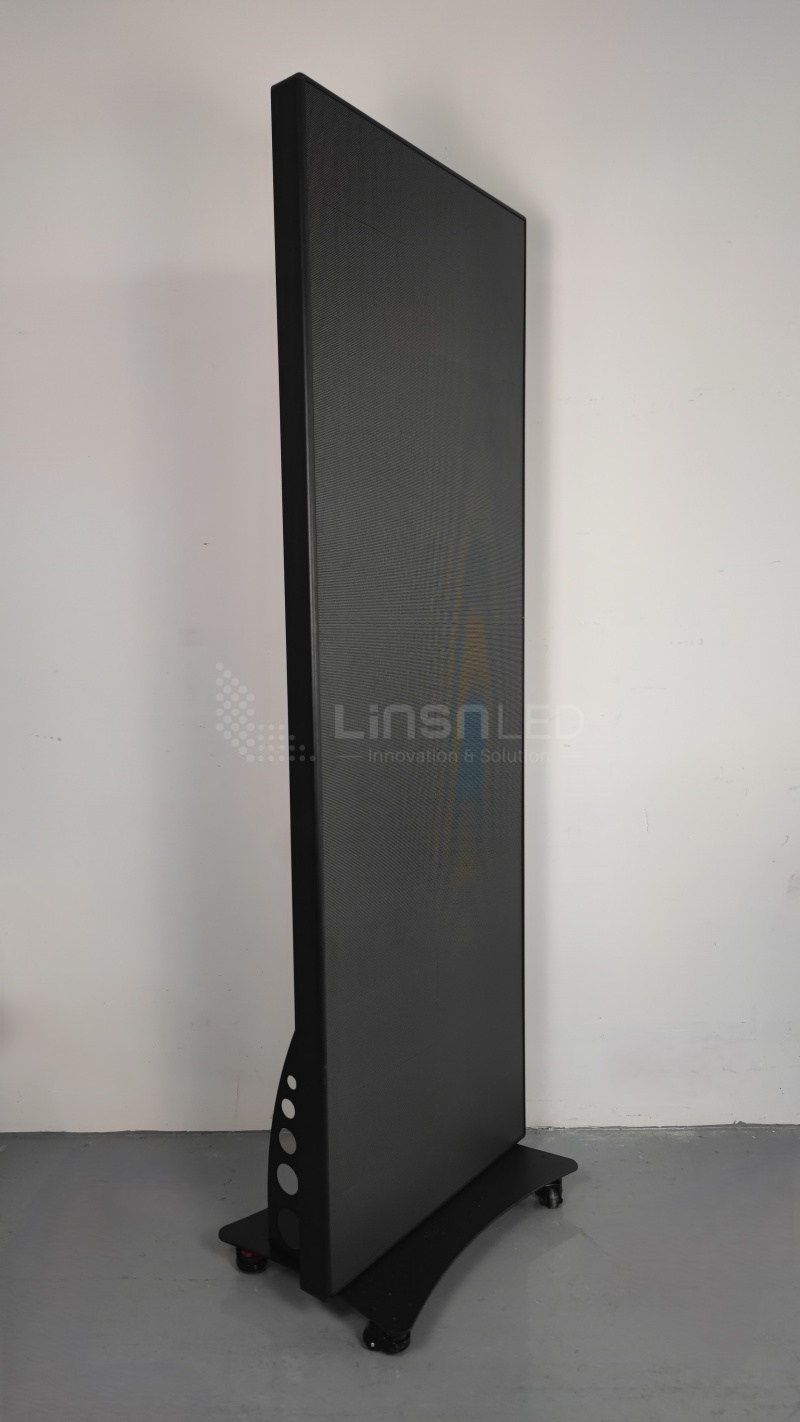

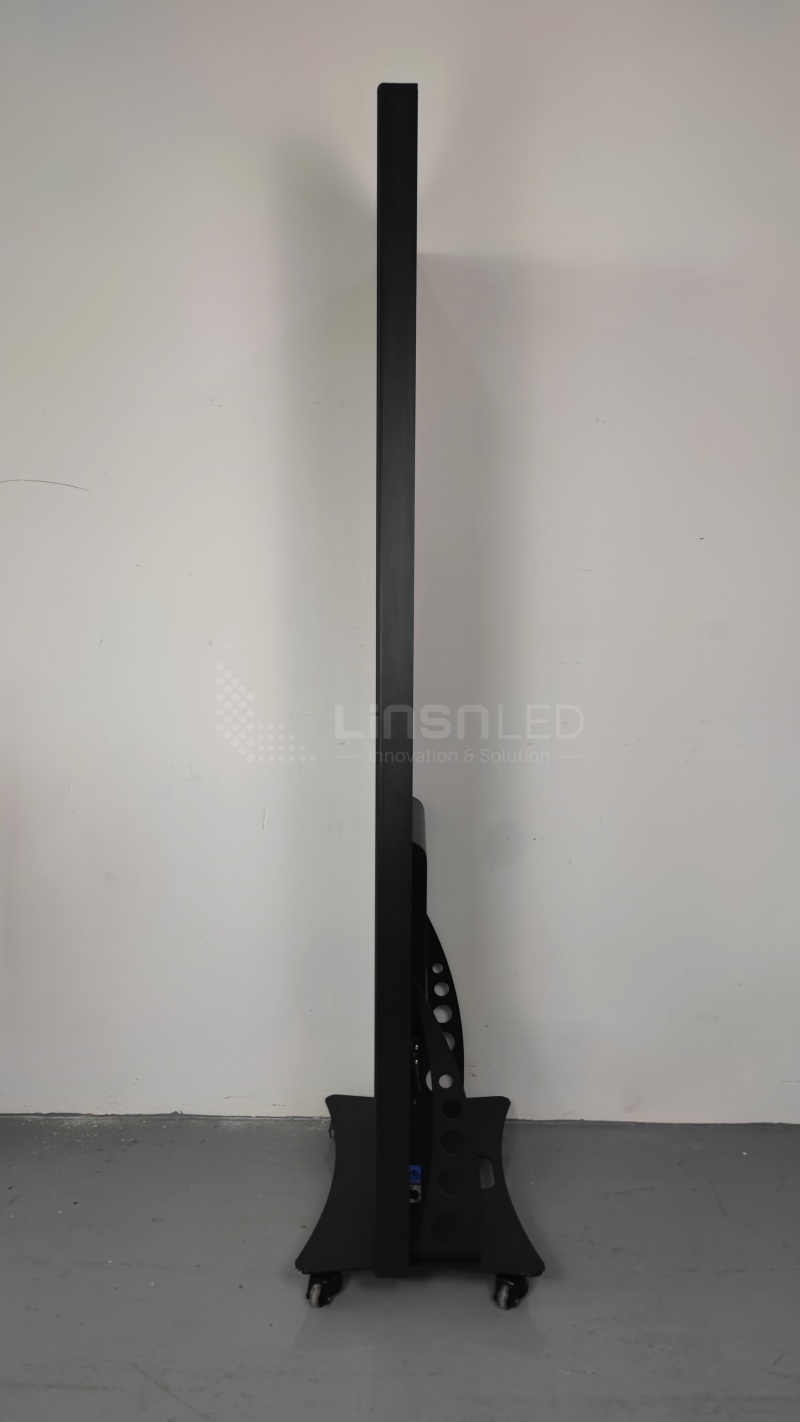

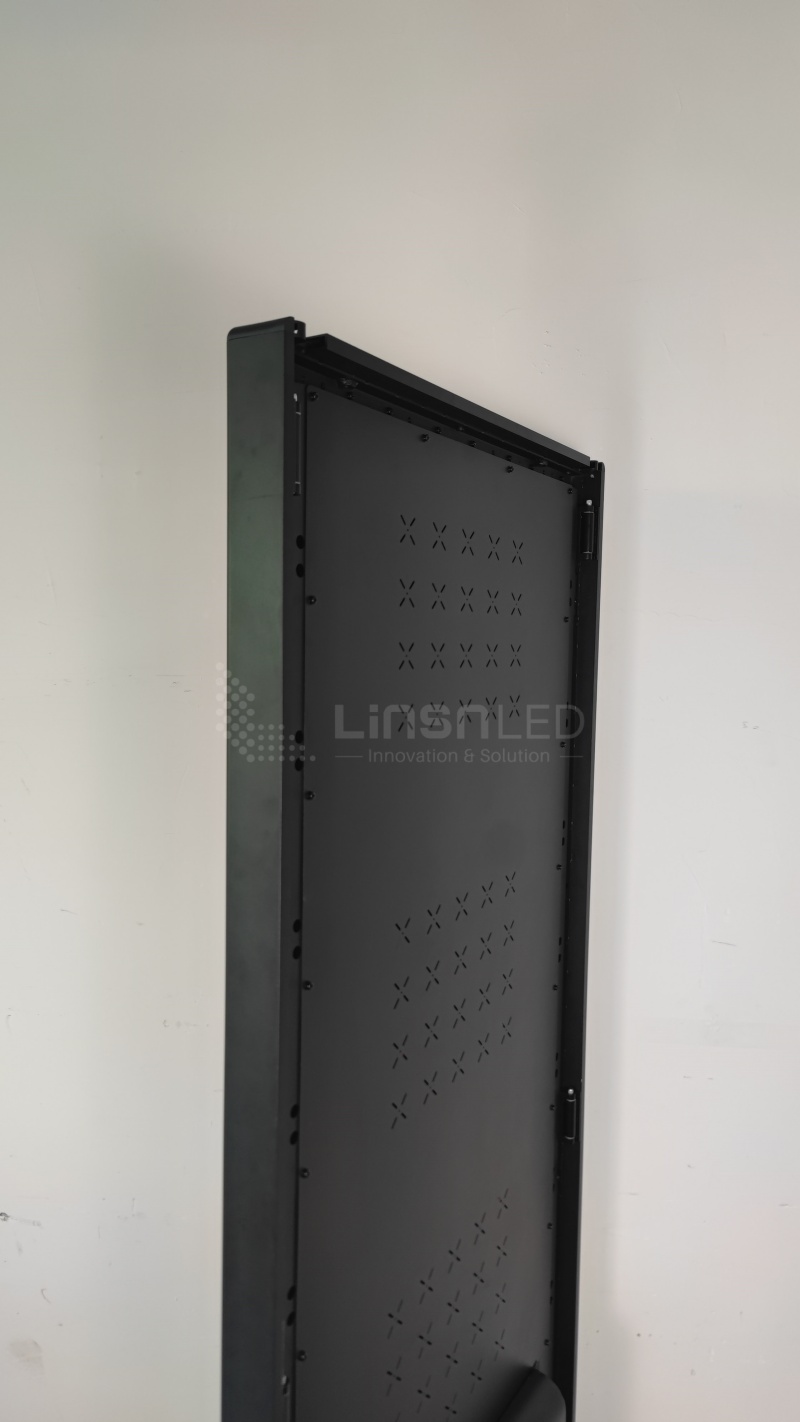

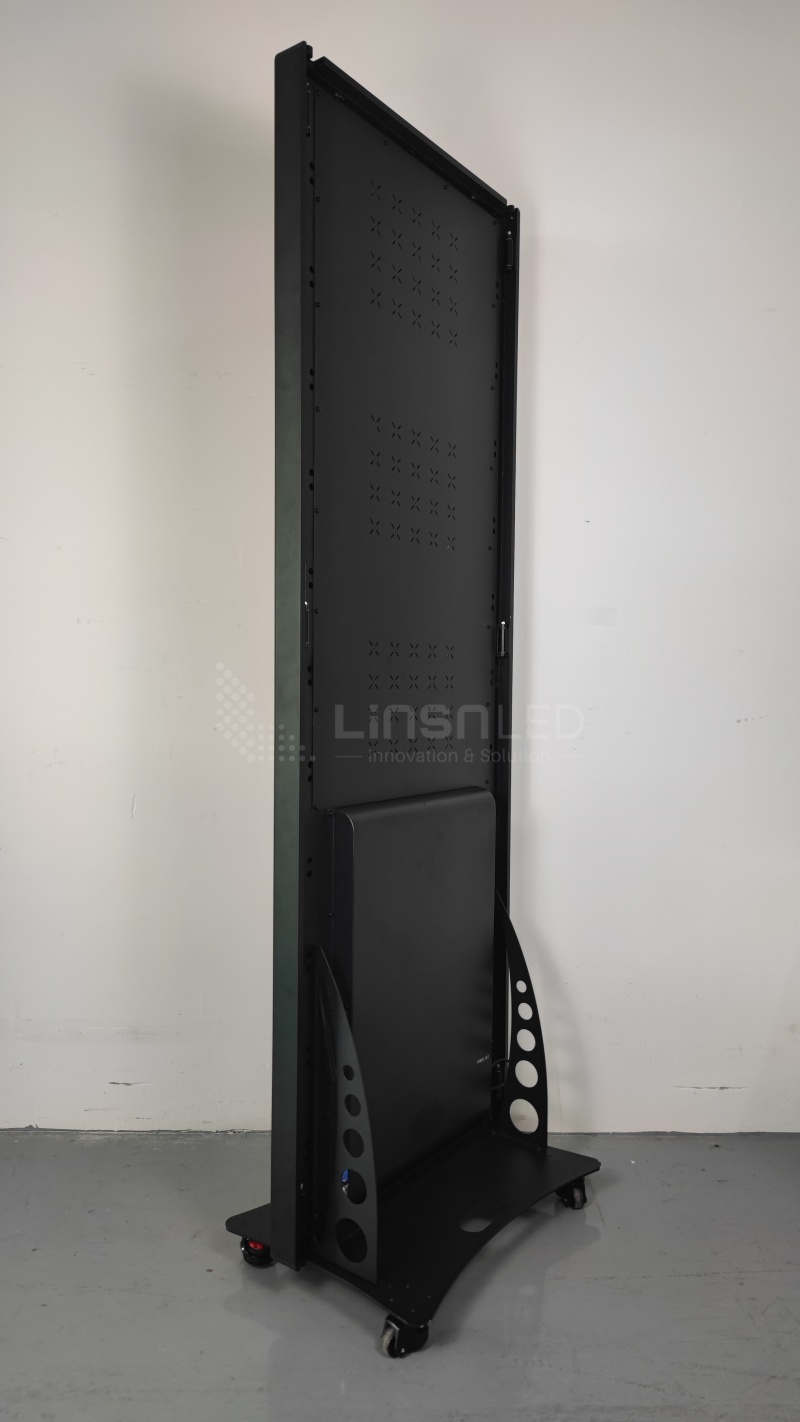

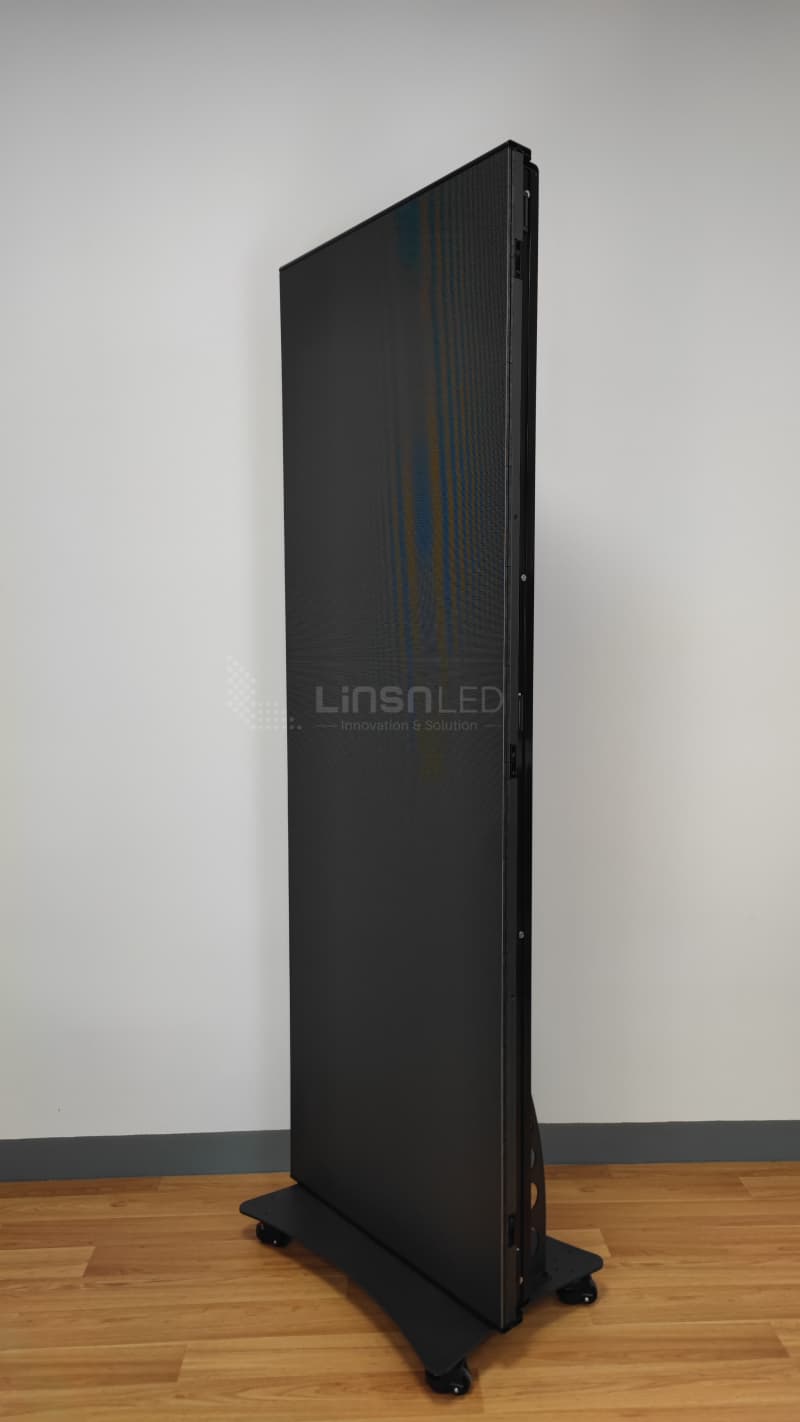

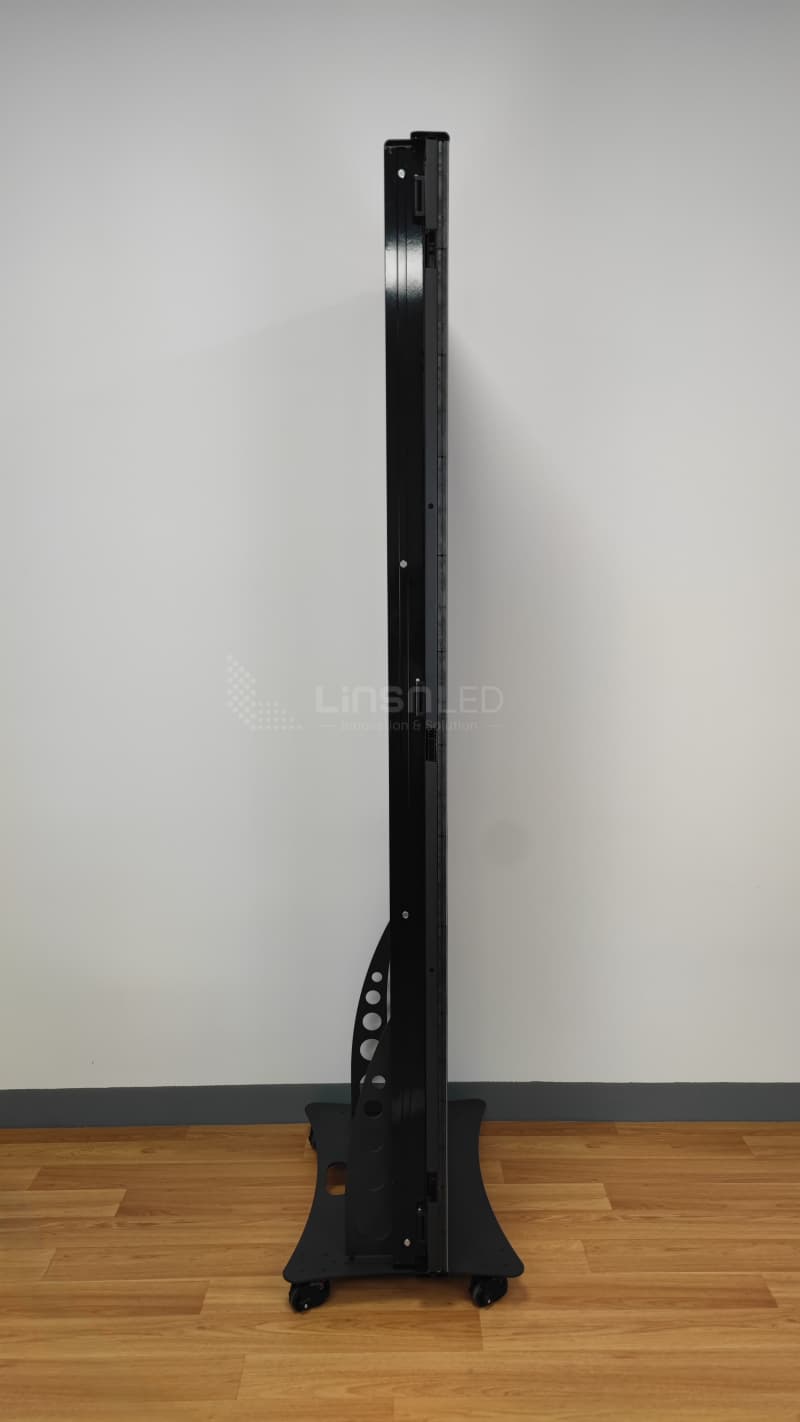

Slim & Lightweight Design

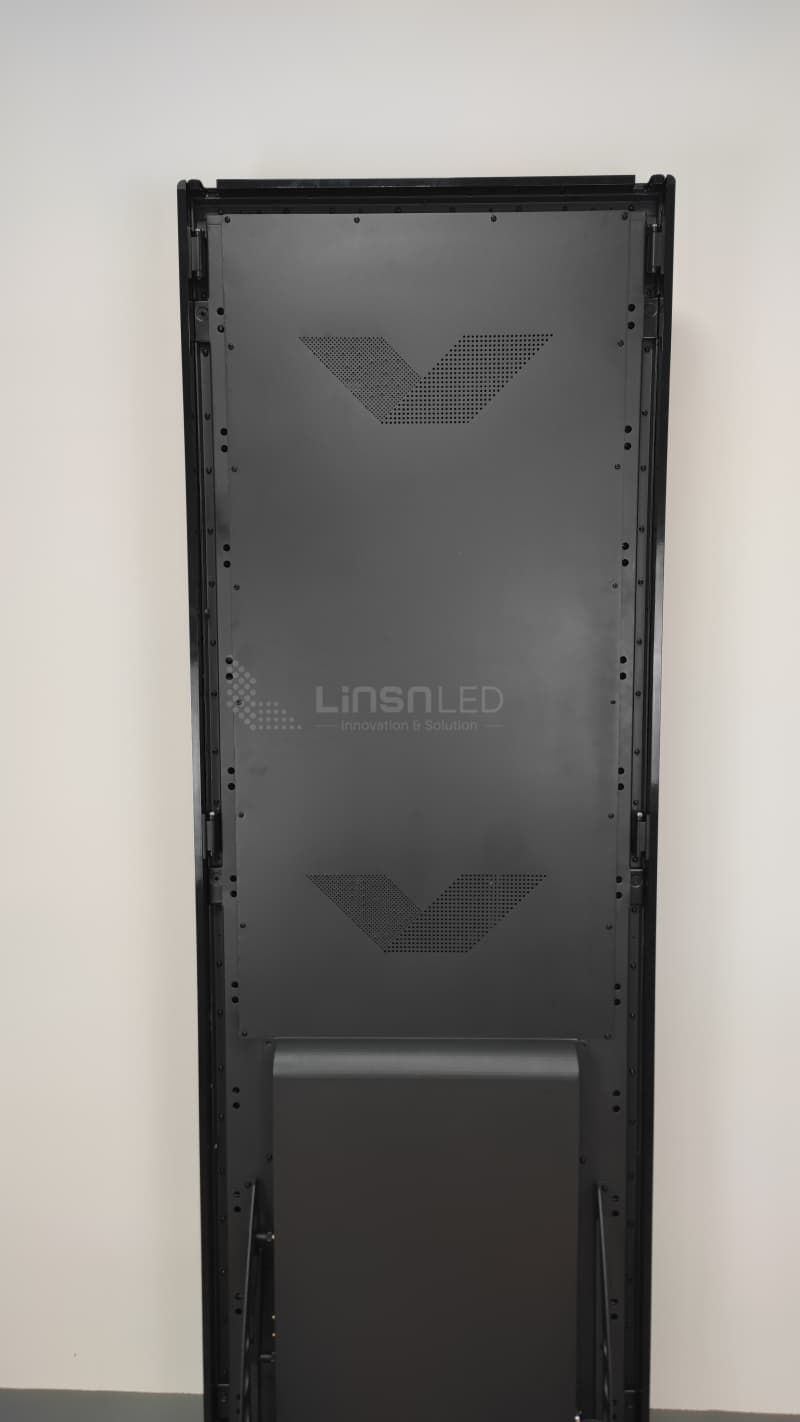

The LC60C LED Poster Screen boasts a lightweight construction, making the cabinet frame and LED components both reliable and portable. Its frameless design enhances mobility, making it ideal for compact spaces.

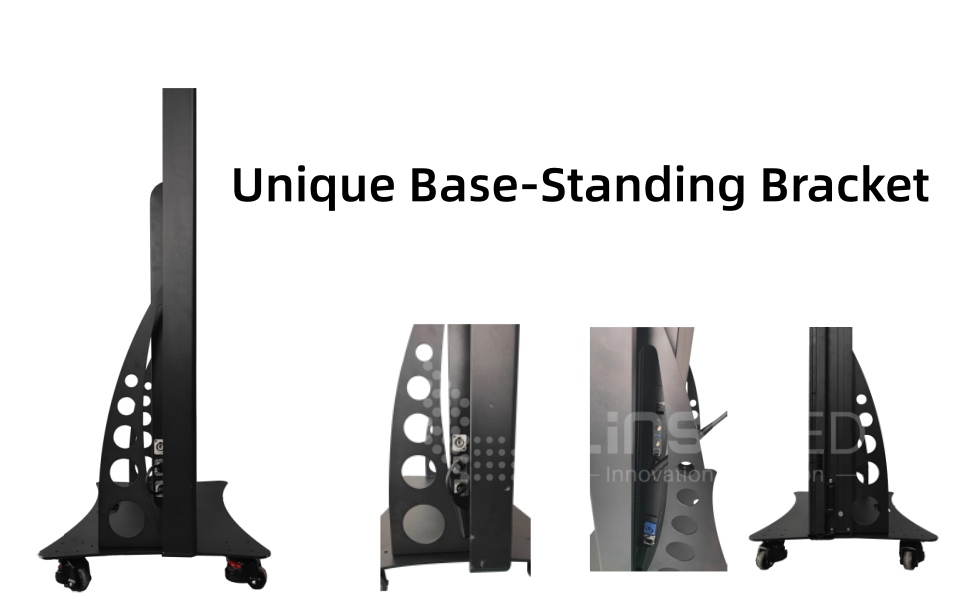

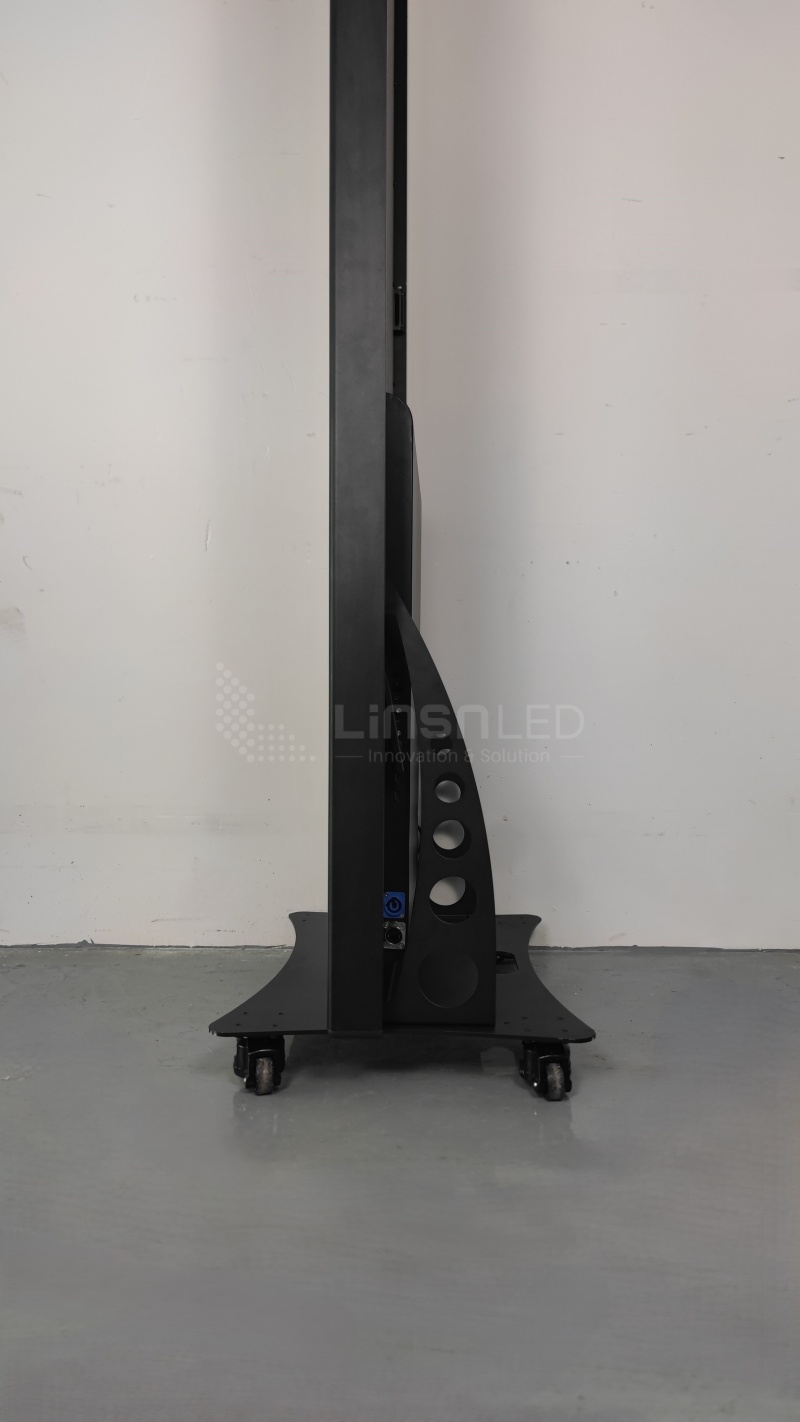

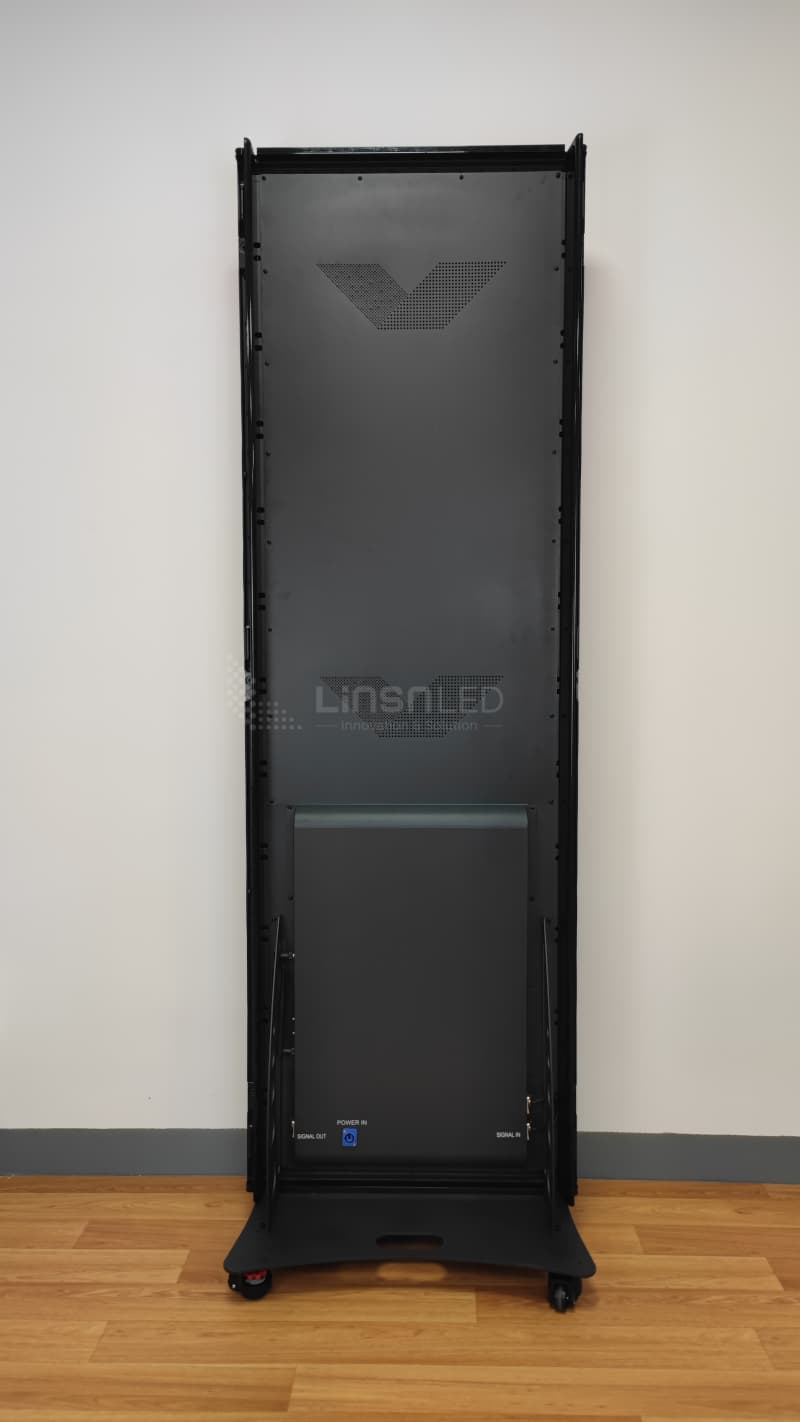

Unique Base-Standing Bracket

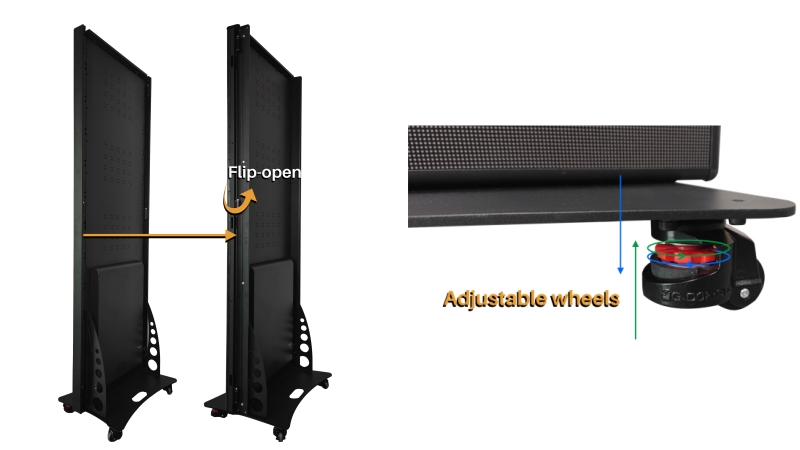

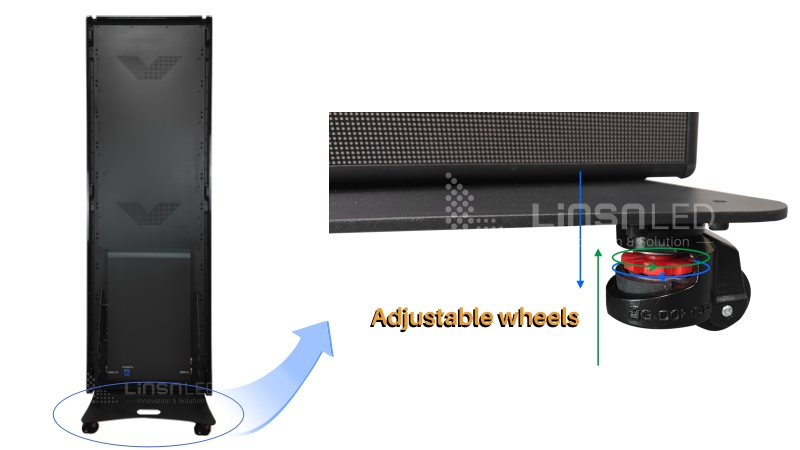

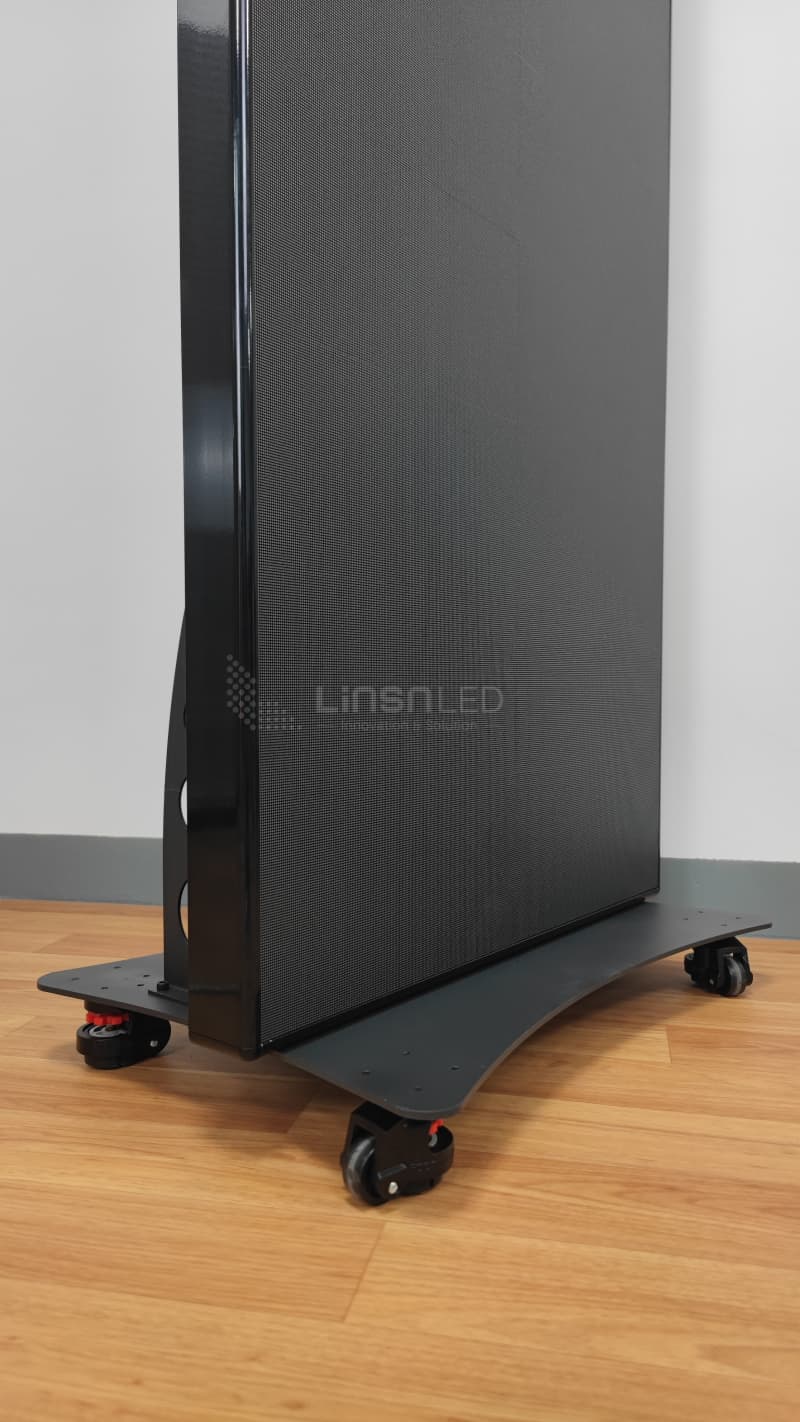

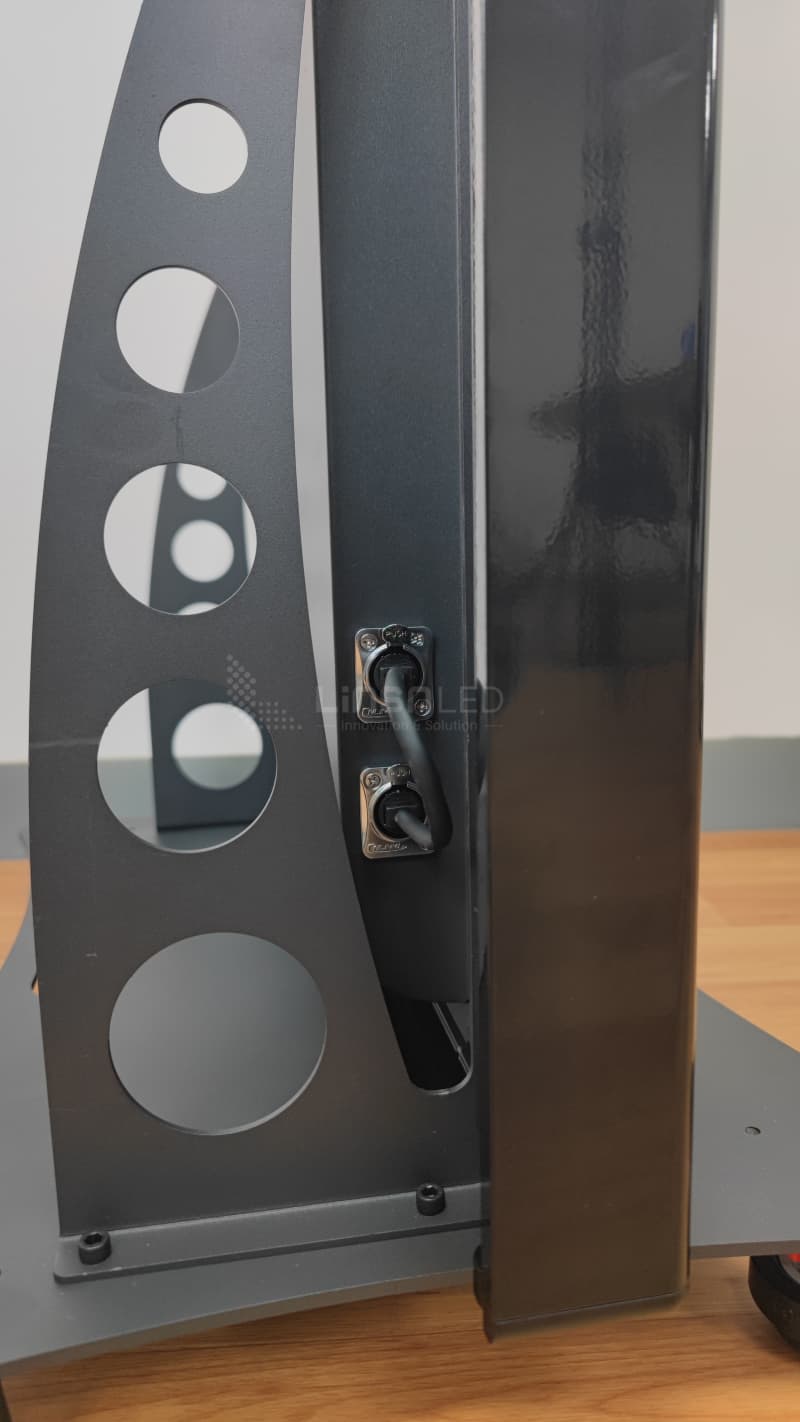

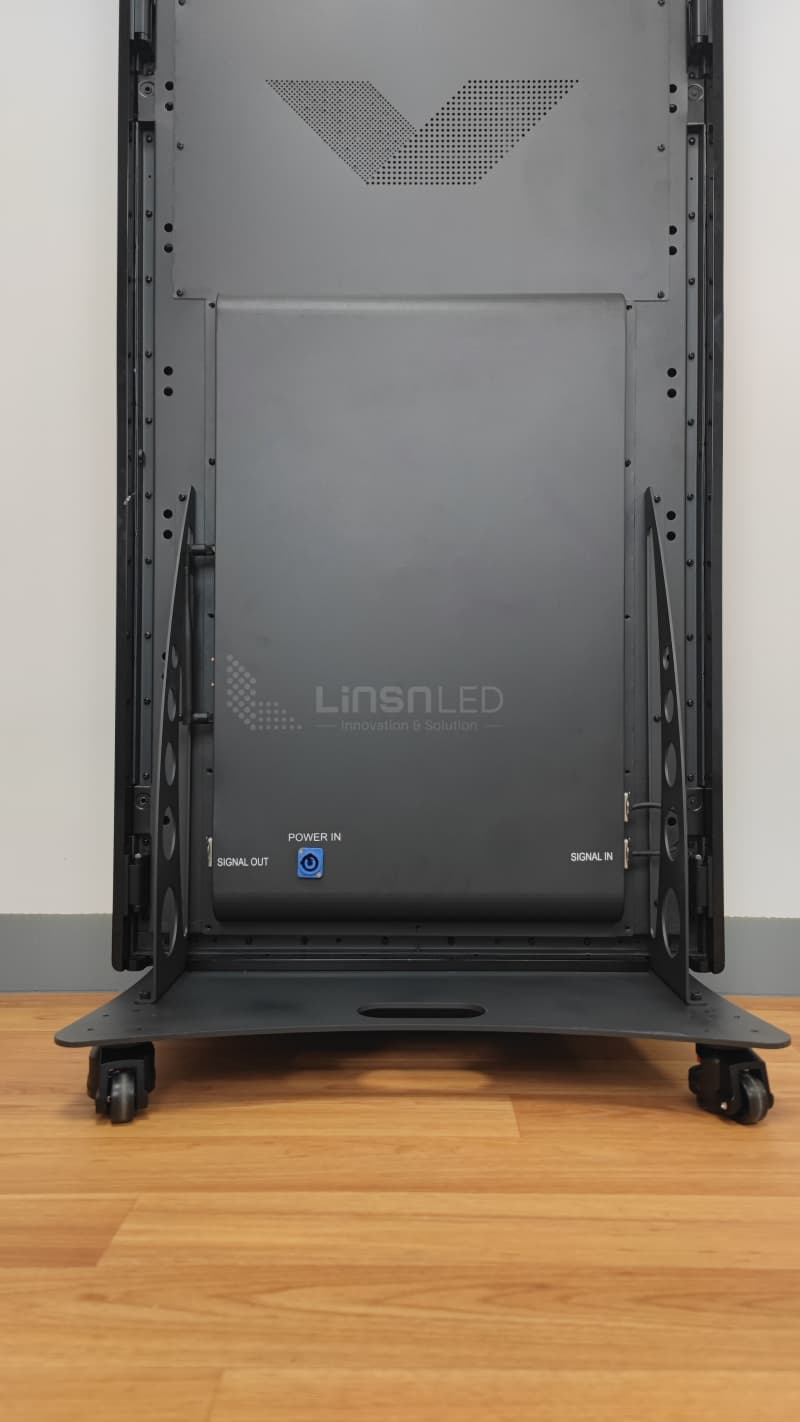

The base-standing bracket provides stable support for the LED poster, featuring four movable wheels that allow for easy rotation and seamless movement in any direction.
Exceptional Visual Quality
Equipped with high-quality LEDs and advanced driving ICs, the LC60C ensures a refresh rate of up to 2880Hz and a remarkable contrast ratio of 5000:1. With a brightness level of 1000 nits, it delivers stunning image quality that captivates viewers.

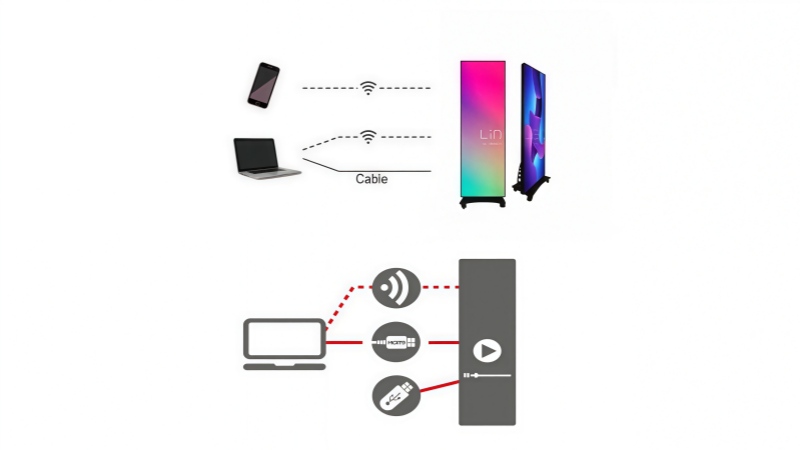

Smart Cloud Management

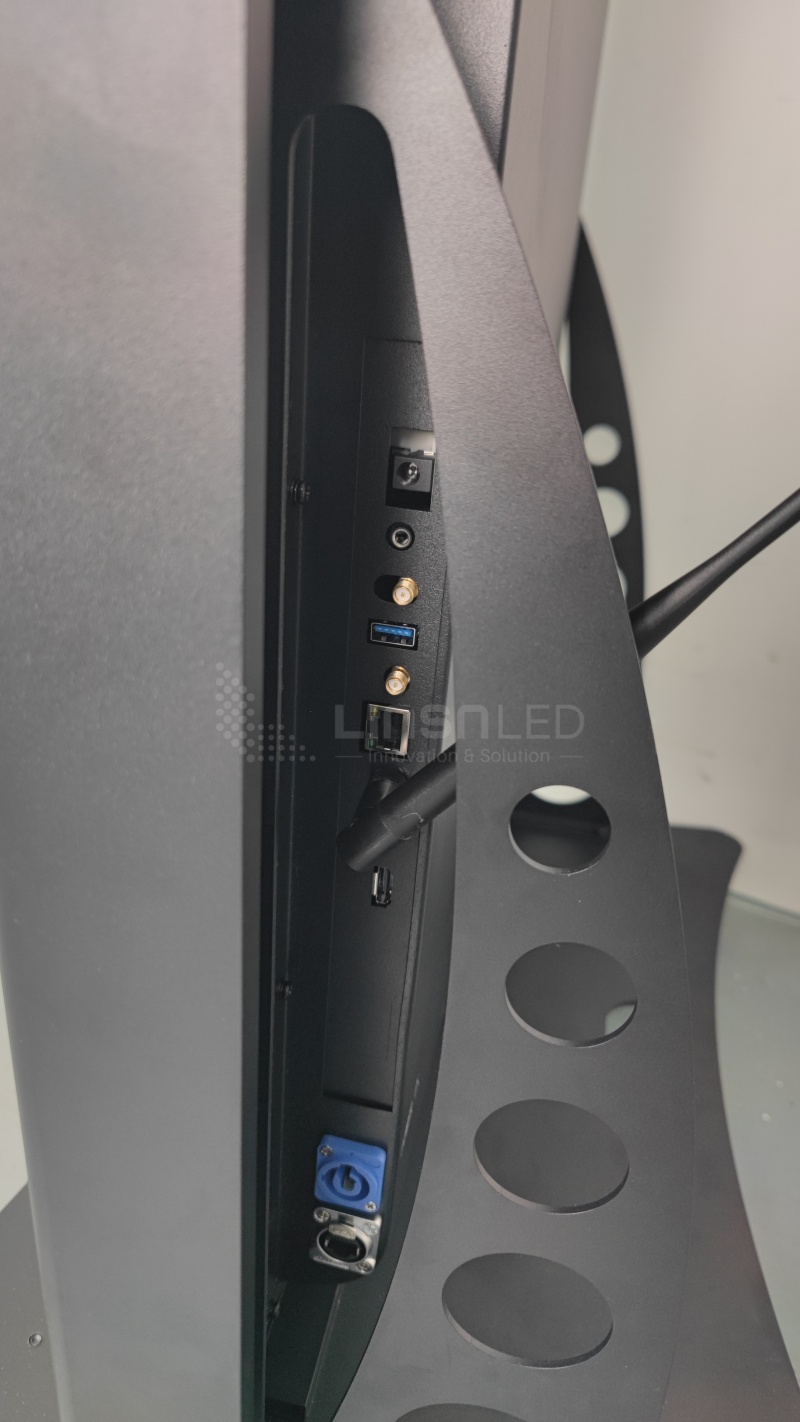

This LED display supports both synchronous and asynchronous control systems, enabling content updates via iPad, phone, or notebook. It features real-time playback, cross-platform information delivery, and supports USB or Wi-Fi connections on both iOS and Android devices. Additionally, the built-in media player can store and play videos and images in all formats.
Versatile Installation Options
The LC60C supports multiple installation methods, including bracket-standing, base-standing, wall-mounted, lifting or hanging, and multi-cascade setups. This eliminates the need for a steel structure, making installation both convenient and efficient.

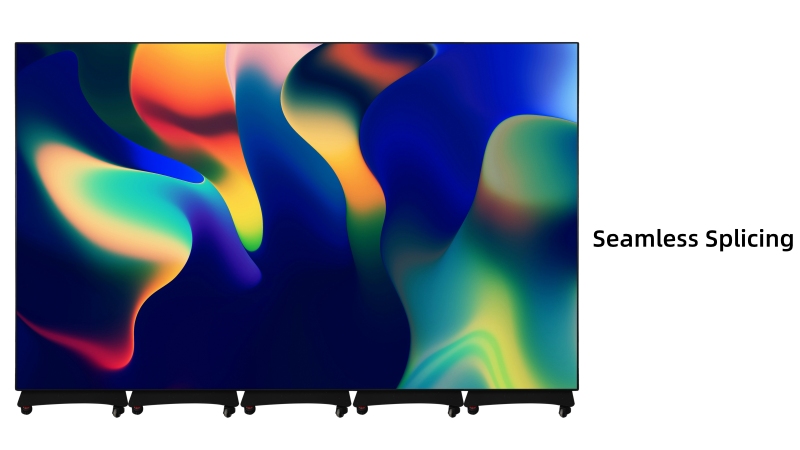

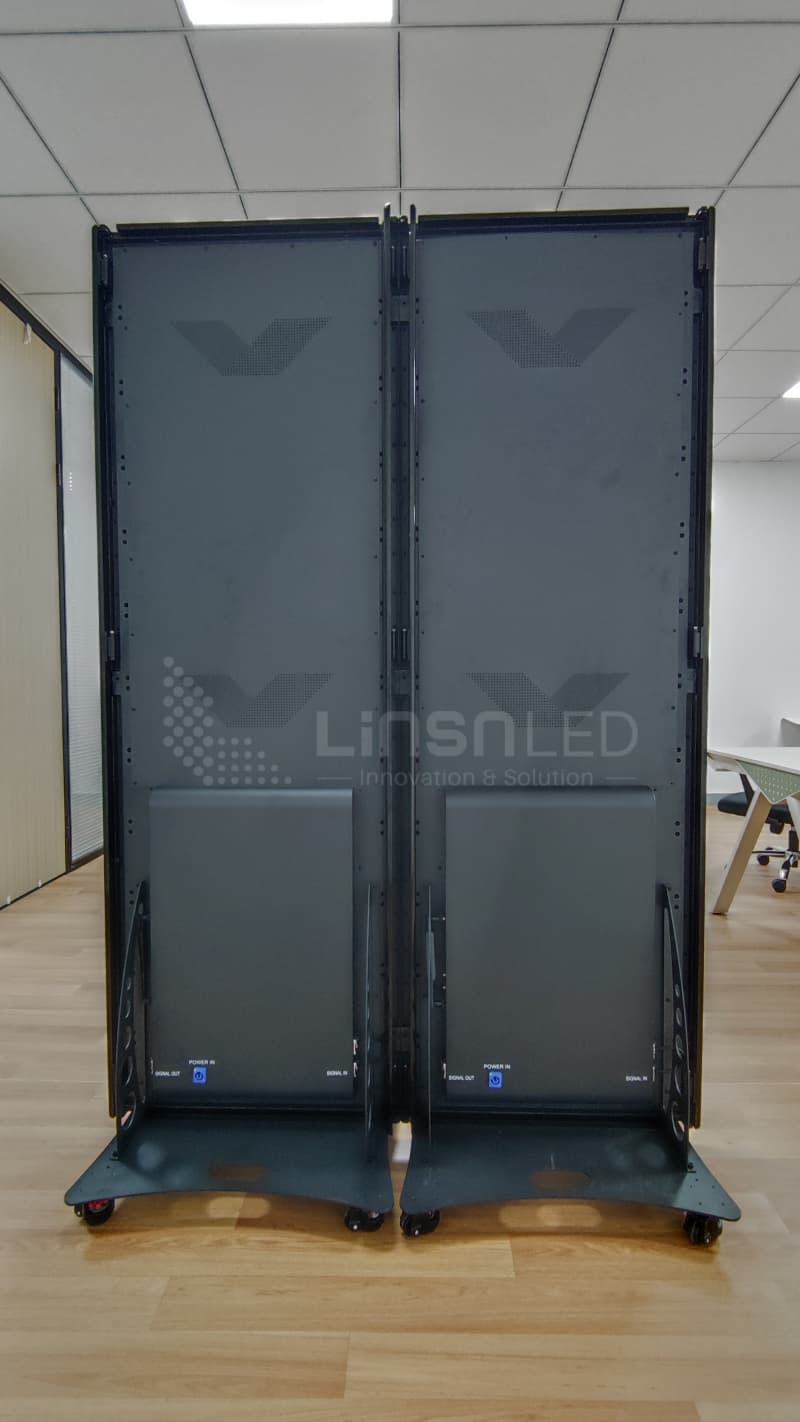

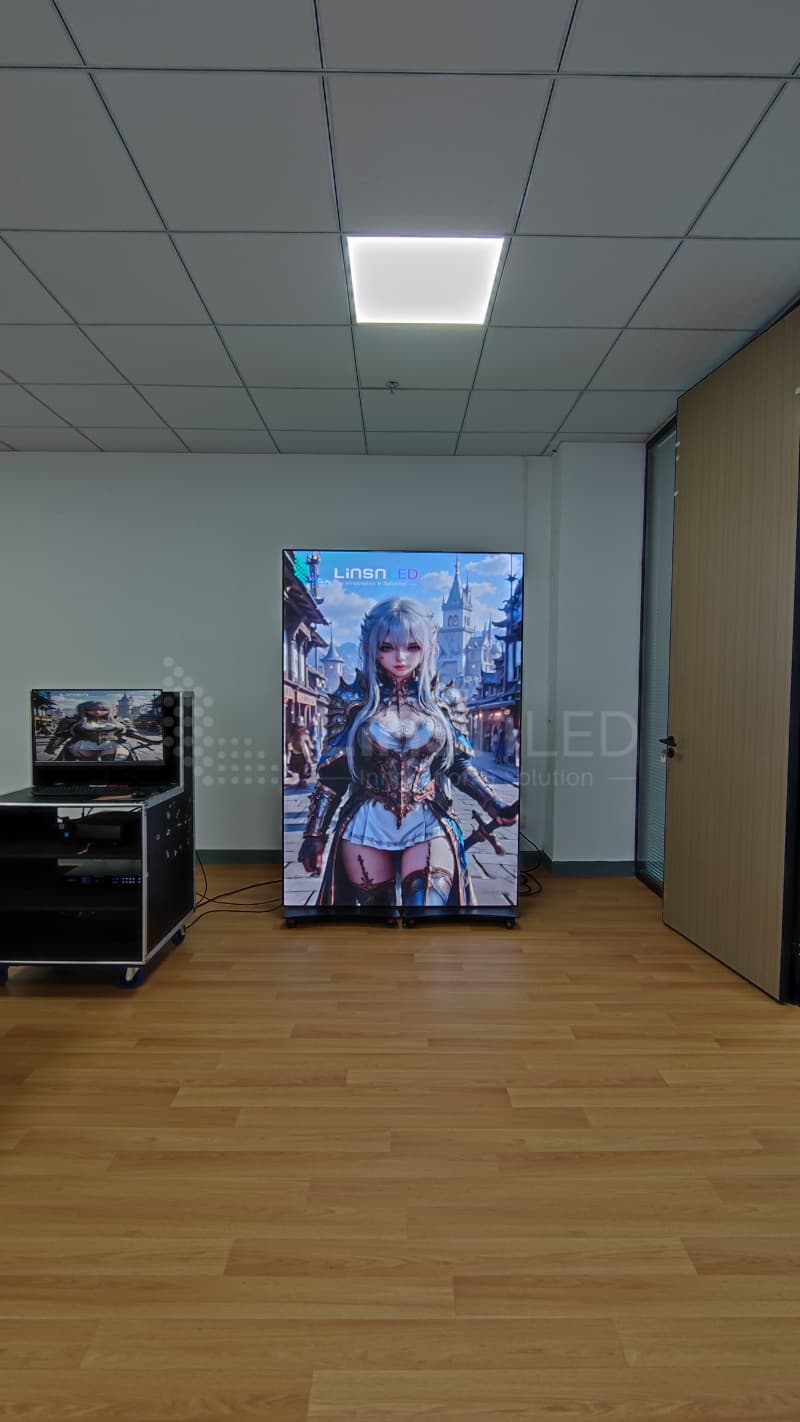

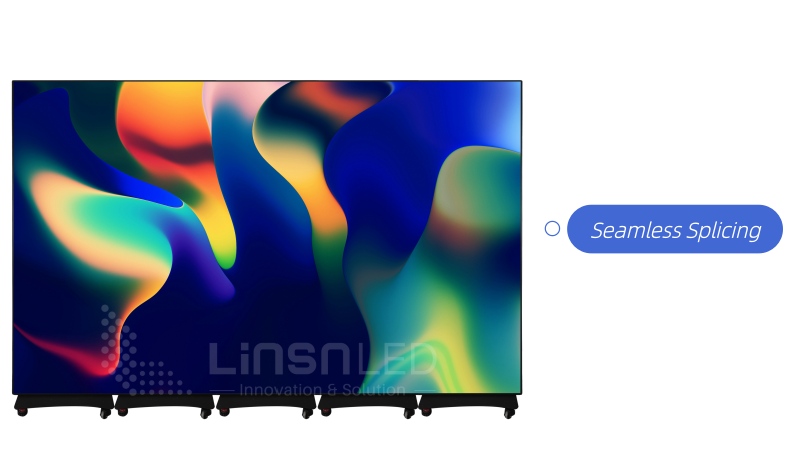

Seamless Splicing

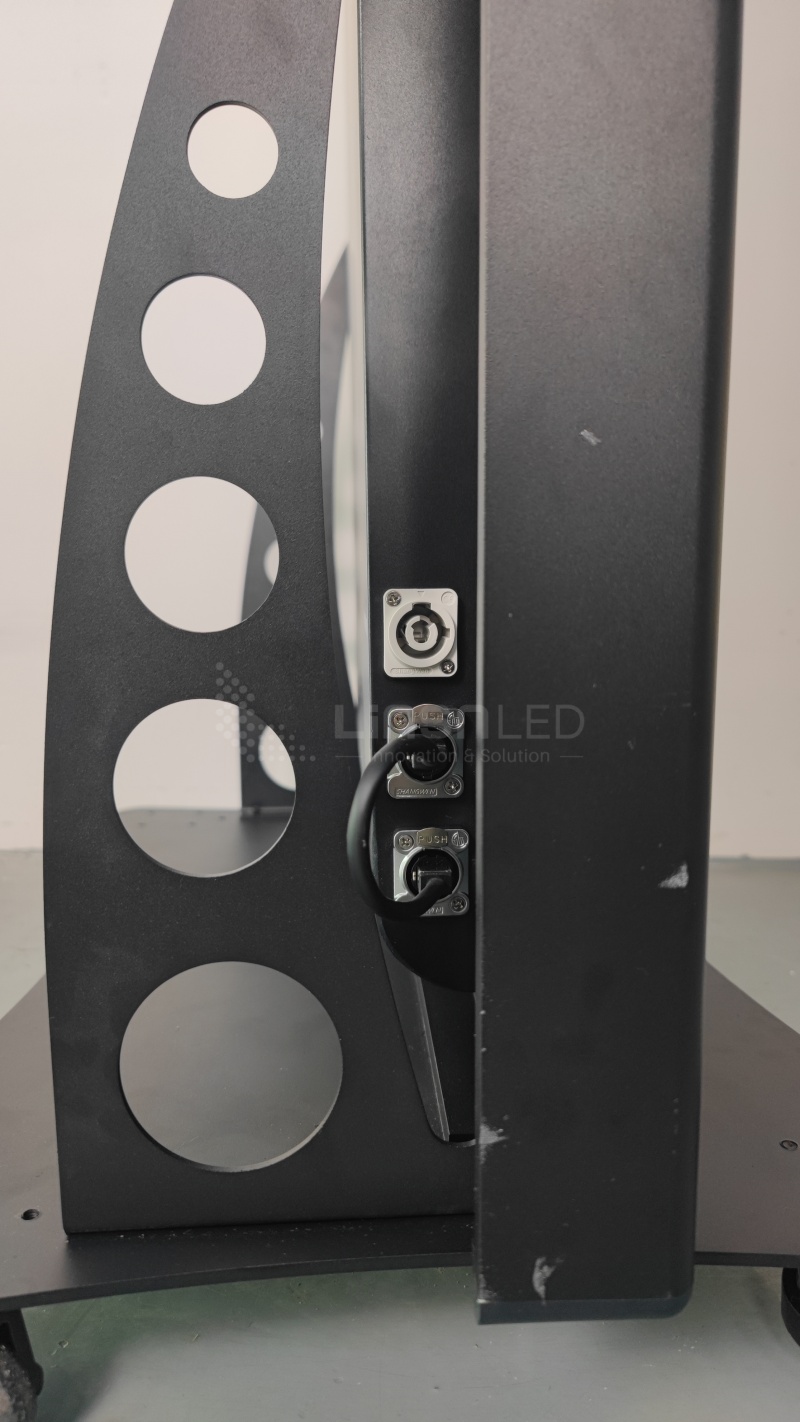

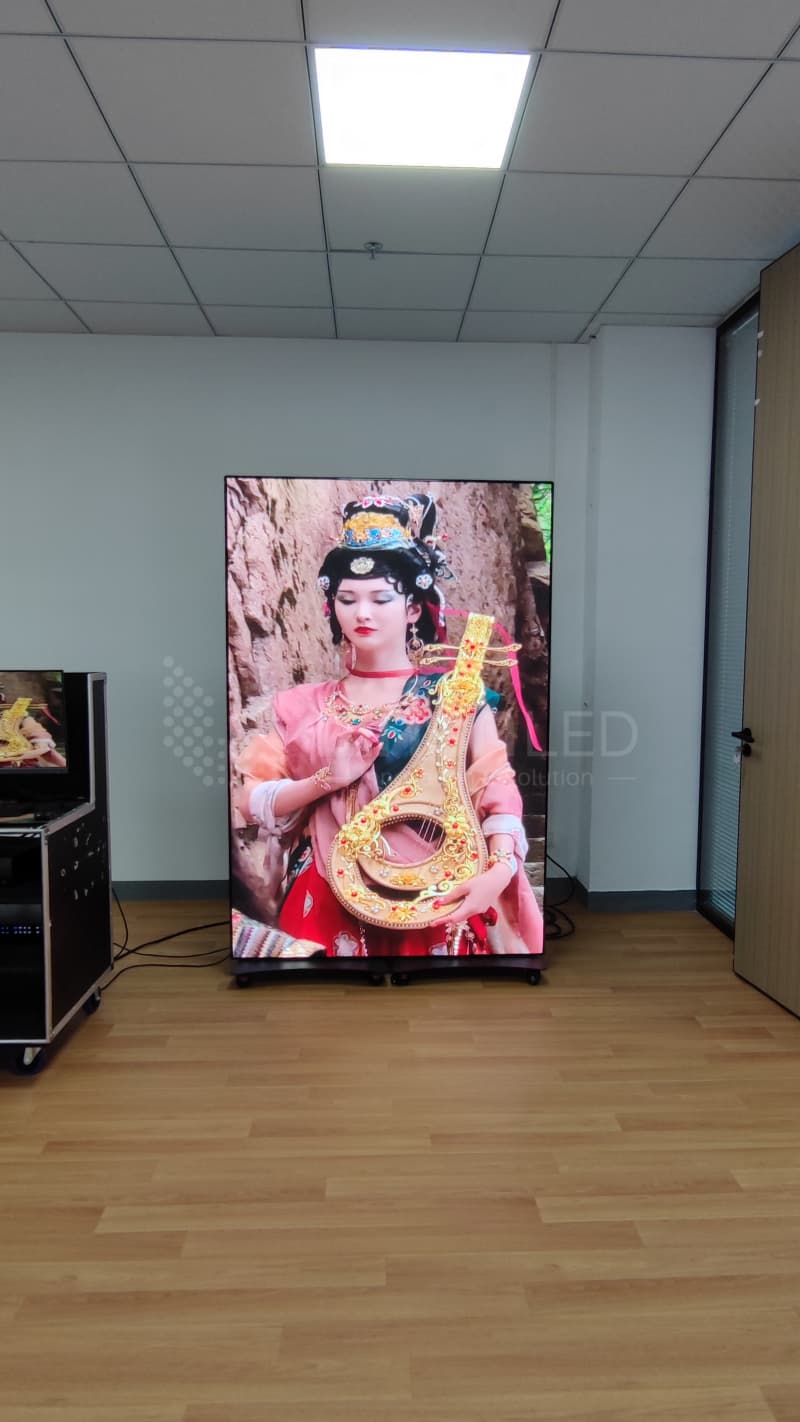

Designed with quick connectors, the LC60C LED Poster Screen can be linked with other screens to create a larger display. This seamless splicing capability enhances the visual experience, allowing for a unified big-screen presentation.
Specification
| LC60C Series | |||
| LED Module MODEL | P1.86mm | P2mm | P2.5mm |
| LED Type | SMD1515 | SMD1515 | SMD2121 |
| LED Module Size | 320×160mm | ||
| Resolution (WxH) | 172×86 | 160×80 | 128×64 |
| LED driving method | 1/43Scan | 1 /40Scan | 1/32Scan |
| LED Module layout(WXH) | 2×12PCs | ||
| Resolution(WxH) | 344×1032 | 320×960 | 256*768 |
| Display area | 1,2288㎡ | ||
| Cabinet size | 640mmx1920mmx45mm | ||
| Net. weight/set | 48KG (ncluding Standing Structure) | ||
| Ingress Protection | Front IP40/Rear IP40 | ||
| Power | AC 100-240 (110%6) | ||

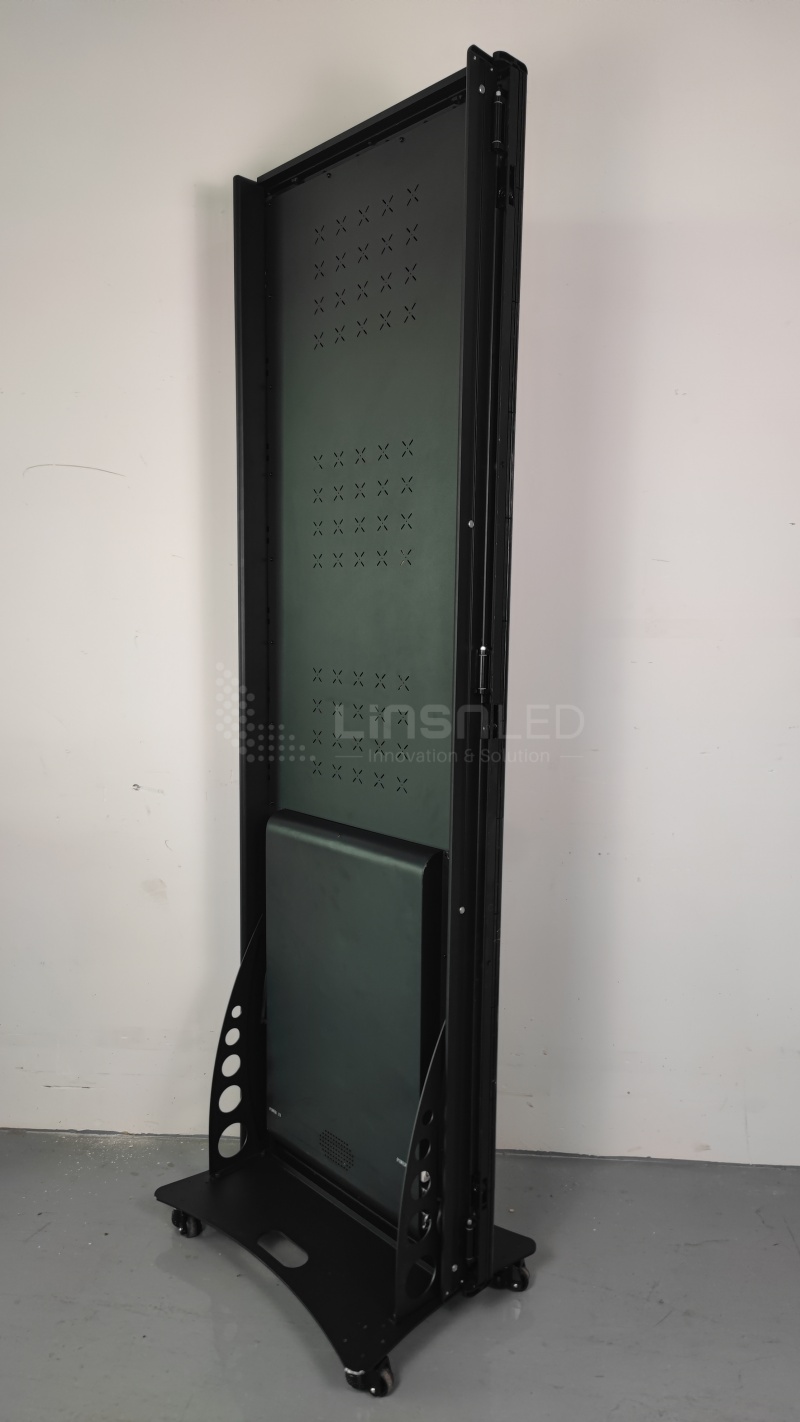

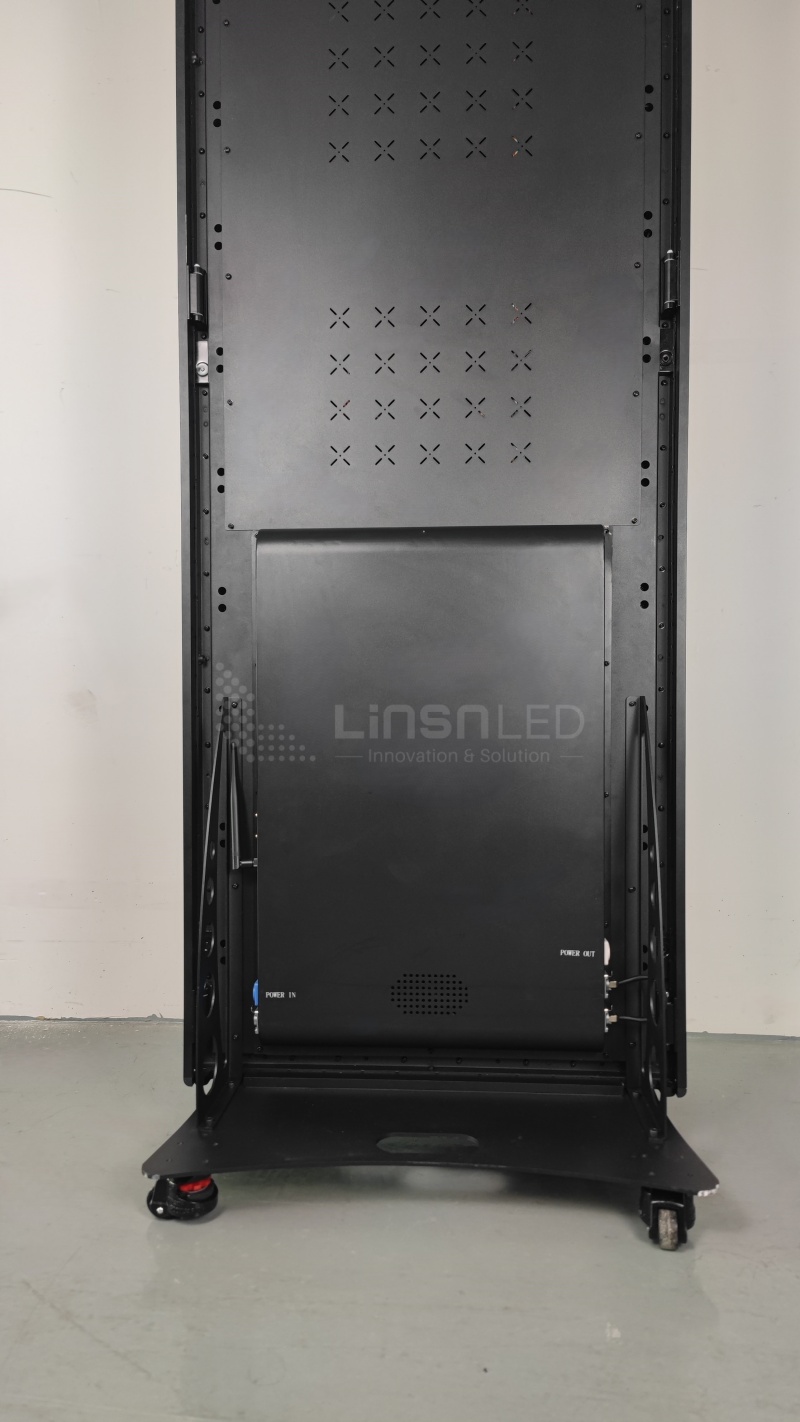

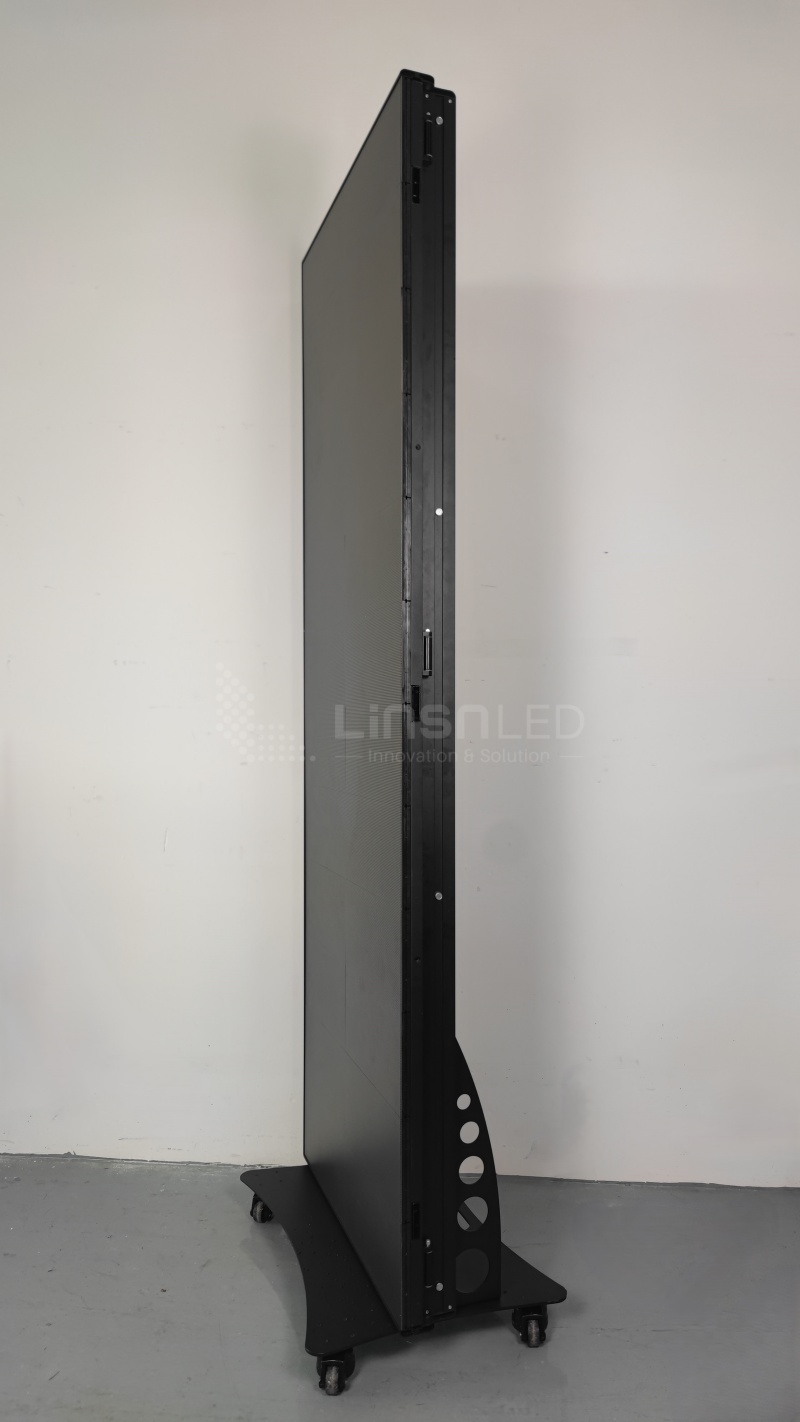

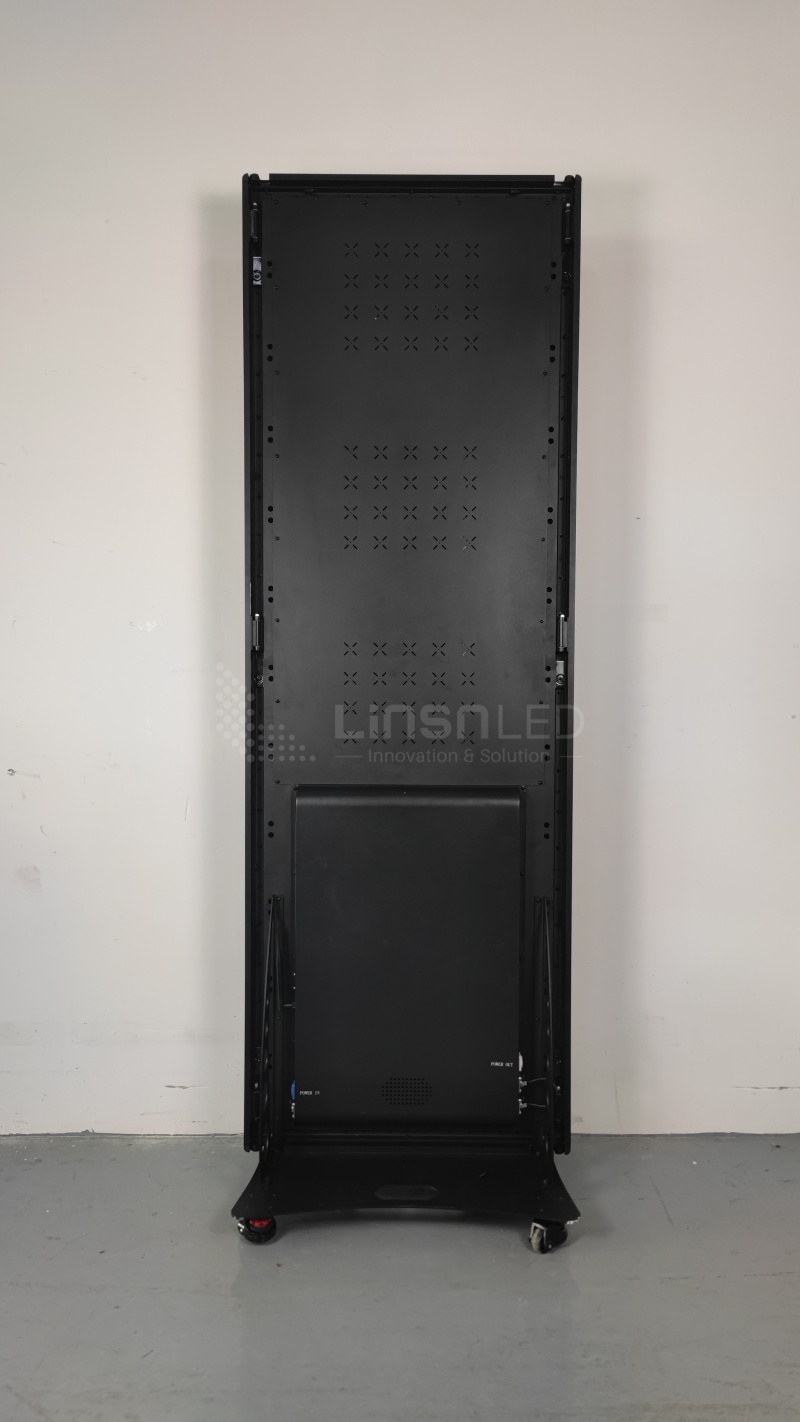

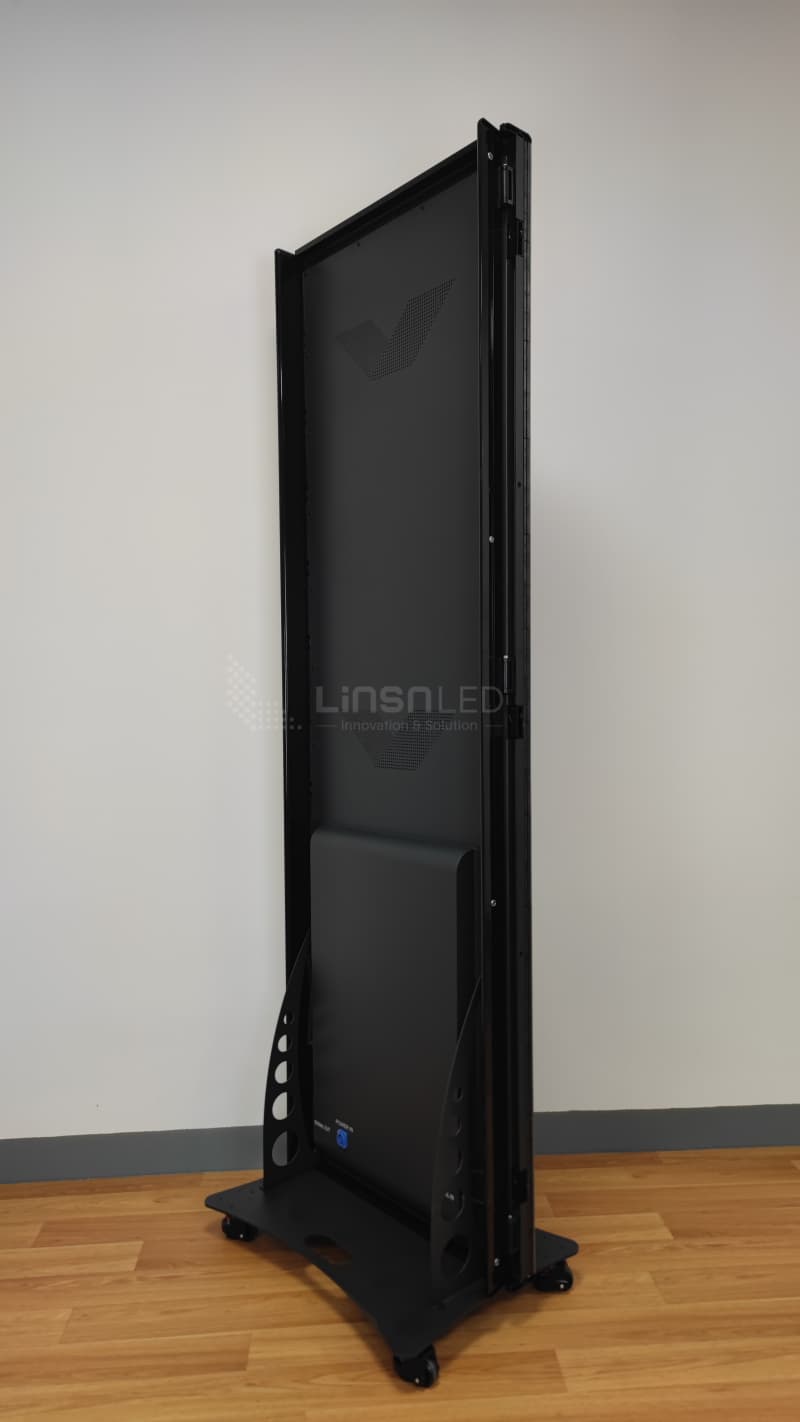

| Serviceability | Frontal or Rear service | ||
| DISPLAY Max.Power consumption | 800W | 800W | 800W |
| Avg.Power consumption | 320W | 320W | 320W |
| Viewing Angle(HV) | 160*/160* | ||
| Brightness | 600~800 nits | ||
| Contrast ratio | 5,000:1 | ||
| Temperature/ Humidity | -10°Cto +40*C: 10% to 90% | ||
| Lifetime | 80,000hours | ||
| Processing | 14bit | ||
| Refresh Rate | 3840Hz | ||
