GS Series Grille LED Screen SMD

GS Series
Grille LED Display SMD

Superior Design

Waterproof and transparent, the screen is quick to install and easy to maintain. Using SMD lamp beads, the Linstar grille screen is coated with glue for waterproofing. The LED cabinet features a spray-coated profile with UV and waterproof treatment.

Get Quotation

Optimized Structure

The LED outdoor grille screen features a modular design with standard cabinet sizes of 1000x250mm and 1000x500mm. Its slim profile is just 70mm thick.

Get Quotation

Ultra-Thin and Lightweight

The GS series outdoor transparent LED screen weighs only 2.5kg for the 1000x250mm cabinet and 7.5kg for the 1000x500mm model. This lightweight and thin design improves portability, allows for flexible installation, enhances visual appeal, and reduces energy consumption, while simplifying maintenance.

Get Quotation

Flexible Installation Options

The GS grille outdoor LED screen supports multiple installation methods, including bracket standing, adhesive mounting, and hanging. It offers versatile installation possibilities to meet various preferences and needs.

Get Quotation

Product Videos

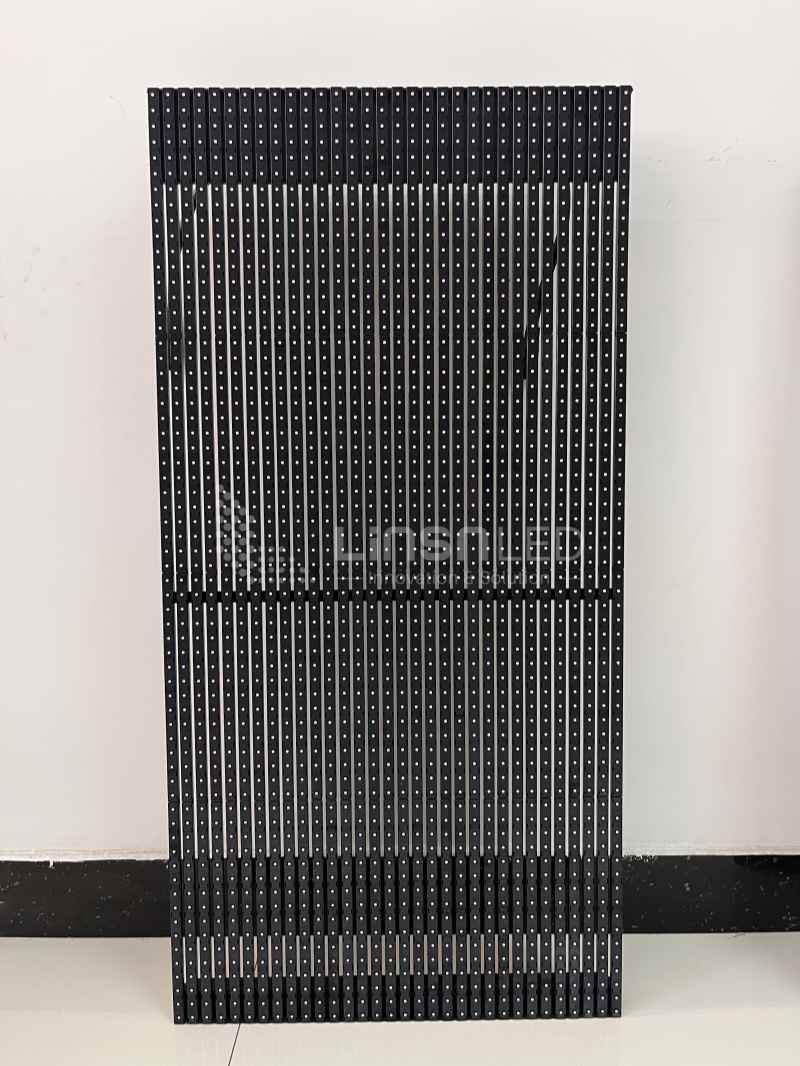

Product Images

Specification

Name	Specification
Model	P7.81-15.6	P15.6-15.6	P15.6-31.25	P31.25-31.25
Color	Full color	Full color	Full color	Full color
Pixel Pitch	W7.81mm*H15.625mm	W15.625mm*H15.625mm	W15.625mm*H31.25mm	W31.25mm*H31.25mm
Light	3535 (1R1G1B)	3535 (1R1G1B)	3535 (1R1G1B)	3535 (1R1G1B)
Pixel/㎡	8192	4096	2084	1024
Viewing Angel(M)	8M-47M	15M-75M	15M-125M	32M-125M
Transparency	≤25%	≤25%	≤55%	≤55%
Max Power Consumption/㎡	800W	800W	600W	400W
Avg Power Consumption/㎡	250W	250W	200W	150W
Cabinet Size（mm）	W1000H250 D70mm W1000H500D70mm	W1000H250 D70mm W1000H500D70mm	W1000H250 D70mm W1000H500D70mm	W1000H250 D70mm W1000H500D70mm
Cabinet Resolution	12816 12832	6416 6432	648 6416	328 3216
Brightness	6000CD-7300CD/㎡	6000CD-6500CD/㎡	40000CD-4500CD/㎡	2500 CD-3000CD/㎡
Fresh Rate	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz
Protection Level	IP65	IP65	IP65	IP65
Greyscale	12bit	12bit	12bit	12bit
Brightness Adjustment	256 Level	256 Level	256 Level	256 Level
Screen Material	Aluminum frame + light bar	Aluminum frame + light bar	Aluminum frame + light bar	Aluminum frame + light bar
Driver IC	FM/MY	FM/MY	FM/MY	FM/MY
Input Voltage	DC48-70V	DC48-70V	DC48-70V	DC48-70V
Working Environment	-10 ~ 45°C	-10 ~ 45°C	-10 ~ 45°C	-10 ~ 45°C
Installation	Front & Rear Service	Front & Rear Service	Front & Rear Service	Front & Rear Service
Warranty	3 Years Warranty	3 Years Warranty	3 Years Warranty	3 Years Warranty
Cabinet Weight	2.5kg 7.5KG	2.2kg 6.5KG	1.9kg 5.5KG	1.6kg 4.5KG
