FL Series
Outdoor LED Floor Screen
- High Safety: Waterproof Rating IP54/IP45
- High Load-Bearing Capacity: Up to 2.2T/m²
- Cabinet Thickness: 80mm
- Adjustable Height: 130-170mm
- High Heat Dissipation
- Gold Plating Process
- Professional Technology Mask
Professional Outdoor LED Floor Screen
The FL Series boasts an IP68 rating, making it completely waterproof and dustproof. Engineered for high foot traffic, it supports substantial weight without compromise. With an impressive brightness of 10,000 nits, this screen delivers vivid visuals even under direct sunlight, while its interactive features transform passive viewers into active participants.
Specially Designed Rib and Independent Power Box
This innovative design enhances load-bearing capacity, with each signal and power connector independently crafted to meet IP68 waterproof standards.
Patented Air-Valve Design
This unique feature equalizes air pressure between the module, power box, and external environment, preventing moisture ingress. This not only enhances performance but also prolongs the lifespan of the floor LED screens.
Perfect Structure
Iron Cabinet with Anti-Corrosion and Rust Treatment
High Brightness: Up to 10,000 nits
Built-in Interactive IC: Optional feature
Waterproof Design: IP68 rated for maximum protection
Surface Design: Anti-skid and anti-scratch
Premium Mask Material: UV-resistant for durability
High Brightness: Up to 10,000 nits
Built-in Interactive IC: Optional feature
Waterproof Design: IP68 rated for maximum protection
Surface Design: Anti-skid and anti-scratch
Premium Mask Material: UV-resistant for durability
Project Case

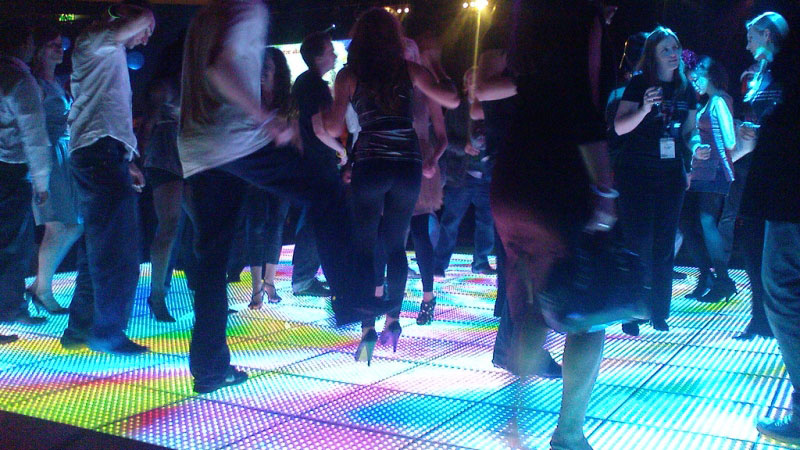

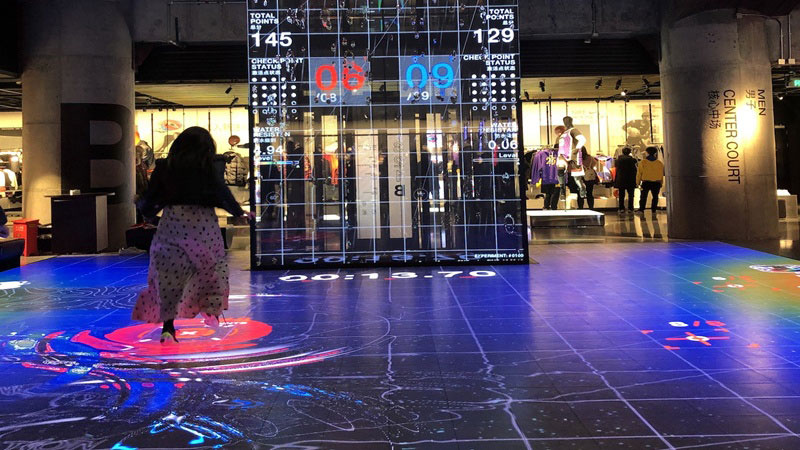

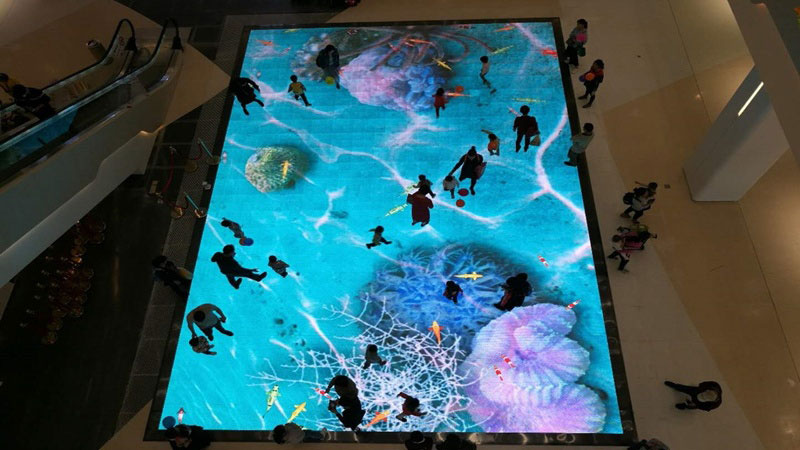

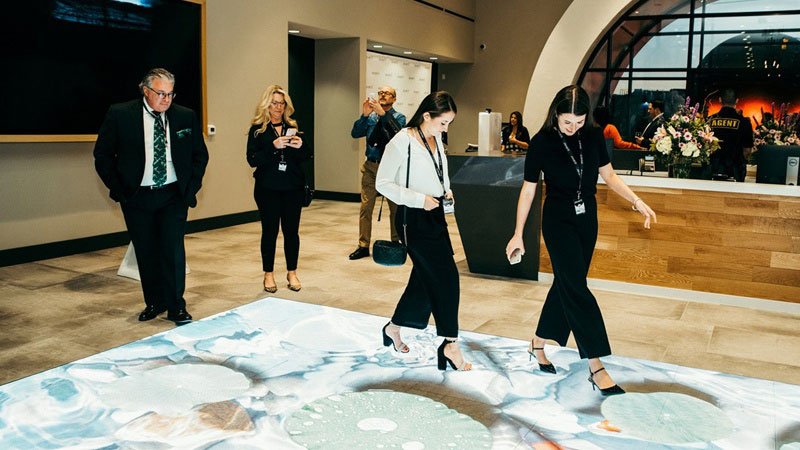

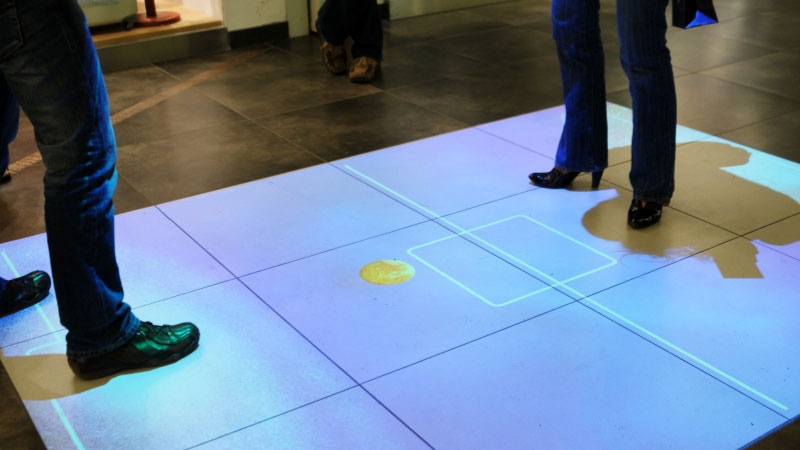

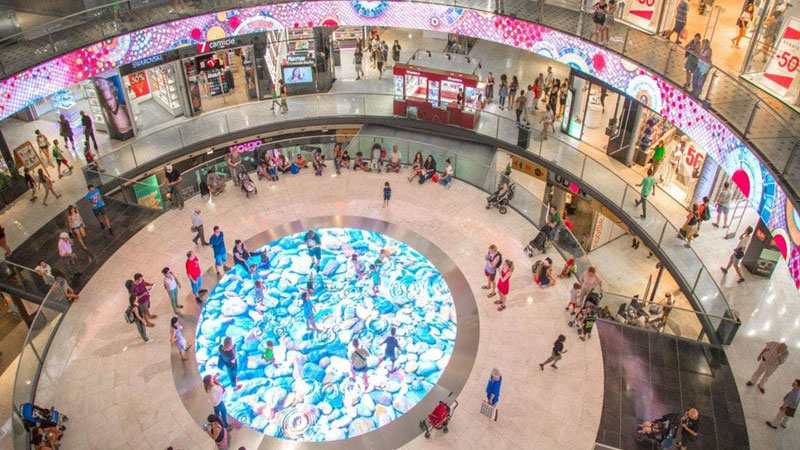

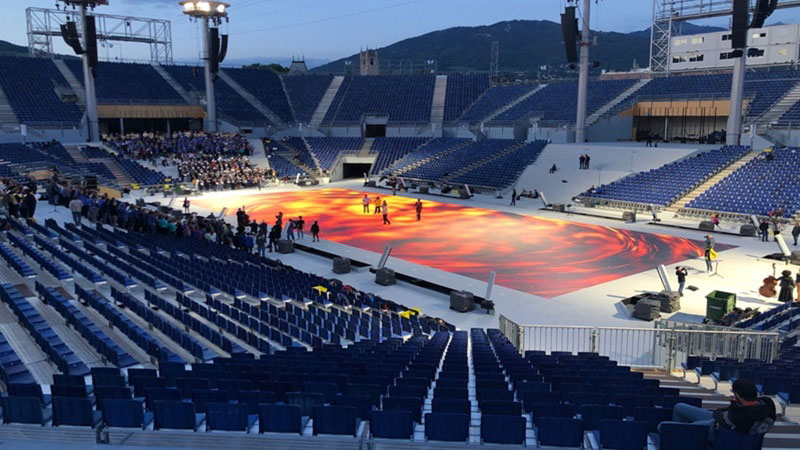

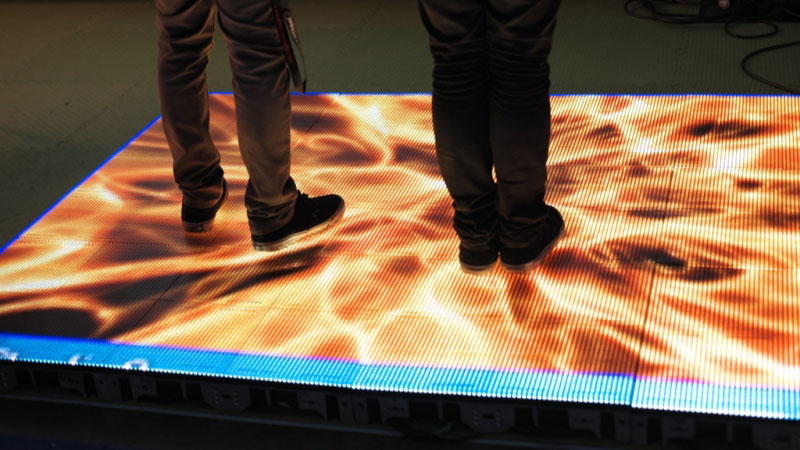

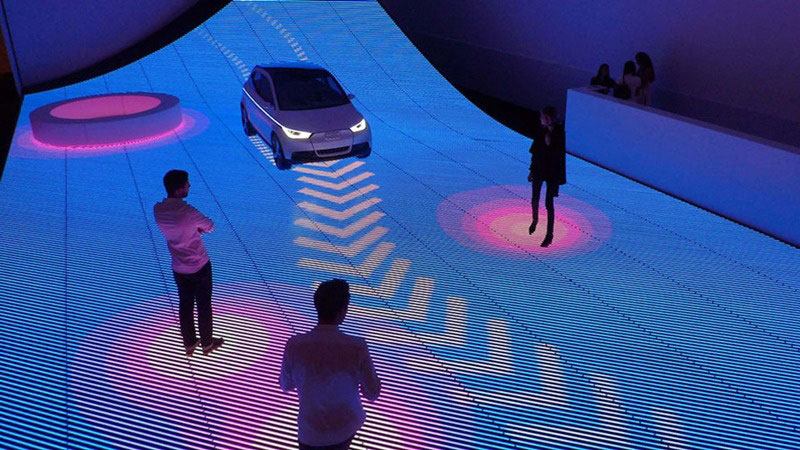

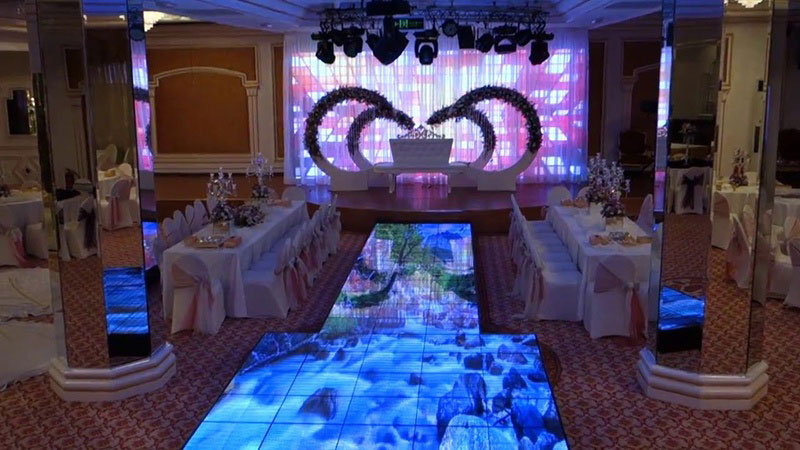

Application Scenarios include XR immersive interactive LED floor screens, shopping centers, exhibition halls and trade shows, as well as bars and KTV venues.
Product Videos
Product Images
Specification
| Model Number | FL0225 | FL0226 | FL0229 | FL0239 | FL0248 | FL0252 | FL0262 |
| Pixel Pitch (mm) | 2.5 | 2.6 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| LED Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Resolution | 100 x 100 pixels | 96 x 96 pixels | 84 x 84 pixels | 64 x 64 pixels | 52 x 52 pixels | 48 x 48 pixels | 40 x 40 pixels |
| Module Dimensions (W x H x D)(mm) | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 | 250 x 250 x 18 |
| Cabinet Resolution | 200 x 200 pixels | 192 x 192 pixels | 168 x 336 pixels | 128 x 256 pixels | 104 x 208 pixels | 96 x 192 pixels | 80 x 160 pixels |
| Cabinet Dimensions (W x H x D)(mm) | 500 x500 x 110 | 500 x500 x 110 | 500 x1000 x 110 | 500 x1000 x 110 | 500 x1000 x 110 | 500 x1000 x 110 | 500 x1000 x 110 |
| Contrast Ratio | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 | >3,000:1 |
| Brightness (cd/m2) | 900-1800 | 900-1800 | 900-1800 | 900-1800 | 900-3000 | 900-3000 | 900-3000 |
| Max./Avg. Power (W/Cabinet) | 200 / 100 | 200 / 100 | 400 / 200 | 400 / 200 | 400 / 200 | 400 / 200 | 400 / 200 |
| Viewing Angle | 160°/160° | ||||||
| Operating Voltage | 100-240V AC 50-60Hz | ||||||
| Refresh Rate | 3840Hz | ||||||
| IP Rating (Front/Rear) | IP68/IP68 | ||||||
| Cabinet Weight (Kg/Cabinet) | 12.5 | 24 | |||||
| Cabinet Material | Iron | ||||||
| Max Load-Bearing | 2200 Kg | ||||||
