EV960 Series Energy Saving LED Display
- 480x320mm Panel Design
- Top Solution for Outdoor 3D Billboard Advertising
- Dual Service with Front and Rear Maintenance
- Durable Aluminum Chassis with High Protection
- SMD 3-in-1 LED Encapsulation
- CE & RoHS Certified
- 3-Year Warranty with 3% Spare Parts
Energy-Efficient LED Display
The EV960 Series from Linsn LED is the latest common cathode aluminum display, featuring a 960x960mm size and IP66 waterproof rating.
Its unique 480x320mm panel design delivers ultra-low heat and power consumption, offering energy efficiency without compromising visual quality.
Its unique 480x320mm panel design delivers ultra-low heat and power consumption, offering energy efficiency without compromising visual quality.
480x320mm Panel Design
Featuring a unique 480x320mm panel and 960x960mm cabinet, this ultra-thin design has a slim 75mm thickness.
Aluminum frame weighs 28KG/m², and the metal frame comes in at 35KG/m².
Additional sizes available: 1440x960mm, 960x960mm, and 960x640mm.
Aluminum frame weighs 28KG/m², and the metal frame comes in at 35KG/m².
Additional sizes available: 1440x960mm, 960x960mm, and 960x640mm.
Secure Harness Design
Each LED module is fitted with a safety harness to prevent accidental falls, ensuring protection and safety for people below.
Aluminum Chassis Panel

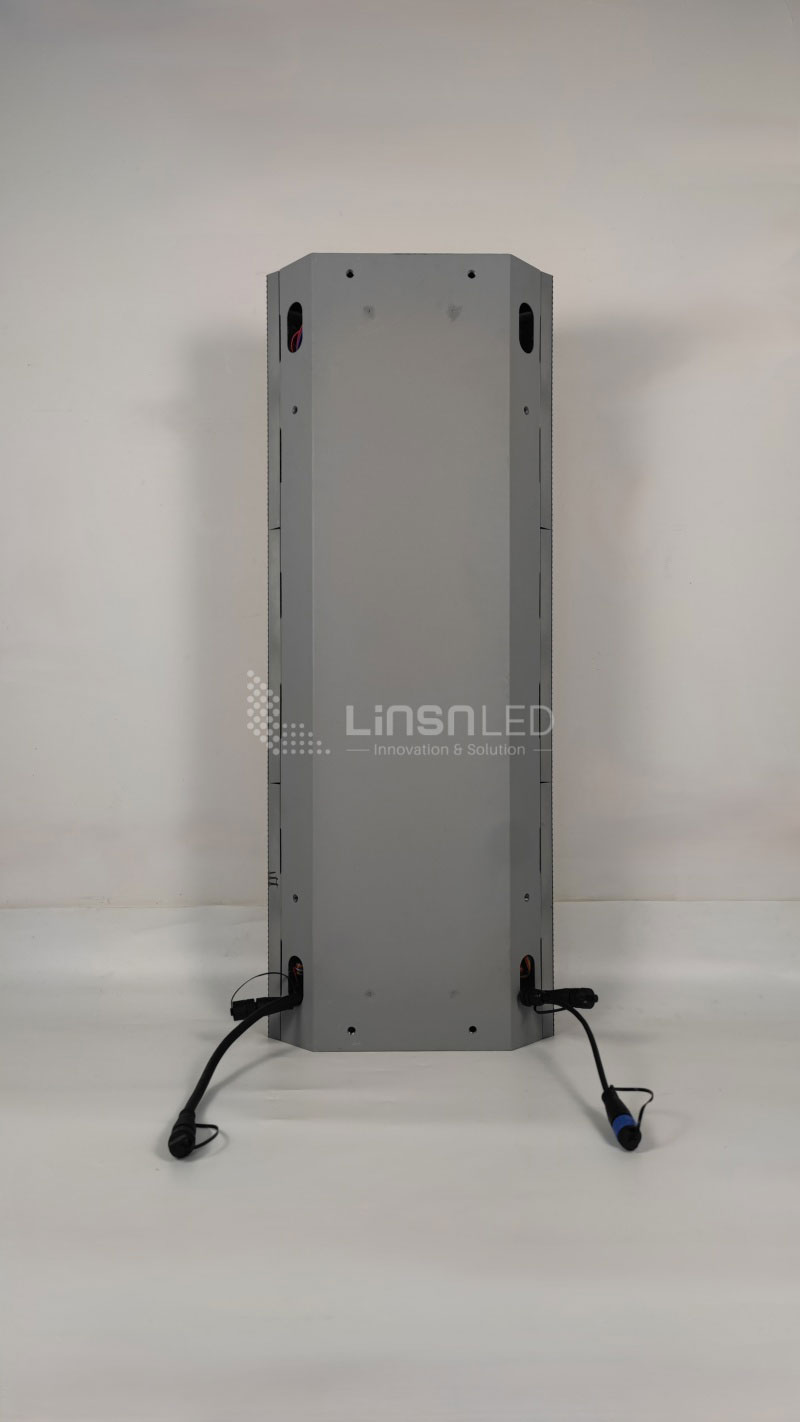

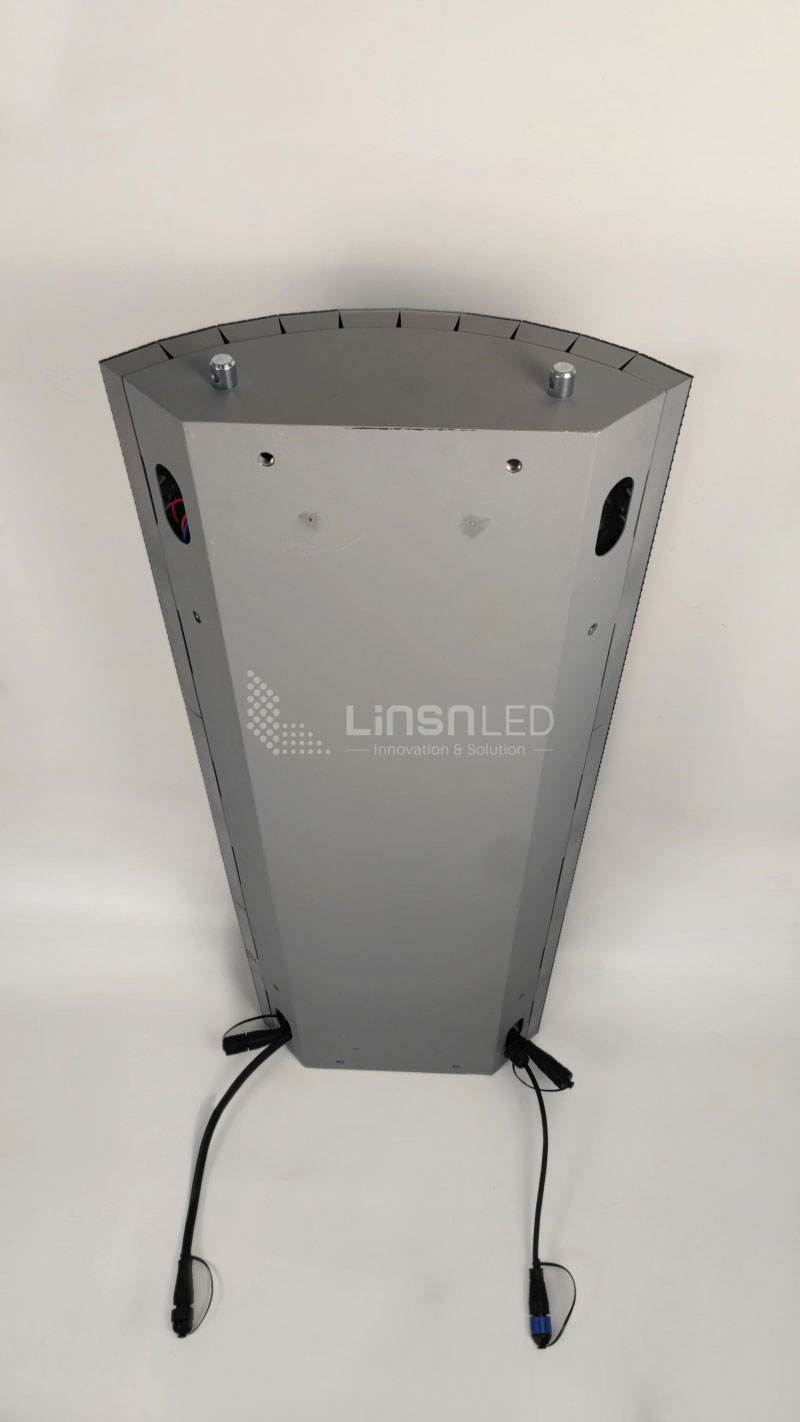

The EV960 energy-saving LED display boasts an aluminum chassis with a screw-free edge-lock design. Its fully sealed construction ensures reliable protection for internal components.
| Aluminum Chasis | Plastic Property | |
| Heat Conductivity | 237/MK | 0.02-0.04 MK |
| Melting Point | 660 W℃ | 170 W℃ |
| Strength | 390-420MPA | 30-50MPA |
| Recycle Ratio | 85% | 1% |
Perfect Design
The cable-less design conceals power and data cables at the bottom of the panel.
Secure Connection: A BTB connector replaces traditional data and power cables, providing enhanced stability.
Secure Connection: A BTB connector replaces traditional data and power cables, providing enhanced stability.

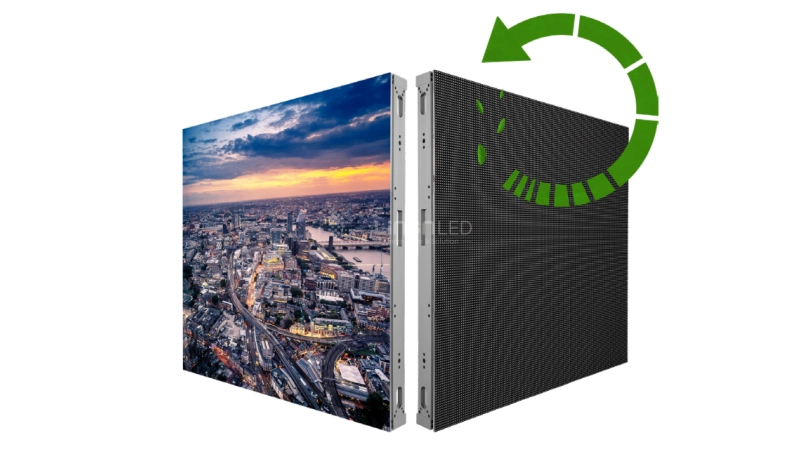

Recycling, Eco-Friendly, and Economical
The EV960 is a common cathode LED display with a die-cast aluminum chassis, boasting a 90% recycling rate. It offers a long lifespan and excellent heat dissipation, making it both environmentally friendly and cost-efficient.
Superior Protective Performance

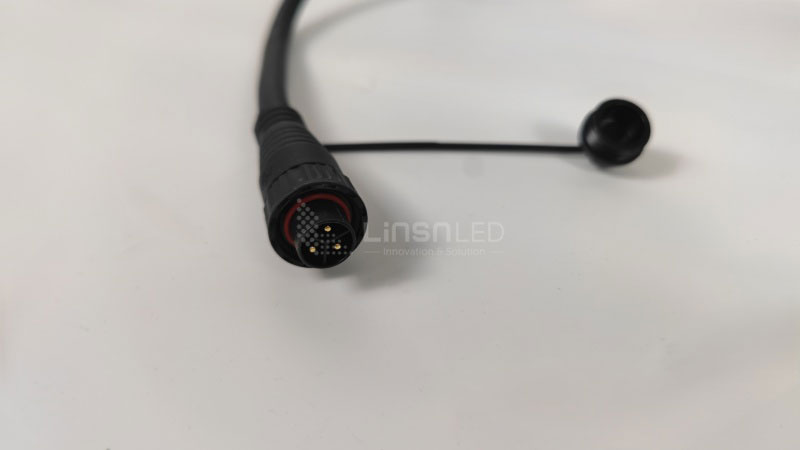

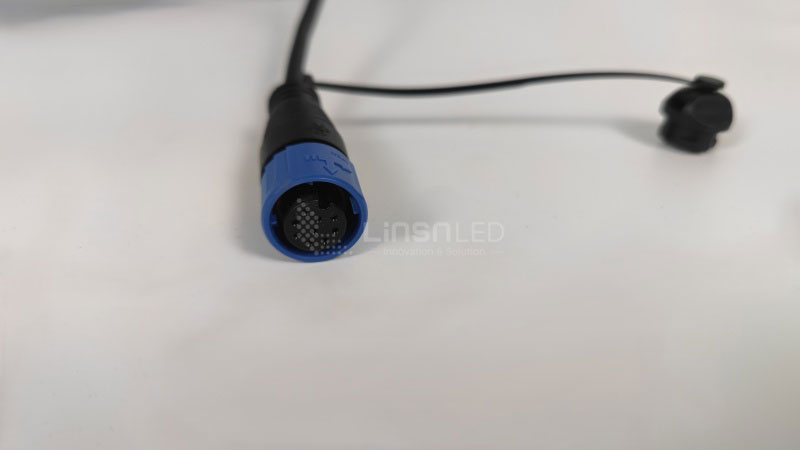

The aluminum construction provides excellent heat dissipation and high-temperature resistance, meeting 5VB fireproof standards. Its fully sealed, die-cast aluminum chassis includes waterproof connectors between modules and a drain hole to prevent water accumulation. With a superior waterproof rating, the display can withstand extended immersion under specified water pressure.

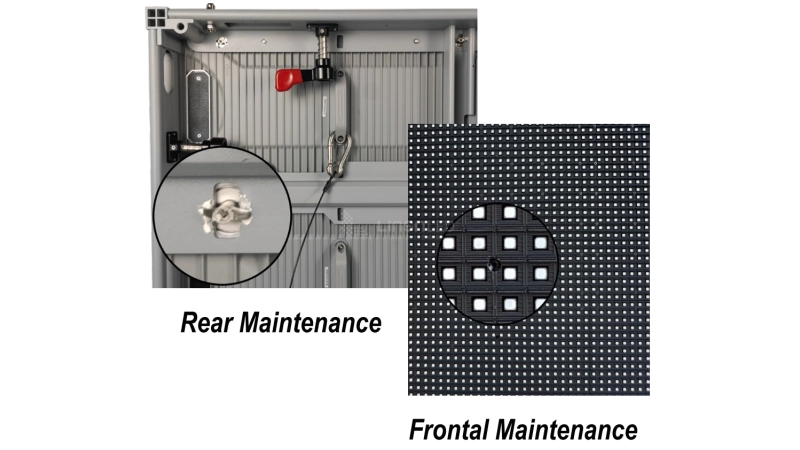

Dual-Service Design
The dual-service design allows for both front and rear access, reducing maintenance costs. The LED panel is quick and easy to assemble and disassemble.
Seamless Splicing
The die-cast aluminum module enables precise, gap-free splicing with exceptional flatness, delivering a smooth, high-quality visual experience.
Versatile Application Scenarios
Add a bracket and headrest for court use.

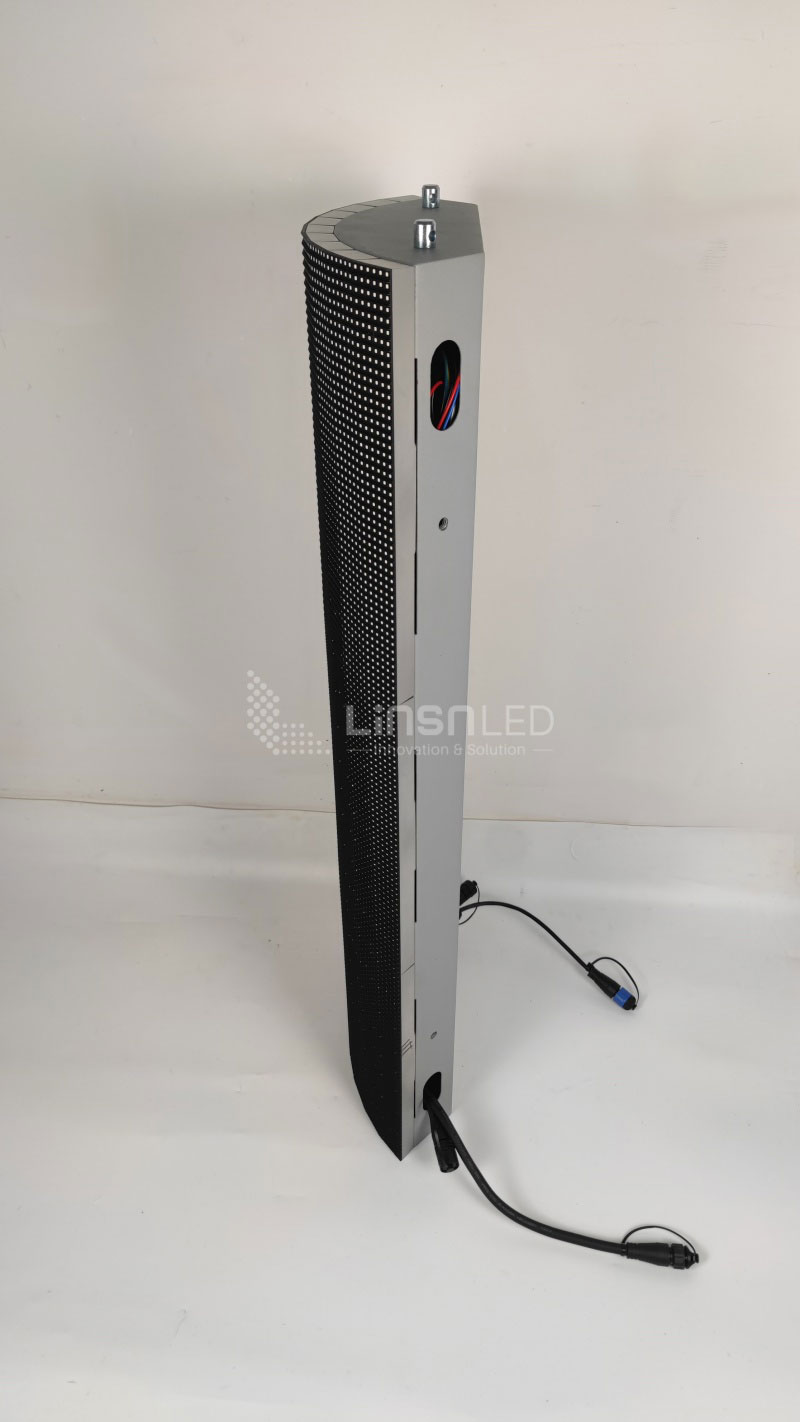

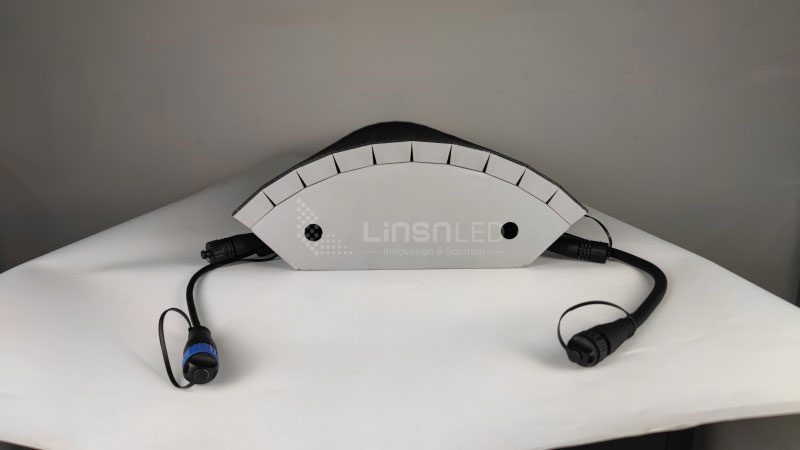

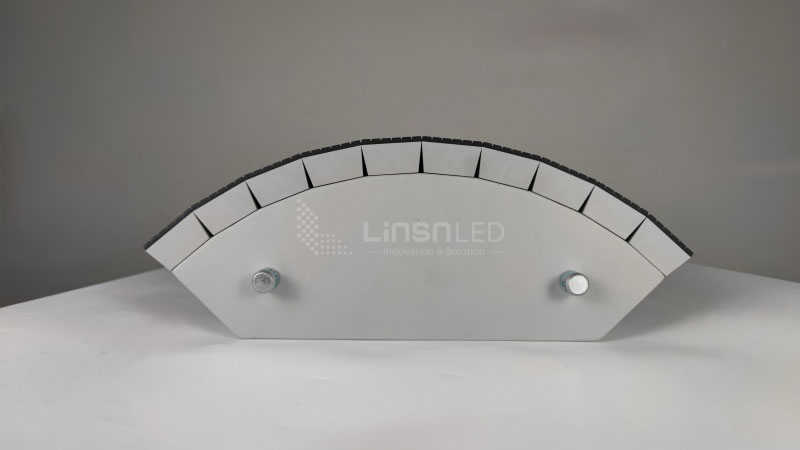

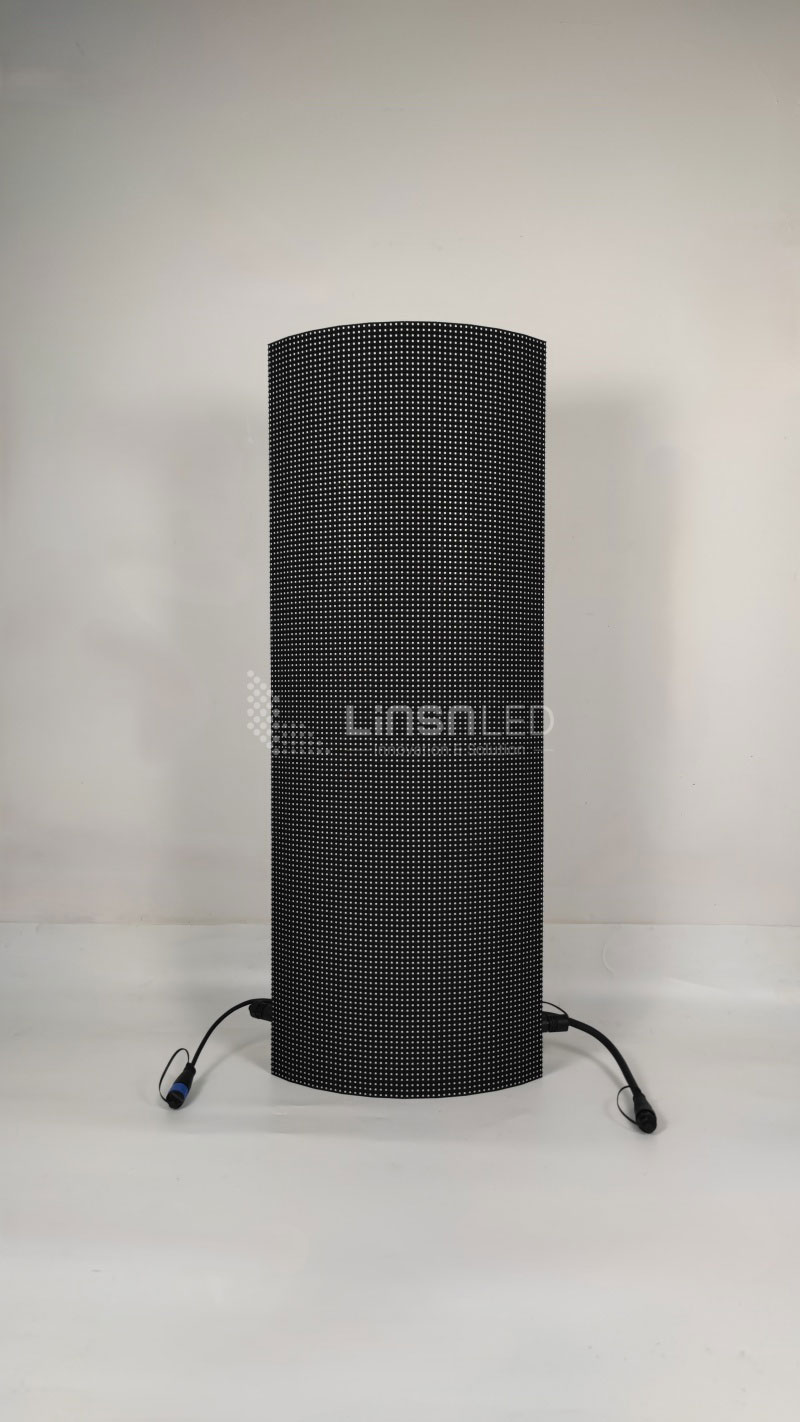

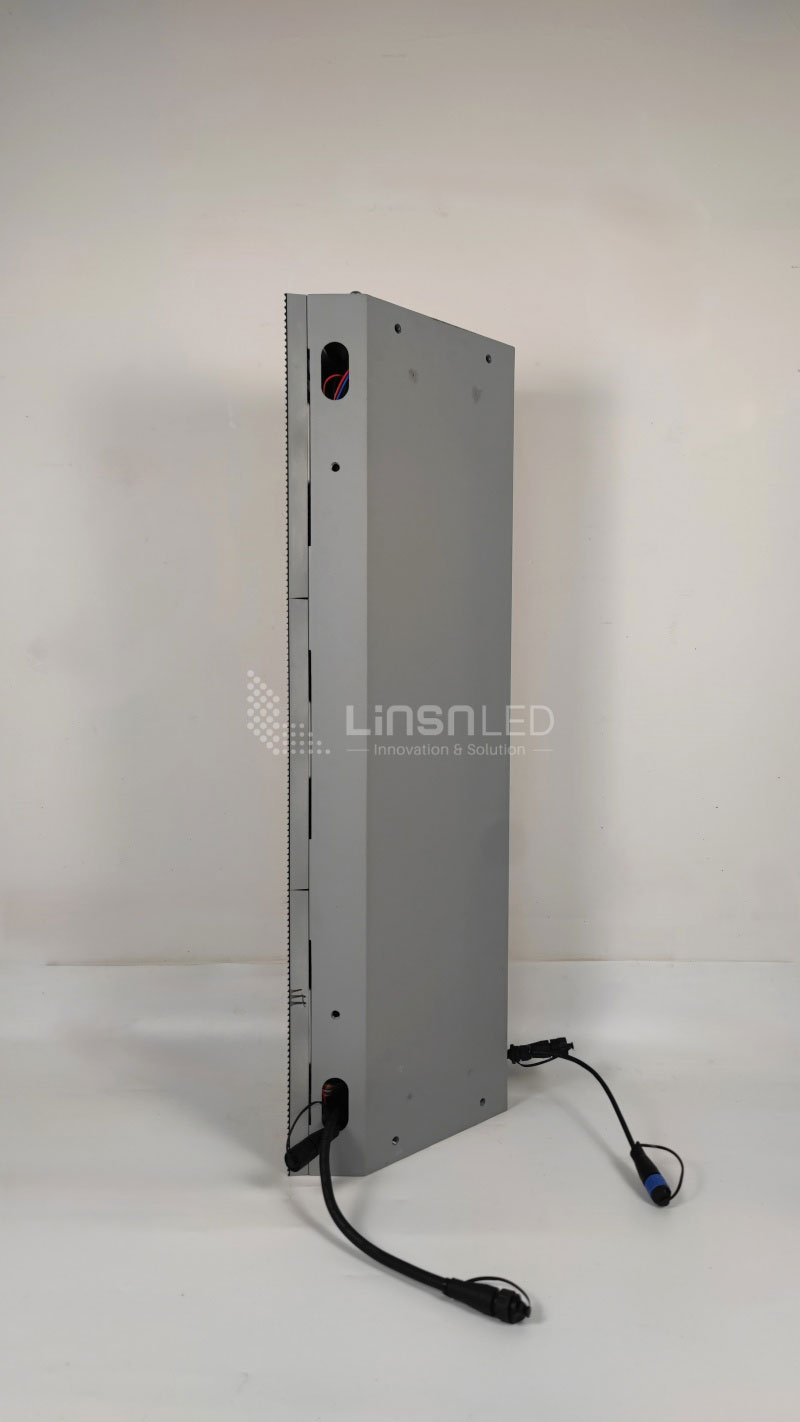

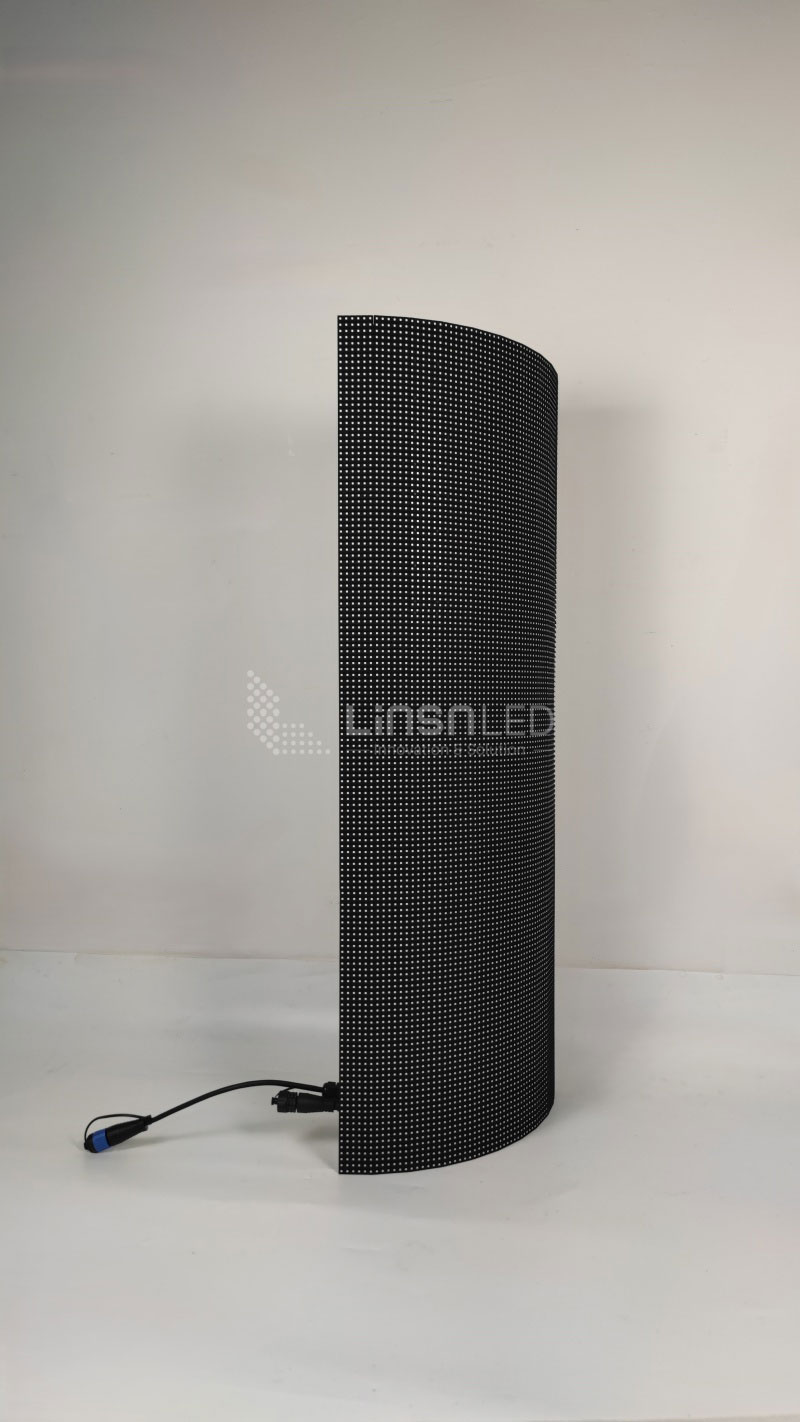

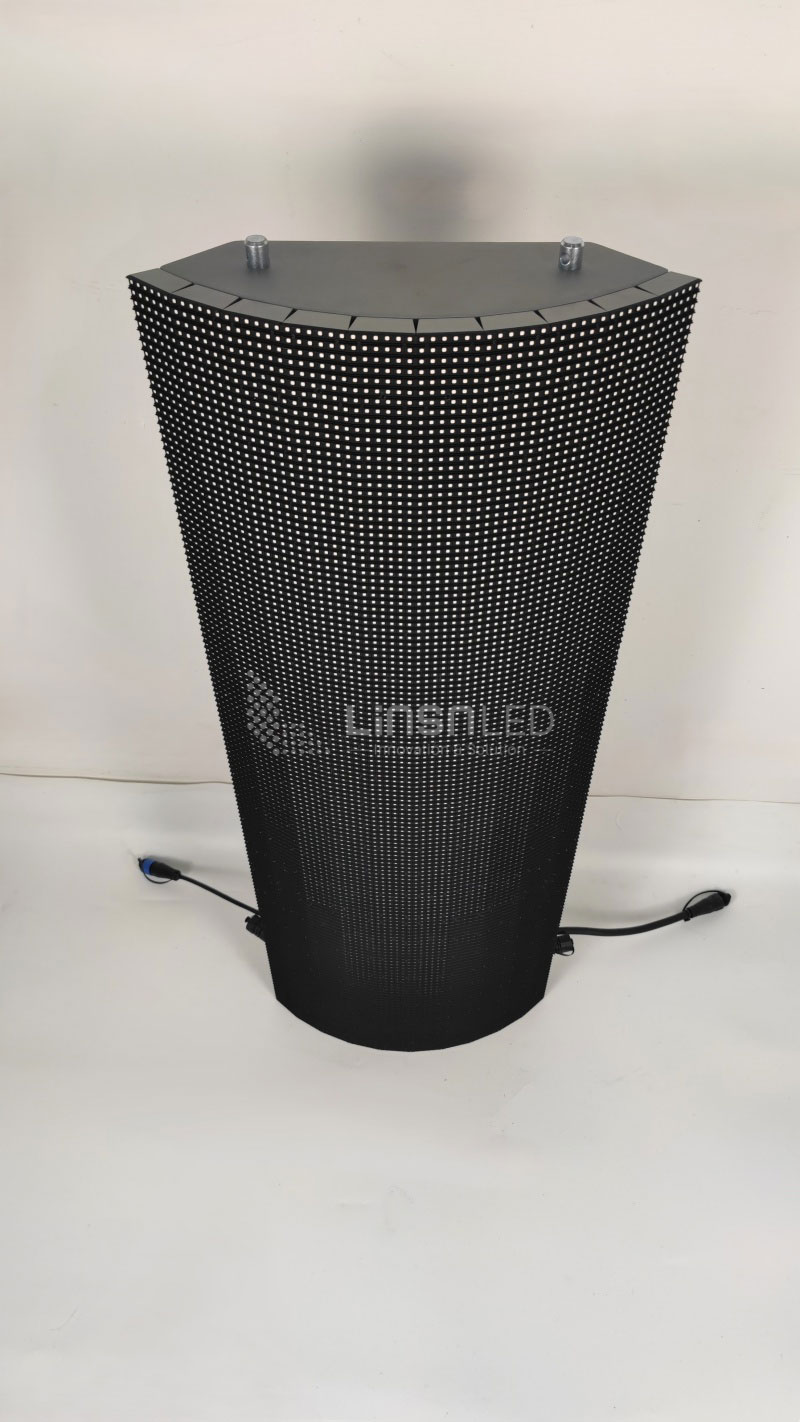

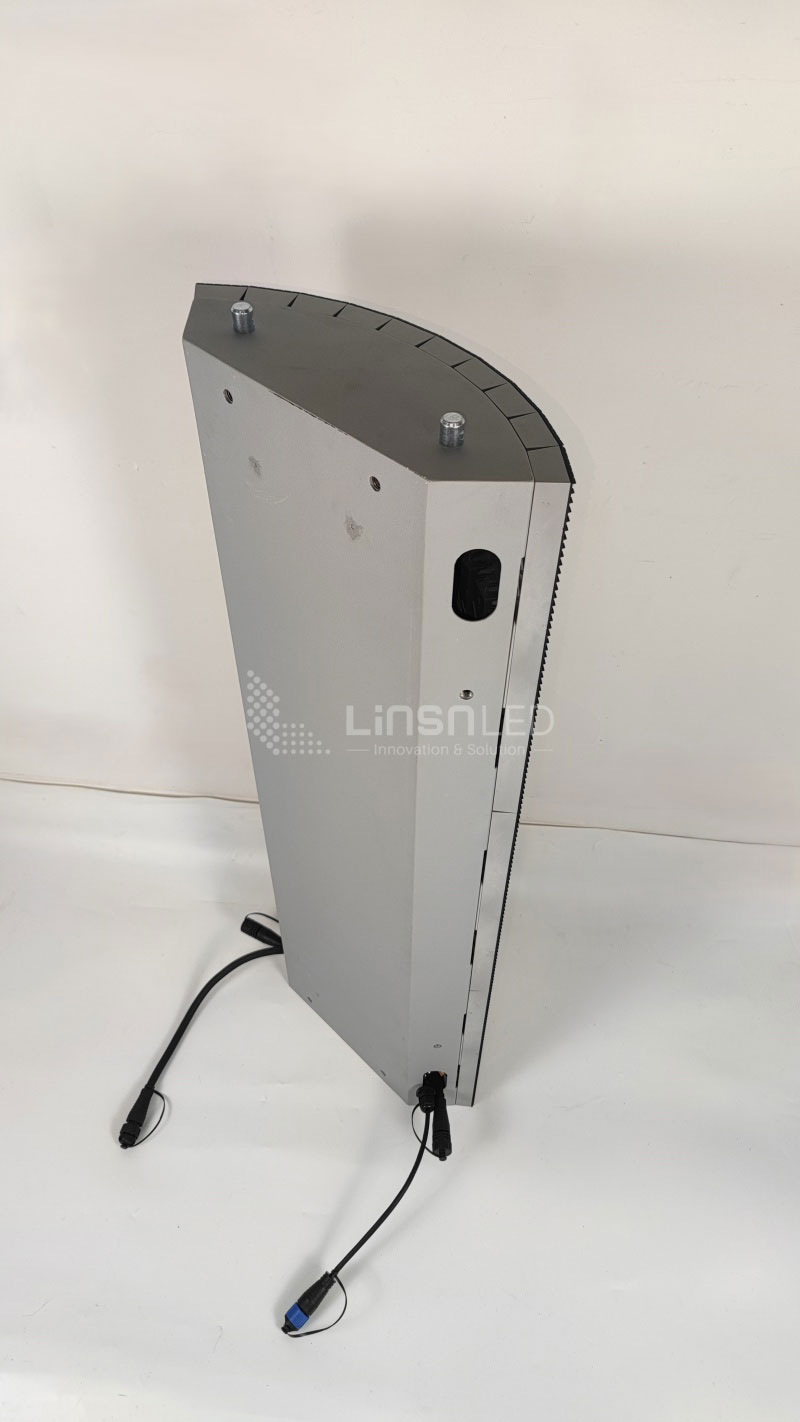

Curved corners enhance the 3D effect.

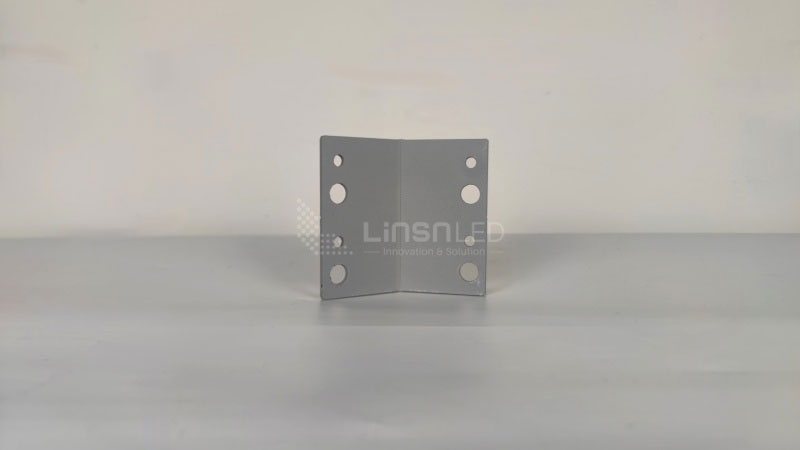

90° right-angle installation for unique setups.
Curved corners enhance the 3D effect.
90° right-angle installation for unique setups.
Product Videos
Product Images
Specification
| Model Name | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 5.7 | 6.67 | 8 | 10 |
| Pixel Density (dots) | 168×168 | 144×144 | 120×120 | 96×96 |
| LED Sealing Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | |||
| Module Resolution (PX * PX) | 84×56 | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 5500 | 6000 | 6500 | 6500 |
| Grey Scale（bit） | ≥14 | |||
| Refresh Rate (Hz) | 3840 | |||
| Maximum Cabinet Power Consumption (W) | 550 | |||
| Average Cabinet Power Consumption (W) | 150 | |||
| Cabinet Size (mm * mm) | 960*960 | |||
| Cabinet Weight (Kg) | 28KG | |||
| Cabinet Thickness (mm) | 91 | |||
| Horizontal Viewing Angle (Deg) | 160 | |||
| Vertical Viewing Angle (Deg) | 140 | |||
| Input Voltage (V) | 110-220V/200-240V | |||
| Working Temperature (℃) | -20~ +40 | |||
| Working Humidity（RH） | 10%~90% | |||
| Storage Temperature Range | -40~ +80 | |||
| Operation Humidity (RH) | 10%~90% | |||
| Waterproof Level | IP66 | |||
| Working Life | 50000h | |||
| Working Environment | Outdoor | |||
| Installation Method | Fixed Installation | |||
