EV1000 Series
Energy Saving LED Display

EV1000 Series
  • 250/500 x 250 mm Panel Design
  • Robust Aluminum Chassis with High Protection
  • SMD 3-in-1 LED Encapsulation Technology
  • Dual-Service with Front and Rear Maintenance
  • CE and RoHS Certified
  • 3-Year Warranty and 3% Spare Parts Included
Contact us
EV1000 Series

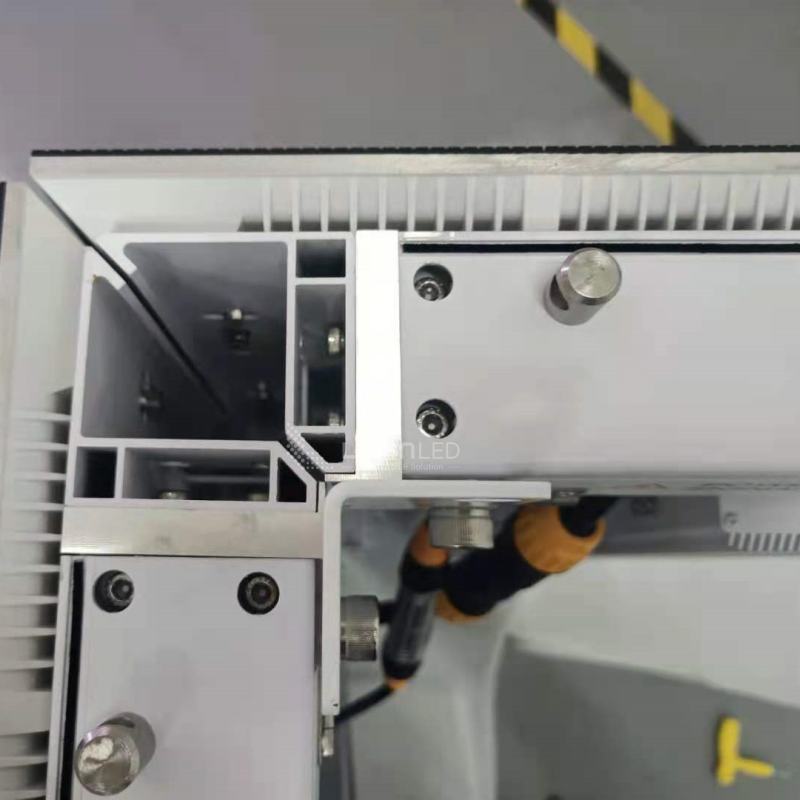

EV1000 3D LED Display

3D LED Display

The EV1000 Series LED display is Linsn's latest premium model, specifically engineered for 3D LED billboards.
Get Quotation
EV1000 Various Pitches

Diverse Pitch Options

With a consistent panel design, inventory management and screen upgrades are made simple, offering a range of pitch options including P4.8 mm, P3.9 mm, and P2.9 mm.
Get Quotation
EV1000 Size

500 x 1000 mm Dimensions

The EV1000 Series Energy Saving LED Display is Linsn's newest Common Cathode Aluminum model, featuring dimensions of 500 x 1000 mm and a robust IP66 waterproof rating. Its innovative panel design, measuring 250/500 x 250 mm, offers an exceptional visual experience while maintaining ultra-low heat and power consumption for enhanced energy efficiency.
Get Quotation
EV1000 Excellent Design

Outstanding Design

The cable-less design keeps power and signal cables hidden at the top of the panel. Utilizing BTB connectors instead of traditional data and power cables ensures high stability.
Get Quotation
EV1000 High Brightness

High Brightness

Designed for high brightness, this display achieves optimal viewing distances. Its low-pressure operation further reduces power consumption and extends the display's lifespan.
Get Quotation
EV1000 Fast Cooling Technology

Efficient Cooling Technology

The module and power supply are equipped with a heatsink that maximizes heat dissipation for superior cooling performance. The construction is composed of up to 90% metal, avoiding plastic materials.
Get Quotation
EV1000 Fast Cooling Technology
EV1000 Front and Rear Service

Front and Rear Service

The design incorporates dual-service capabilities, allowing for convenient maintenance and quick replacement from both the front and rear, enhancing service efficiency.
Get Quotation
EV1000 LED Module

Durable LED Module

This display boasts a fully waterproof and completely sealed design, along with a die-cast aluminum module chassis, achieving an IP66 protection rating for both front and rear.
Get Quotation

Product Videos

Product Images

Get Quote Now!

Specification

ltem Number P2.9 P3.9 P3.9 P4.8 P4.8
Pixel Pitch 2.97 3.91 3.91 4.81 4.81
Pixel Density 112896 65536 65536 43264 43264
LED Arrangement SMD1515 SMD1921 SMD1921 SMD1921 SMD1921
Refresh Rate 3840 3840 3840 3840 3840
Cabinet Size/mm 500*1000 500*1000 500*1000 500* 1000 500*1000
Module Size/mm 250* 250 500* 250 500* 250 500* 250 500* 250
Module Resolution 84*84 128*64 128*64 108*52 108*52
Brightness(nits) 4500 6500 5000 6500 5500
Max Consumption 700 760 650 760 650
Ave Consumption 280 300 1 95 300 195
View Angle/Horizontal 160 160 160 160 160
View Angle/Vertical 90 90 90 90 90
Grey Scale(Bit) ≥14 ≥14 ≥14 ≥14 ≥14
Protecting Rating IP66 IP66 IP66 IP66 IP66
Certificate: EMC,CE, ETL, FCC, CB
