ES1000 Series
High Quality LED Display

ES1000 Series
  • 250x250mm Panel
  • Front and Rear Maintenance Access
  • Advanced SMD 3-in-1 LED Technology
  • Sturdy Aluminum Chassis for Enhanced Protection
  • CE and RoHS Certified
  • 3-Year Warranty with 3% Spare Parts Provided
Contact us
ES1000 Series
ES1000 Series Perfect Design

Perfect Design

The ES1000 Series Energy Saving LED Display features a 500*1000mm size with a high IP66 waterproof rating.

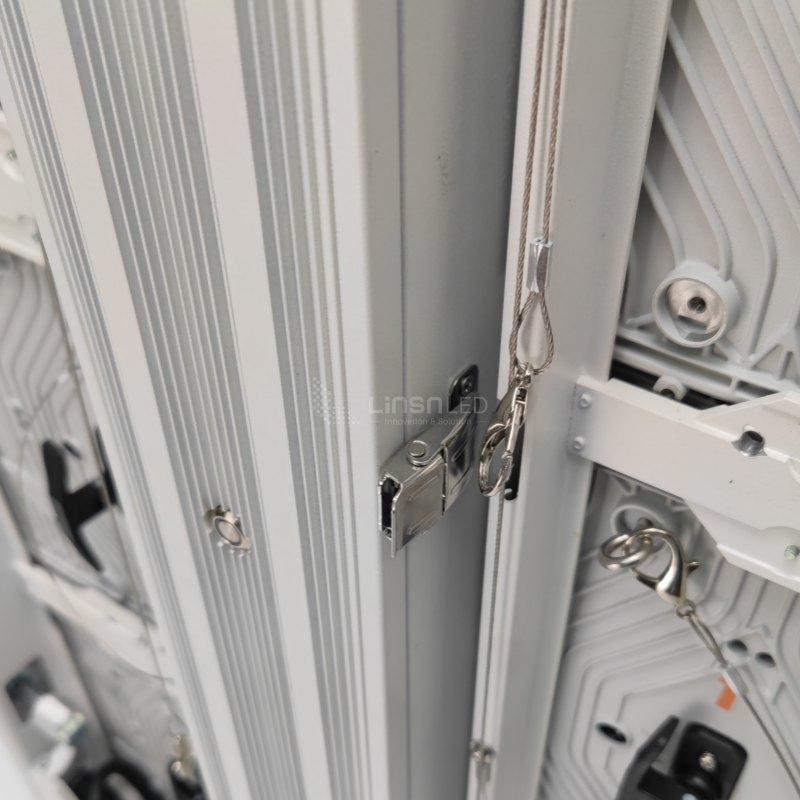

It incorporates Linsn's latest Common Cathode Aluminum technology and a unique panel design measuring 250*250mm, ensuring ultra-low heat and power consumption while providing an exceptional visual experience through its excellent cabinet design, which includes module layout, back cover, location tab, fast lock, and module handle.
Get Quotation
ES1000 Series Weight

Durable and Lightweight

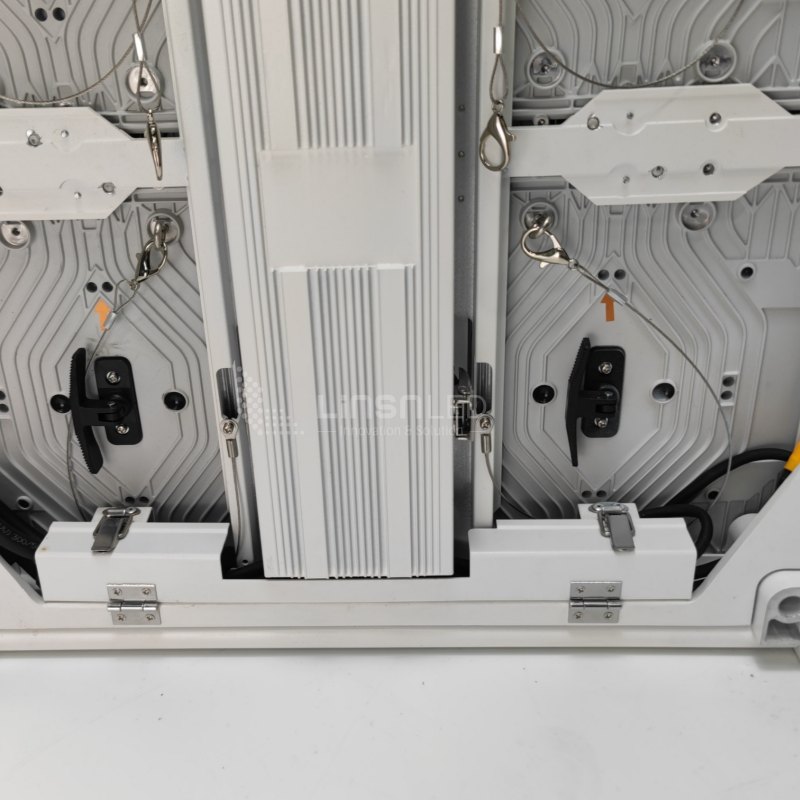

The full-sealed design and die-cast aluminum module chassis offer an IP66 protection rating for both the front and rear, making the display fully waterproof. Weighing just 16kg, the ultra-lightweight 500*1000mm cabinet is easy to operate.
Get Quotation
ES1000 Series Front and Rear Service

Convenient Front and Rear Access

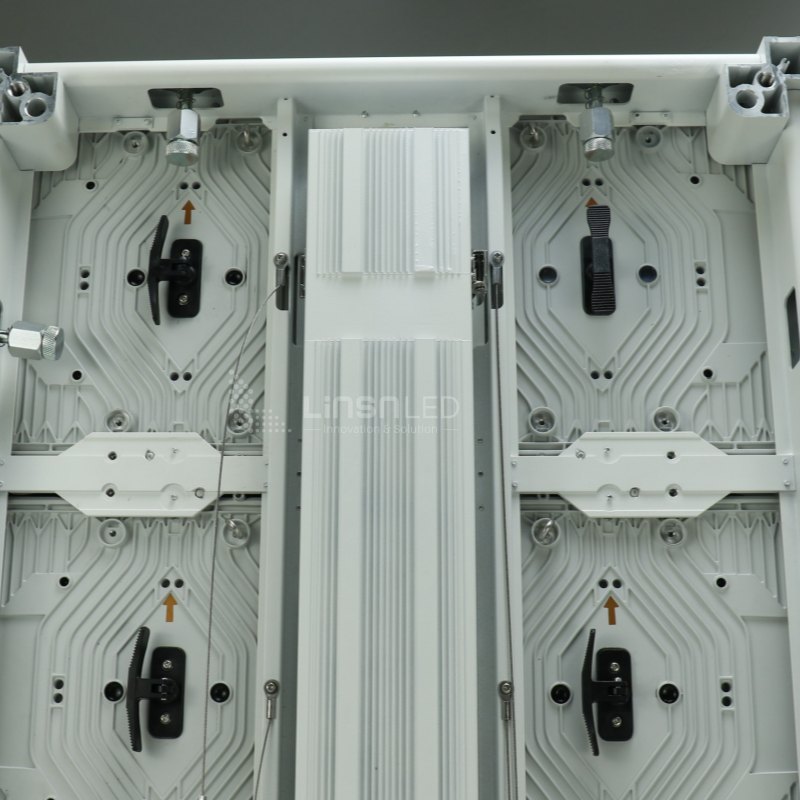

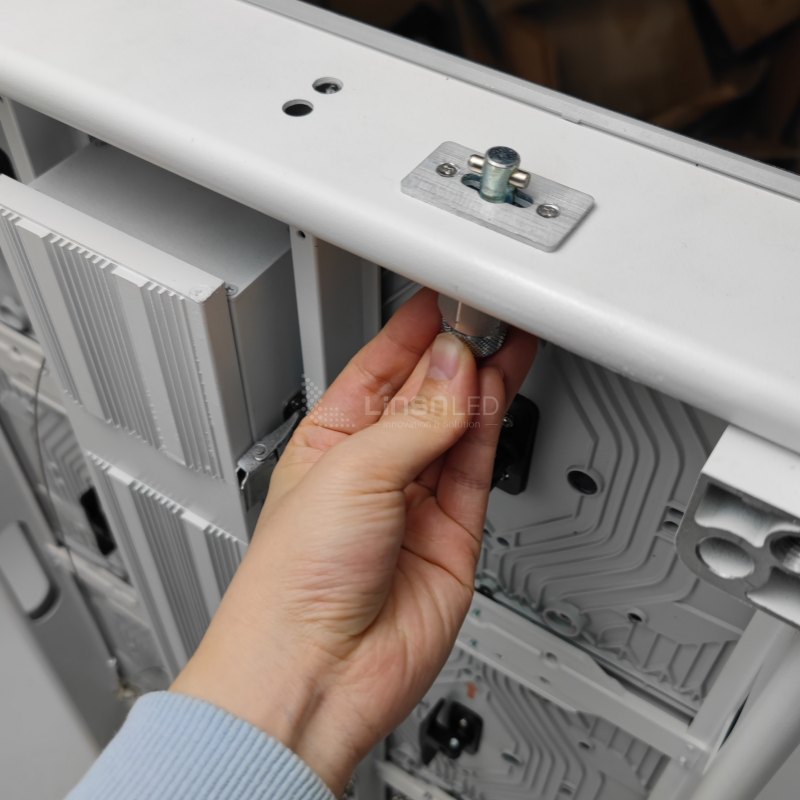

The dual-service feature allows for both front and rear maintenance, simplifying operation and module replacement.
Get Quotation
More Sizes of ES1000 Series

Various Size Options Available

Additional sizes, including 500*500mm and 500*750mm, are offered to better meet customer needs.
Get Quotation

Stunning Picture Quality with True Color

With a remarkable 5000:1 contrast ratio, the display significantly enhances the differentiation between light and dark, bringing out intricate details in every image.
Get Quotation

Product Videos

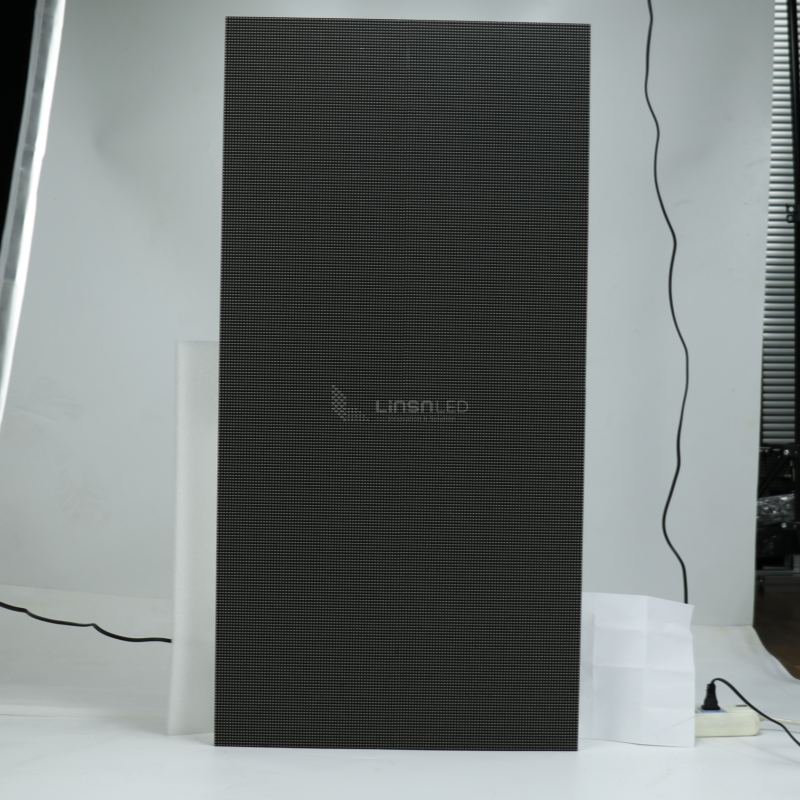

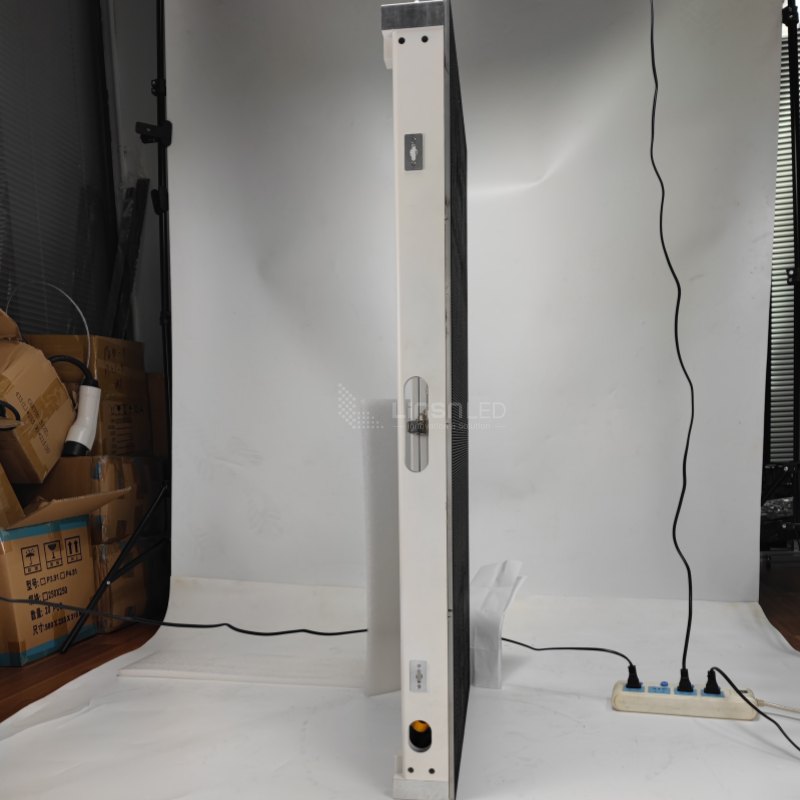

Product Images

Get Quote Now!

Specification

Pixel pitch 1.95mm 2.604mm 2.97mm 3.91mm
Pixels per cabinet 192×384 (HxV) 168×336 (HxV) 128×256 (HxV) 104×208 (HxV)
LED Type SMD1516 SMD1516 SMD1516 SMD1921
Scan Way 32S 24S 21S 8S
Brightness ≥4500 nits; ≥4500 nits; ≥4500 nits; ≥6000 nits;
Module size 250*250*18mm
Module resolution 128*128dots 96*96dots 84*84dots 64*64dots
Cabinet resolution /㎡ 512*512=262144dots 384*384=147456dots 336*336=112896dots 256*256=65536dots
Refresh rate 3840Hz
Hor. viewing angle 140° +/-5° (@50% brightness)
Vert. viewing angle 120° +/-5° (@50% brightness)
Grey Level 65536
Avg Power consumption 235 W/m² 235 W/m² 235 W/m² 235 W/m²
Max Power consumption 600 W/m² 600 W/m² 600 W/m² 650 W/m²
IP rating IP66
Cabinet 500 x 1000 x 83 mm (16KG), 500 x 750x 83 mm (12KG), 500 x 500 x 83 mm (8KG)
Cabinet Material Aluminum
Service Way Front and Rear
